• Model NO.：GS-3015
• Laser Technology：Laser Fusion Cutting
• Model No.：GS-3015
• Laser Type：Fiber Laser
• Working Area：3000*1500mm
• Laser Power：500W
• Laser Wavelength：1064nm
• Max. Cutting Speed：30m,Min
• Min.Line Width：0.15mm
• Max. Cutting Thickness：Stainless Steel:3mm, Carbon Steel:6mm
• Working Voltage：380V50Hz,60Hz
• Gross Weight：4000kgs
• Transport Package：Package by Plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：Glorystar
• Origin：Dongguan City, Guangdong Province, China
• HS Code：8456100090
• Production Capacity：500 PCS , Year

Basic Info.

Model NO. GS-3015 Laser Technology Laser Fusion Cutting Model No. GS-3015 Laser Type Fiber Laser Working Area 3000*1500mm Laser Power 500W Laser Wavelength 1064nm Max. Cutting Speed 30m/Min Min.Line Width 0.15mm Max. Cutting Thickness Stainless Steel:3mm, Carbon Steel:6mm Working Voltage 380V50Hz/60Hz Gross Weight 4000kgs Transport Package Package by Plywood Specification CE, SGS, FDA, Bureau, ISO Trademark Glorystar Origin Dongguan City, Guangdong Province, China HS Code 8456100090 Production Capacity 500 PCS / Year

Product Description

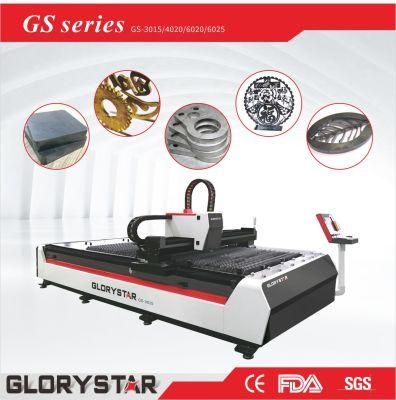

2000W Sheet Metal Laser Cutting Machine with CE

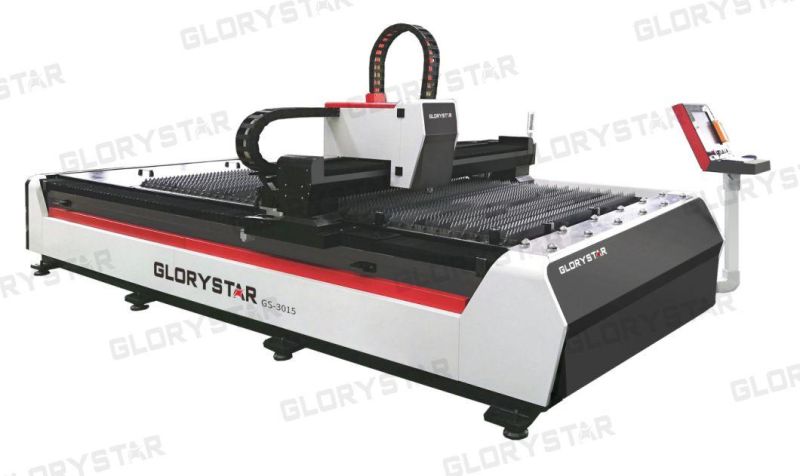

Machine Structure
The frame is precisely welded by argon arc, whole structure is gantry type: 600 ºC high temperature annealing treatment and 12 meters large CNC gantry fine milling ensure the frame regularly to  run for 20 years without deforming.
Equipped with the most advanced wireless handheld terminal, It can perform processing by remote control. The machine adopts imported Germany CNC system, high-performance AC servo motor, high-strength cast-aluminium cross girder.
It's a high-tech product integrated with advanced technology such as pneumatic, mechanic, photoelectric and CNC, etc.

Configurations
1. Imported Japanese servo motor synchro double drive syetem.
2. Imported Germany Precitec laser cutting head.
3. Imported French high precision gearbox.
4. Japanese high precision gear and rack.Precise laser cutting controlled system.

Applicable Materials
Especially suitable for contact-free cutting, hollowing or drilling of  metal sheets in 0.5mm to 14mm, Stainless steel, carbon steel, galvanized sheet, thin aluminum and thin copper etc. Fast, precise and energy-efficient.

Technical Data

Model	GS-3015
Working area	3000mm*1500mm
X axis travel distance	3030mm
Y axis travel distance	1520mm
Z axis travel distance	120mm
X/Y axis geometry positioning accuracy	≤0.05mm
X/Y axis repeat positioning accuracy	≤0.03mm
X/Y axis max.positioning speed	100m / min
X/Y axis max. Acceleration	1G
Cutting line width	0.1mm-0.5mm
Cutting roughness	Ra3.2-25.4um
Cutting capacity	0.5mm-14mm
Min.setting unit	0.001mm
Floor size	8800mm*3160mm
Main body dimension	8800mm*3160mm*2000mm
CNC system	CYPCUT
Display	17"LCD
Worktable	Exchangeable worktable
Worktable max.loading capacity	1000 kg
Unit weight	8 T
Overall installed electricity capacity	50 KVA
Phase	3
Rated Voltae	380V
Frequency	50 Hz
Total power protecting level	Ip54
