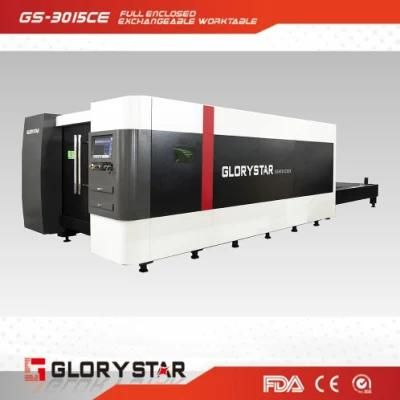

• Model NO.：GS-3015,GS-6015
• Laser Technology：Laser Fusion Cutting
• Type for Cutting Machine：Laser Cutting Machine
• Certification：EPA, CS, SGS, Ce, RoHS, ISO 9001:2008
• Automation：Automatic
• Condition：New
• Transport Package：Packed by Plywood
• Specification：CE, SGS, FDA, Bureau, ISO
• Trademark：GLORYSTAR
• Origin：China
• HS Code：84561090
• Production Capacity：5000PCS,Years

Basic Info.

Model NO. GS-3015/GS-6015 Laser Technology Laser Fusion Cutting Type for Cutting Machine Laser Cutting Machine Certification EPA, CS, SGS, Ce, RoHS, ISO 9001:2008 Automation Automatic Condition New Transport Package Packed by Plywood Specification CE, SGS, FDA, Bureau, ISO Trademark GLORYSTAR Origin China HS Code 84561090 Production Capacity 5000PCS/Years

Product Description

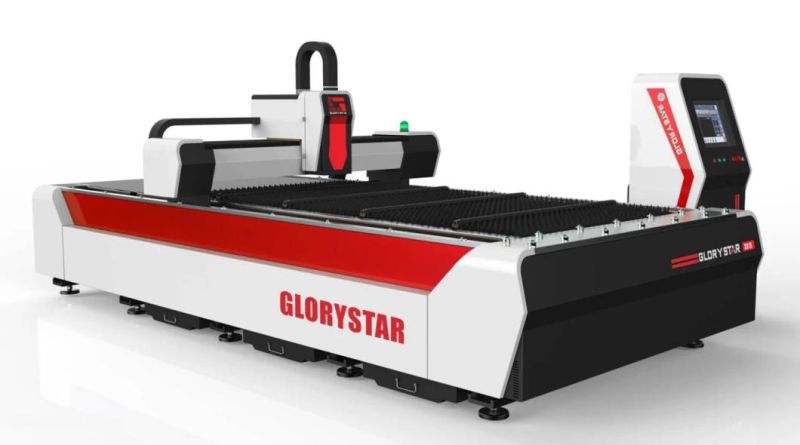

Fiber Metal Laser Cutter/ Laser Cutting Machine with Ce& FDA


Product Features

The frame is precisely welded by argon arc, whole structure is gantry type; 600 0C high temperature annealing treatment and 12 meters large CNC gantry fine milling ensure the frame regularly to run for 20 years without deforming.equipped with the most advanced wireless hand held terminal, it can perform processing by remote control. The machine adopts imported Germany CNC system,high-performance AC servo motor,high-strength cast-aluminum cross girder. It is a high-tech product integrated with advanced technology such as pneumatic,mechanic, photoelectric and CNC,etc.

Features
 Single axis positioning speed:80m/min, imported Japanese servo motor synchro double drive system, imported Germany Precitec laser cutting head,imported French high precision gearbox,Japanese high precision gear and rack, Precise laser cutting controlled system.

Applicable Materials
Especially suitable for contact-free cutting,hollowing or drilling of metal sheets in 0.5mm to 25mm,e.g.,stainless steel,carbon steel,galvanized sheet,thin aluminum and thin copper etc. Fast ,precise and energy-efficient.

Technical Data

Working area	3000mm*1500mm
X axis travel distance	3030mm
Y axis travel distance	1520mm
Z axis travel distance	120mm
X /Y axis geometry positioning accuracy	≤ 0.05mm
X/Y axis repeat positioning accuracy	≤0.03mm
X/Y axis max. positioning speed	100m/min
X/Y axis max. acceleration	1G
Cutting line width	0.1mm-0.5mm
Cutting roughness	Ra3.2-25.4um
cutting capacity	0.5mm-25mm
Min. setting unit	0.001mm
Floor size	8800mm*3160mm
Main body dimension	8800mm*3160mm*2000mm
CNC system	CYPCUT
Dispaly	17"LCD
Worktable	Exchange worktable
Worktable max. Loading capacity	1000KG
Unit weight	8T
Overall installed electricity capacity	50KVA
phase	3
Rated Voltage	380V
Frequency	50Hz
Total power protecting level	1p54

1. Mechanical parts: Working table, load&upload device, scrap collect device.

1.1 Working table (working bed).
We use 12mm square steel to weld the working table. Please note other companies all use 10mm square steel. All the cutting bed had been handled by vibration aging treatment to eliminate the prestress force of mechanical parts.

1.2 Load & upload device.
We use rolling balls and round bar for material up and load. Thus the surface of cutting material will not be scratched by strip working table. Round bar can make material up and load more easily for operator. This kind of hominization design can save lots of manual cost.

1.3 Scrap collective device.
We have drawer scrap collective device to make it easier for your to find the cutting piece. What's more, we have automatic crawler belt to transmit the cutting piece.

2. Drive parts: Server motor, Lead Screw and Liner Guide Way.

2.1 Servo motor.
Servo motor is the key part which controls laser head moving. We use Japan Panasonic A5II series servo motor.

2.2 Lead Screw and Liner Guide Way.
Lead Screw is the most key moving parts of mechanical transmission. The main factor which decided accuracy of screw is lead pitch and surface hardness. We use TBI from Taiwan, and the HIWIN Liner Guideway.

3. Outside light path: The chamber of laser resonance, optical lens, laser cutting head

3.1 Chamber of laser resonance.
We adopted double xenon lamp structure to make energy power output high. We are the only manufacturer that has full sealed gold chamber with practical application.

3.2 Optical lens.
We adopt imported optical components- focus lens from America, which is spherical mirror can produce strong laser beam and with high conversion efficiency from electrical to optical.

3.3 Laser cutting head.
We use OEM laser cutting head which has improved the technology of PRECITEC GERMANY.

4. Electric parts: Electronic Control cabinet, it's very convinient for transportation and connection.

5. Software: Cutting control software, picture processing software

5.1 Automatic edge finding and two points location function. Even if the plate is not at the right position when putting on working table, you do not have to worry that the picture you cut is incline.

5.2 Kerf compensation function. When you need to cut delicate workpiece, the software will take the width of laser beam into consideration and calculate this value during the process of cutting then make some compensation.

5.3 Frog-leap function. During the process of cutting, when finish cutting one piece and moves to another place, the laser head jumps up and down very fast, just like frog. This can accelerate the empty traveling speed of laser head and save working time.

5.4 Breakpoint resume. When there is suspend during cutting press, the laser head can resume cutting from the point that stops.

5.5 One bottom setting. When you input one picture, the software will set all the cutting parameters like pulse width, frequence...Automatically.

5.6 Expense calculation. You can try to cut 1m line and put in the cost, then the software will calculate all your processing cost according to it's cutting length and path.

5.7 Oxygen cutting, air perforate. Oxygen cutting may lead to one problem- hole popping when start cutting each time. When you need to cut with oxygen and want to dig very small hole, the hole will not be round and smooth because of hole popping.

6. Water chiller
Our latest water chiller has water circulation filter system. It can decrease water change frequence into 1/6 compare with others.

After-Sale Serice
We can supply engineer go to your country to help you install machine and do training after-service together.
