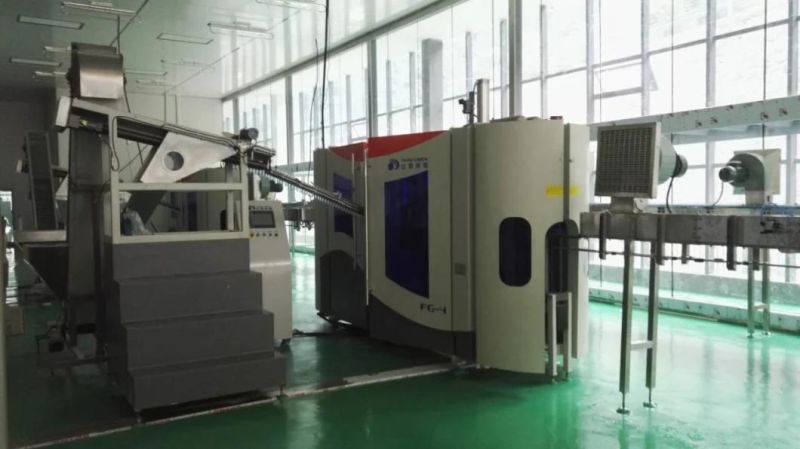

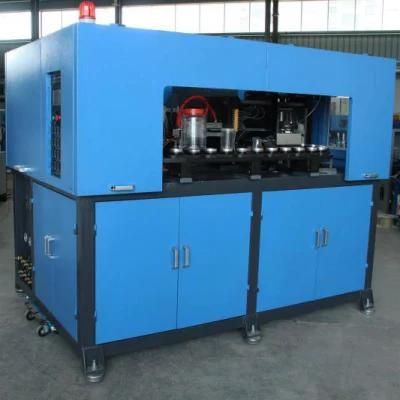

High Speed 4 Cavity Blowing Machine/ Automatic Blow Molding Machine
Qingdao Kaier Xiang Diamond Tools Co., LtdBase Info
Description

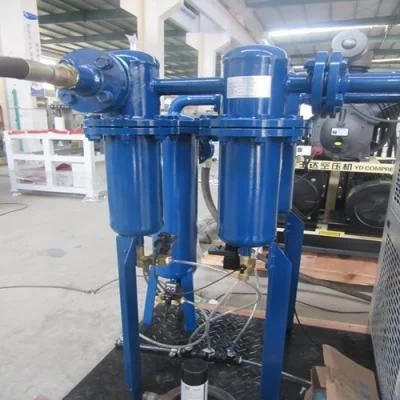

Main ParameterModel FG-4 Capacity Depend on bottle design 7200PCS/H Applicable Preform Height <330mm Neck 20mm-25mm Applicable Bottle Neck 20-25mm Volume Max.2Liter Height Max.328mm Diameter Max.105mm Electric consumption Install power 51kw Heating oven powder 46kw Heating Oven operating power 22kw Air consumption Pressure 6m3/min 3.0MPa Capacity 6m3/min 3.0MPa Mold Chiller Pressure 4-6Bar Temperature 6-13ºC Flow 45L/min Oven Chiller Pressure 4-6Bar Temperature 6-13ºC Flow 26L/min Machine Dimension L*W*H 3300*900*2300mm Weight 3500kg Capacity:7200BPH@500ml Max.Volume:2 Litter
Total Size:
Blowing Main machine:3.6*1.3*2.3m
Sorting machine:2*1.5*1.5m/Loader:3*1*1.5m
Main electricsElectric part PLC Japan Mitsubishi Servo System Japan Panasonic Frequency inverter Japan Mitsubishi Operating system Japan Mitsubishi Touch screen Japan Mitsubishi Blowing Valve Japan Parker Reducing Valve German DURAY Note:All the electrical components adopts CE, UL, CCC approved international

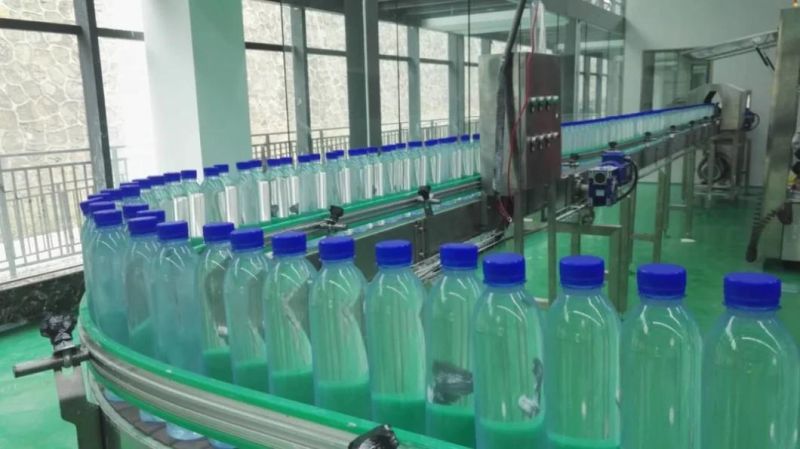

Advanced high-tech product
I.Brief Introduction:
FG4 is the new generation of linear blowing machine.Comnpared with traditional blowing machine, It has 3 improvement:
1)High speed:China first blowing machine whose single mold speed can reach 1800 BPH
2) Energy saving:It has only 2 lamp boxes, at least 20000USD can be saved per year
3) High Reliability:Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor.
II.Technical Features:
1.Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.
2.Minimize distance of heating heads,maximize the heating efficiency.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3.Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4.Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
