1600mm PP Melt Blown Production Equipment for Making Filter Cloth
Ningbo Easyget Co., Ltd.Base Info
Description

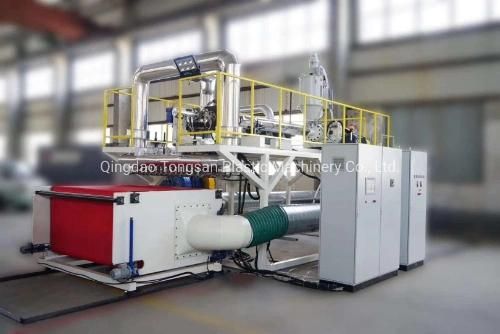

Tongsan PP melt blown machine make high quality fabric1 set

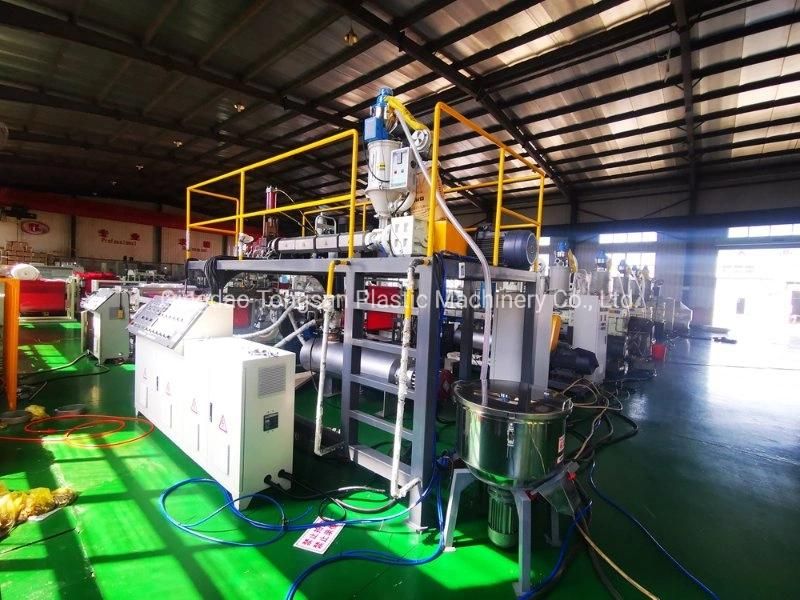

1200mm PP melt blown fabric making machine Pictures1, Material auto mixing and feeding machinethe mixer is fully made by stainless steel.the auto feeding is by vacuum suctionthe hopper with drying fuction

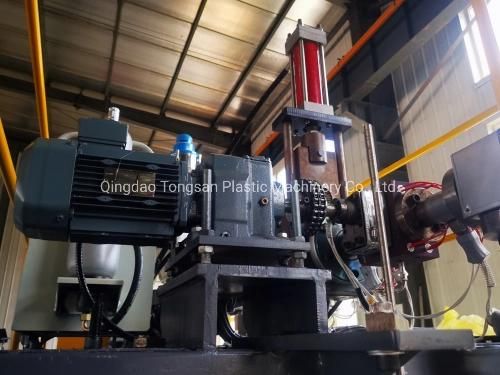

2, SJ90/30 Extruder machineSpecial design screw for PP melt blownAluminum high quality heaterspecial water cooling design for feeding zone

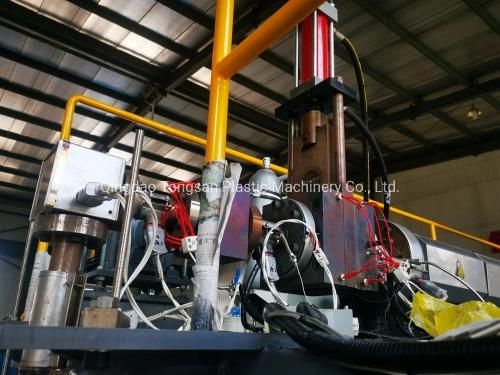

3, hydraulic screen changerautomatic screen changerno leaking material
4, melt metering pumpSpecial designed for PP melt blown fabric materialAccurate flow control

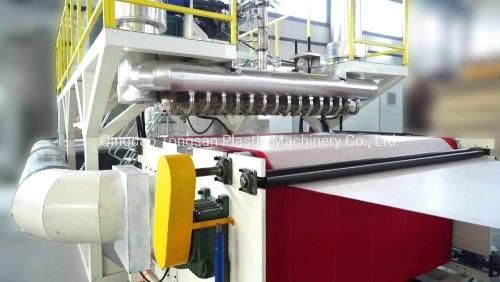

5, Die head and Spinneret platehigh quality mold materialhole of Spinneret: 0.25mmConnection type: down sprayingFabric width: 1200mm
6, Fabric forming machine Forming type: Mesh belt formingWidth of belt: 1000mmMachine height adjustment: motor liftingMachine moving method: wheels moving

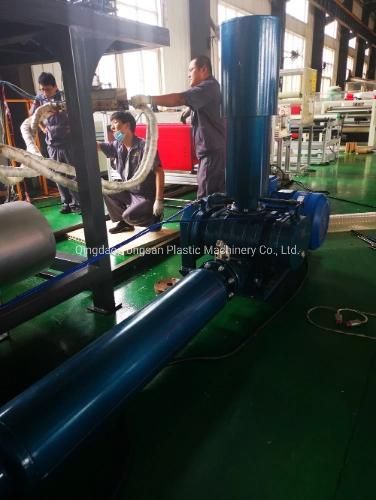

7, Roost blowerStrong power: 37 KWLow noise with noise insulation systemSafety operation with pressure adjustment

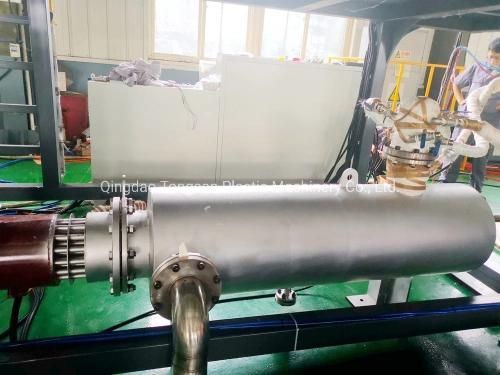

8, Air heating deviceFast heating system: 60kwTemperature control system: automaticBig air tank with heat insulation

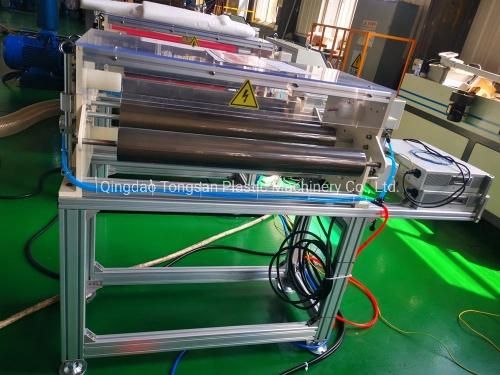

9, electrostatic devicestrong electrostatic: 100KVDouble faces processingdouble times for each face
10,auto online split cutting machineOnline automatic splittingsplitting width: adjustablequantity of knives: 3-4 pcs11, winding machinemax winding width: 800mmmax winding diameter: 500mmwinding type: automatic windingeasy change winding rolls
12, Electric control systemABB inverter controlSiemens contractorOmron temperature controlSiemens PLC system is optionalWe have many sets of PP melt blown fabric making machines in stock for sale, all has tested to reach PFE95+ PP melt blown fabric applicationMelt-blown non-woven fabric is a kind of rapid development in the production of non-woven fabric. It is known as the one-step polymer production process with the shortest process abroad. Its products have many obvious advantages such as high filtration efficiency, low resistance, flexibility, and the network can bind and bond itself. Therefore, it is widely used in various countries, and its main uses are medium-efficiency and sub-efficiency filtration, including air filtration and acid destruction. Liquid filtration food hygiene filtration, industrial dust mask manufacturing, etc., in addition, can also be used as medical and hygiene products, industrial precision wipes, thermal insulation materials, oil-absorbing materials, battery separators, imitation leather base cloth and so on. In many ways, its performance is better than similar products of traditional textiles. With the continuous development of post-processing technology, the application fields of melt-blown non-woven fabrics will be more extensive.1. Application in the field of air purification Used in air purifiers, as a sub-efficient and efficient air filter element, and for coarse and medium-efficiency air filtration at large flow rates. It has the advantages of low resistance, high strength, excellent acid and alkali resistance, corrosion resistance, stable efficiency, long service life and low price. There is no fluff in the gas purified by the filter.2. Application in the field of medical and health The dust-proof mouth made of melt-blown cloth has small breathing resistance, no sulking, and the dust-proof efficiency is as high as 99%. It is widely used in hospitals, food processing, mines and other workplaces that require dust and anti-bacterial products after special treatment. The anti-inflammatory and analgesic film made has good breathability, no toxic and side effects, and is easy to use. SMS products combined with spunbond cloth are widely used in the production of sanitary products such as surgical clothes and hats.
3. Liquid filter material and battery separator Polypropylene meltblown cloth is used to filter acidic and alkaline liquids, oil, oil, etc. It has very good performance, has been regarded as a good separator material by the battery industry at home and abroad, and has been widely used, not only reduces battery costs, The process is simplified, and the weight and volume of the battery are greatly reduced.4. Oil-absorbing materials and industrial wipes Various oil-absorbing materials made of polypropylene melt-blown cloth can absorb oil up to 14-15 times its own weight. It is widely used in environmental protection projects and oil-water separation projects. In addition, it can be used as a clean material for oil and dust in industrial production. These applications have fully utilized the characteristics of polypropylene itself and the adsorption of ultrafine fibers produced by meltblown.5. Warm materials The average diameter of melt-blown ultrafine fibers is between 0.5 and 5m, the specific surface area is large, a large number of fine pores are formed in the cloth, and the porosity is high. A large amount of air is stored in this structure, which can effectively prevent heat loss, and has excellent thermal insulation, and is widely used in the production of clothing and various insulation materials. Such as leather jackets, ski shirts, cold clothes, cotton village cloth, etc., it has the advantages of light weight, warmth, no moisture absorption, good breathability, no moldy rotten. FAQ
1, DO YOU PROVIDE OEM SERVICE?
we accept OEM order to design the machine according to customer's special requirements.
2, HOW CAN I GET THE TECHNICAL PARAMETERS?
Please contact us for sending you detailed quotation with technical parameters
3, WHAT IS THE WARRANTY TERMS?
3.1 WARRANTY PERIOD: 12 MONTHS, STARTING FROM THE FIRST DAY OF RUNNING MACHINES IN CUSTOMER'S WAREHOUSE
3.2 SELLER SHALL GRANT: SERVICES AND SPARE PARTS, FREE-OF-CHARGE SERVICE THROUGHOUT THE ENTIRE EQUIPMENT WARRANTY PERIOD.
3.3 LIFELONG SERVICE: THE SELLER SHOULD PROVIDE LIFELONG SERVICE FOR THE SOLD GOODS, THE BUYER PAY FOR NEEDED SPARE PARTS AFTER THE 12MONTHS WARRANTY TERMS.
4, WHAT IS THE DELIVERY CONDITIONS?
4.1 DELIVERY CONDITION: FOB QINGDAO PORT.
4.2 DELIVERY TERM: WITHIN 45 WORKING DAYS AFTER RECEIPT OF ADVANCED PAYMENT, THE SELLER SHOULD INFORM THE BUYER TO DO INSPECTION. THE SELLER SHOULD FINISH PACKING OF GOODS AND READY FOR SHIPMENT WITHIN 15 WORKING DAYS AFTER THE SELLER RECEIPT THE FULL PAYMENT.
4.3 SUPERVISION OF LOADING:THE SELLER SHOULD INFORM THE BUYER EXACTLING LOADING TIME, THE BUYER SHOULD ARRANGE FOR SUPERVISION OF LOADING.
5, WHAT IS THE PAYMENT TERMS?
5.1 INSTALLMENT I: 30% OF TOTAL PAYMENT TO BE PAID AT ADVANCE
5.2 INSTALLMENT II: THE BALANCE 70% OF TOTAL PAYMENT TO BE PAID BY TT OR LC AT SIGHT
6, HOW TO DO THE INSPECTION WORK BEFORE SHIPMENT?
WHEN THE MACHINE FINISHED, THE SELLER SHOULD INFORM THE BUYER TO DO INSPECTION BEFORE SHIPMENT, THE SELLER GUARANTY GOOD PERFORMANCE OF ALL THE SOLD GOODS.THE SELLER UNDERTAKE THE MATERIAL COST FOR THE MACHINE INSPECTION IN SELLER'S FACTORY. THE BUYER SHOULD COME TO SELLER'S FACTORY TO DO THE INSPECTION WORK, OR THE BUYER COULD ENTRUST ANY THIRD PARTT TO COME TO SELLER'S FACTORY TO DO THE INSPECTION WORK.
7, HOW TO DO THE INSTALLATION AND EQUIPMENT COMMISSIONING?
IF THE BUYER REQUIRES, THE SELLER SHOULD SEND TECHNICIAN TEAM TO BUYER'S FACTORY FOR INSTALLATION AND TESTING THE WHOLE LINE, AND THE BUYER SHOULD UNDERTAKE THE WHOLE FOOD/PLACE AND ROUND TICKETS (AIRPLANE, FOOD, HOTEL, AND SO ON), AND PAY SALARY TO ENGINEER FOR 80 USD/DAY/ENGINEER.
PS: Above Items are discussable according to customer's special requirements.
