• Model NO.：KQ 25Mpa
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：Yogurt Ice Cream Homogenizer Price Milk Homogenize
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar

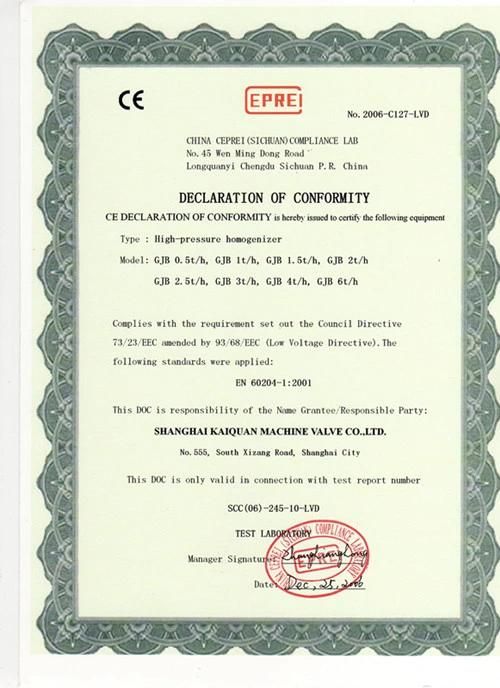

• Certificate：Ce Certificate
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：3phases
• Homogenizersize：Depending The Capacity
• Orign：Shanghai China
• Packing：Wooden Box
• Delivery：10-15 Days After Get Your Advance Payment
• MOQ：1set
• Stage：Two Stage
• Spare Parts：4set , 5set
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ 25Mpa Application Milk, Dairy, Milk, Juice, Beverage Customized Customized Name Yogurt Ice Cream Homogenizer Price Milk Homogenize Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Certificate High Pressure Homogenizer Customized Electricity Motor Motor 3phases Homogenizersize Depending The Capacity Orign Shanghai China Packing Wooden Box Delivery 10-15 Days After Get Your Advance Payment MOQ 1set Stage Two Stage Spare Parts 4set / 5set Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

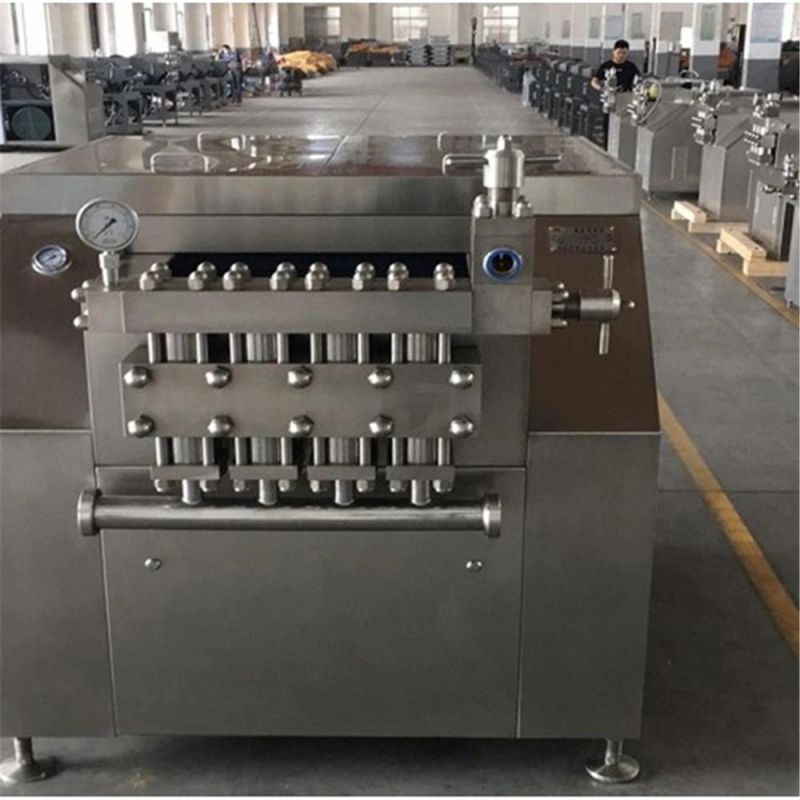

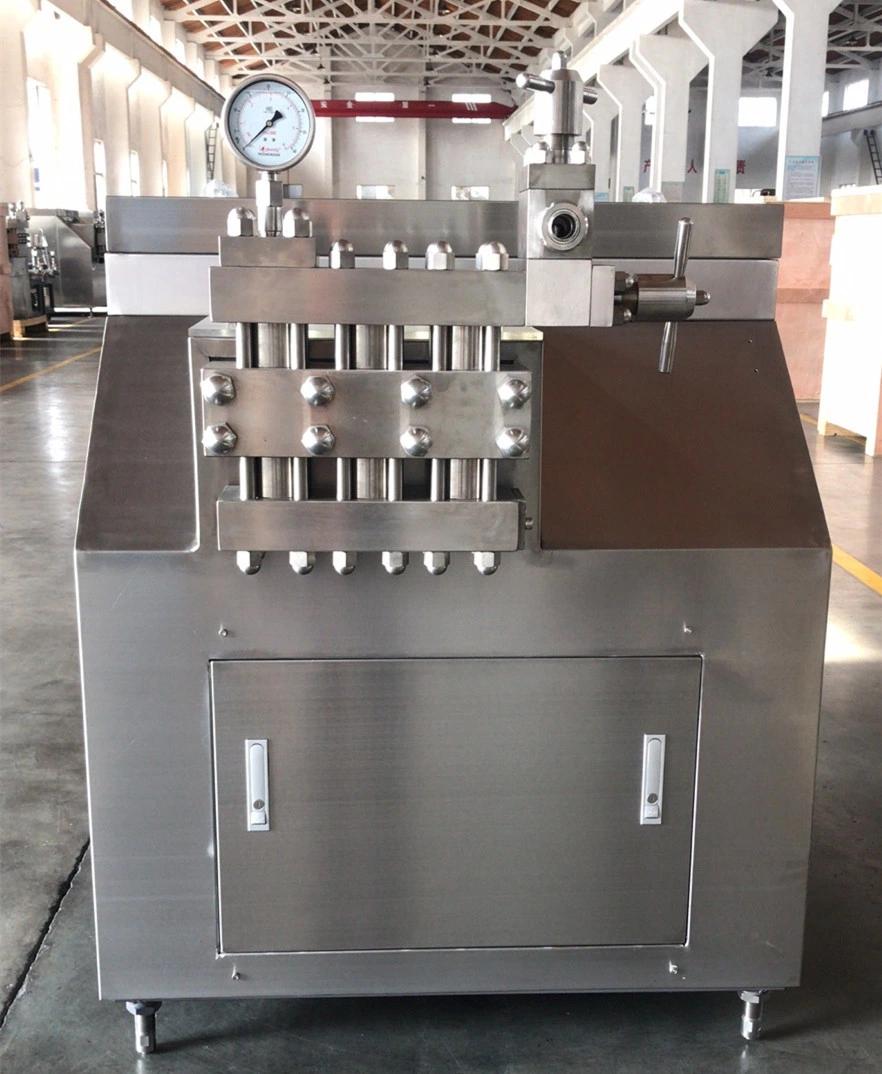

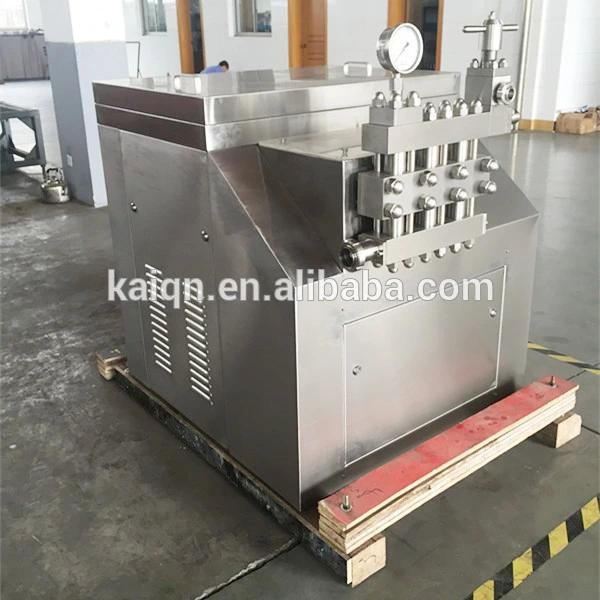

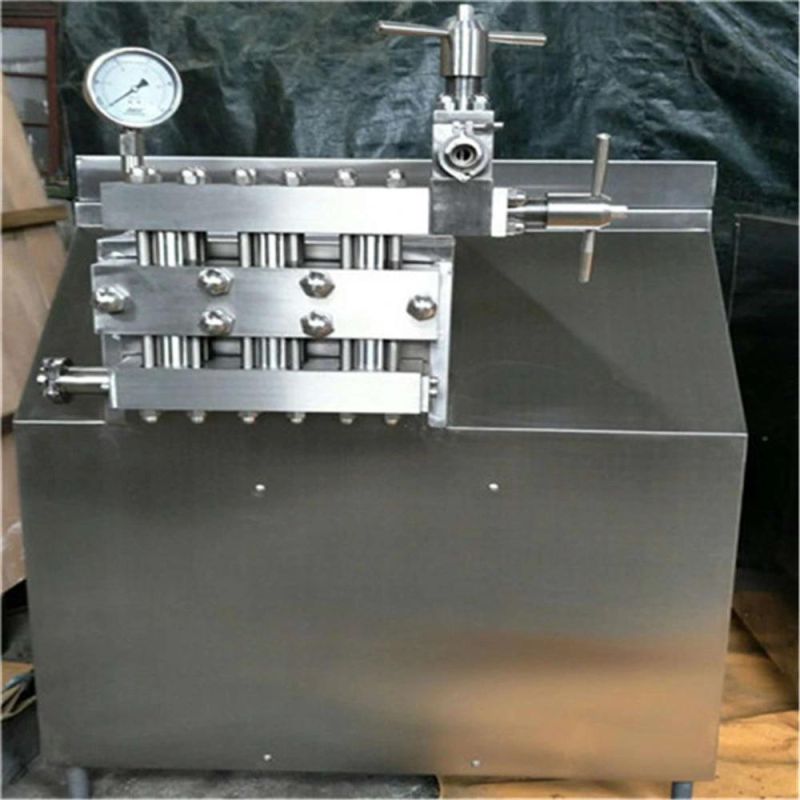

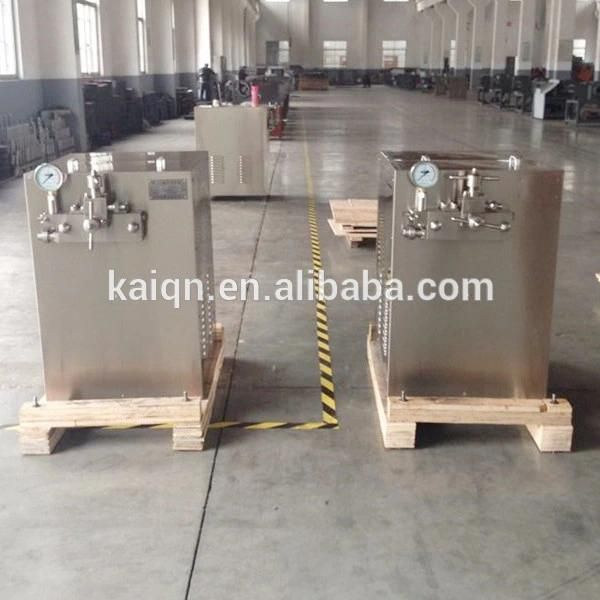

 Yogurt Ice Cream Homogenizer Price Milk Homogenizer






Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )

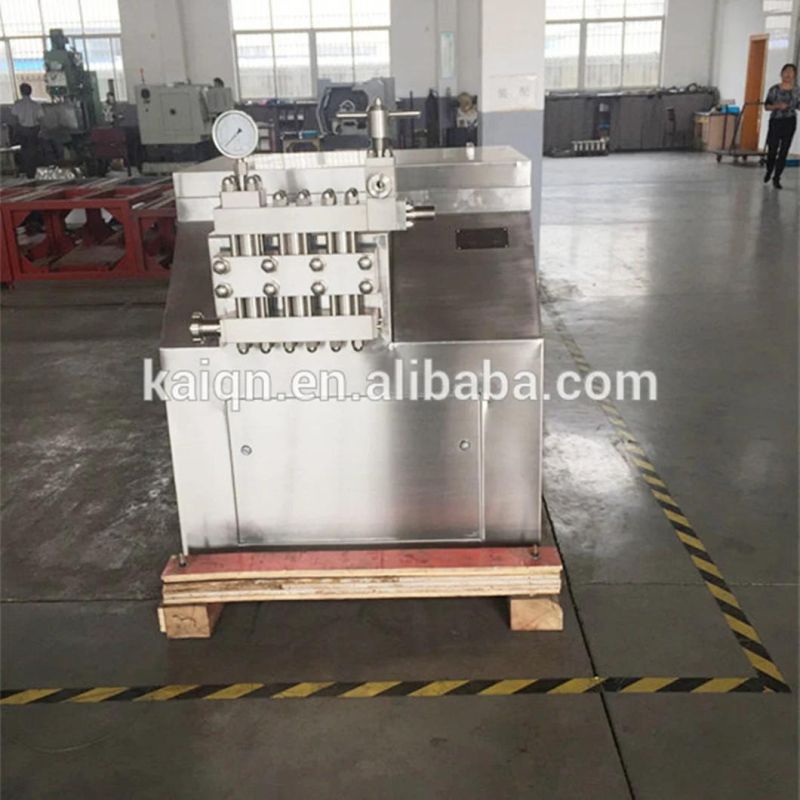

Yogurt Ice Cream Homogenizer Price Milk Homogenizer
