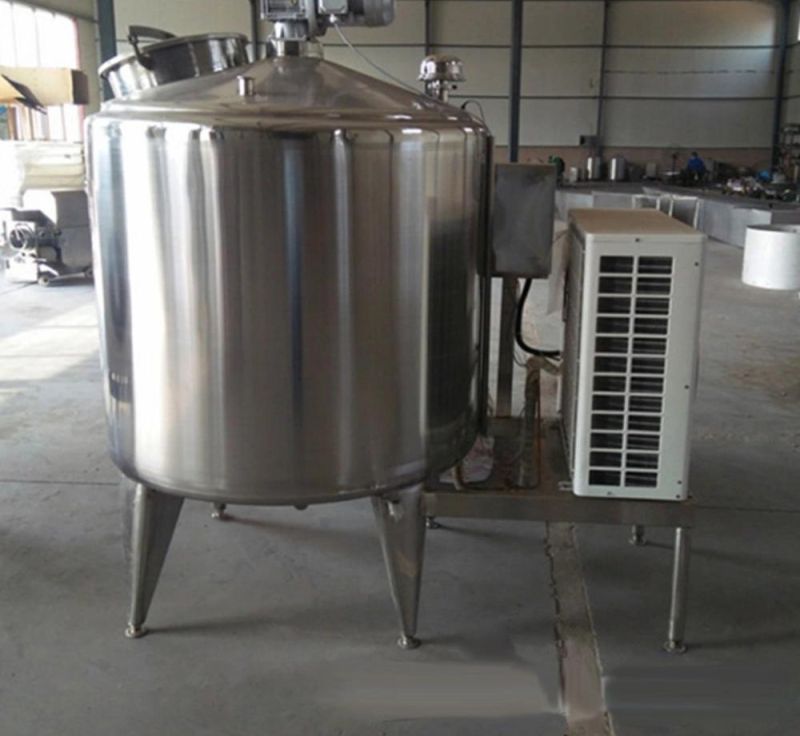

Milk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat

NINGBO HAISHU JUDIN PACKING PRODUCTS CO., LTD.
  • Process：Frozen and Chilled
  • Power Source：Electric
  • Certification：CE
  • Automatic Grade：Automatic
  • Application：Milk, Yogurt
  • Customized：Customized

Base Info

  • Model NO.：BMC-6000
  • Name：Milk Vat Milk Cooling Vat Milk Storage Vat Chill
  • Milk Chilled Tank：1000L to 12000L
  • Milk Cooling Tank Compressor：USA Copeland
  • Refrigerant：R404,R22
  • Milk Tankapplication：Cooling and Storage Fresh Milk
  • Milk Transportation Tank：Also Provided
  • Milk Vat：with Air Compressor
  • Warranty：2 Years
  • Delivery：10 Days
  • MOQ：1set
  • Transport Package：Wooden Box
  • Specification：SANITARY, FOOD GRADE
  • Trademark：KAIQUAN
  • Origin：Shanghai China
  • HS Code：8479820090
  • Production Capacity：1000 to 10000L

Description

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price: FOB SHANGHAI3000USD3600USD6000USD7100 USD9300 USD10200USD14700 USD18000USDMilk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat
Milk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat

Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
Milk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat
Milk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat

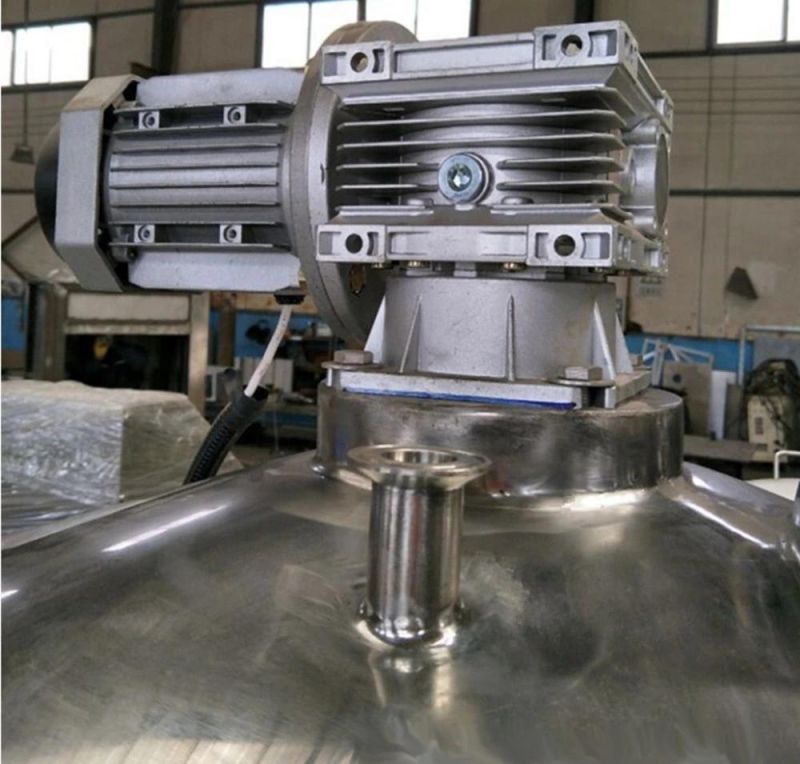

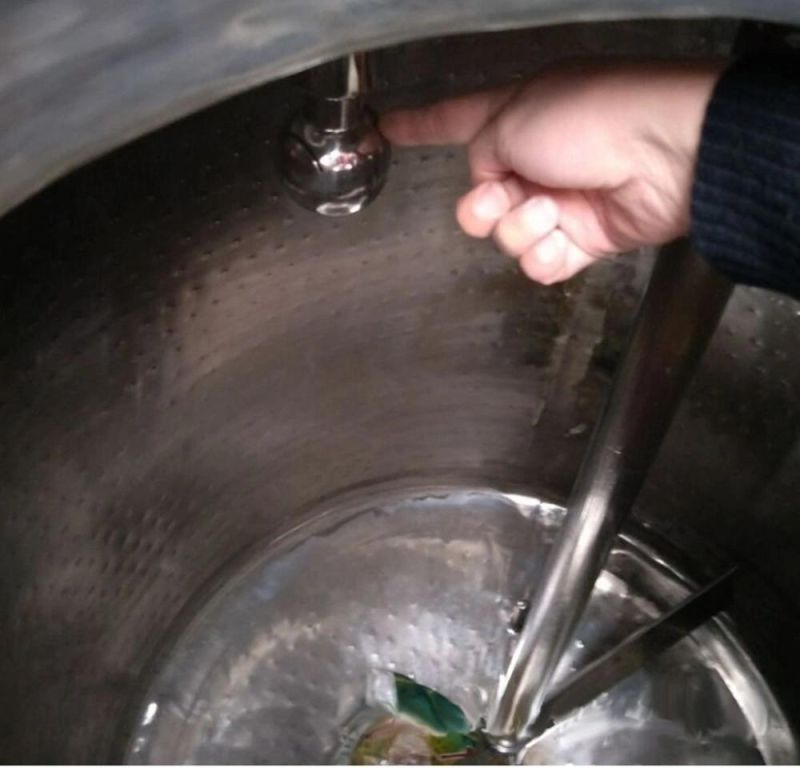

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.
Milk Vat Milk Cooling Vat Milk Storage Vat Chilling Vat .
