• Model NO.：KQ-AT
• Voltage：380V
• Customized：Customized
• Function：Ice Cream Aging Tank Water Cooling Tank Maturatio
• Agitator Speed：36rpm, 48rpm, 960rpm
• Stainless Steel Degree：SS304,SS316
• Heating and Mixing Tank：for Heating and Mixing Liquid, Liquid and Powder
• Delivery：10 Days
• Packing：Wooden Box
• MOQ：1 Set
• Application：Ice Cream Production
• Factory：Shanghai China
• Certification：ISO
• Voltage ,Hz ,Phase：Make It to Your Order
• OEM：Yes
• Motor Brand：Siemens ,ABB ,China Brand
• Working Life：More Than One Year
• Spare Parts：Available
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai China
• HS Code：8479820090
• Production Capacity：200L To30000L

Basic Info.

Model NO. KQ-AT Voltage 380V Customized Customized Function Ice Cream Aging Tank Water Cooling Tank Maturatio Agitator Speed 36rpm, 48rpm, 960rpm Stainless Steel Degree SS304,SS316 Heating and Mixing Tank for Heating and Mixing Liquid, Liquid and Powder Delivery 10 Days Packing Wooden Box MOQ 1 Set Application Ice Cream Production Factory Shanghai China Certification ISO Voltage ,Hz ,Phase Make It to Your Order OEM Yes Motor Brand Siemens /ABB /China Brand Working Life More Than One Year Spare Parts Available Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai China HS Code 8479820090 Production Capacity 200L To30000L

Product Description

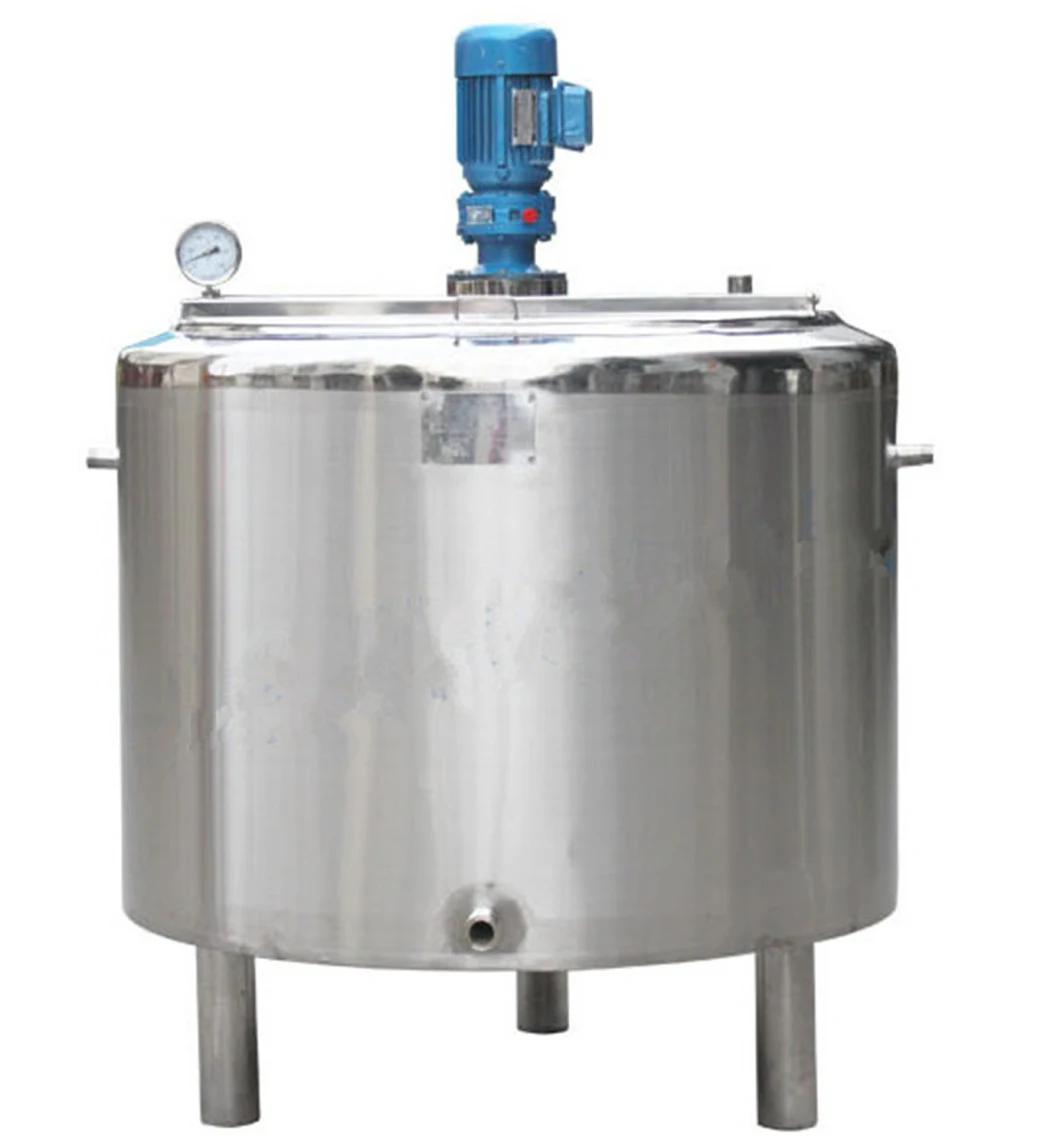

Ice Cream Aging Tank Water Cooling Tank Maturation Tank




Three-layered cooling and heating tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.
Ice cream Aging Tank, Water Cooling Tank

1

sugar mixing tank

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

Material: Ss304/Ss316
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
*PU INSULATION WALL: 50MM
* Outer shell thickness: 1.5 mm

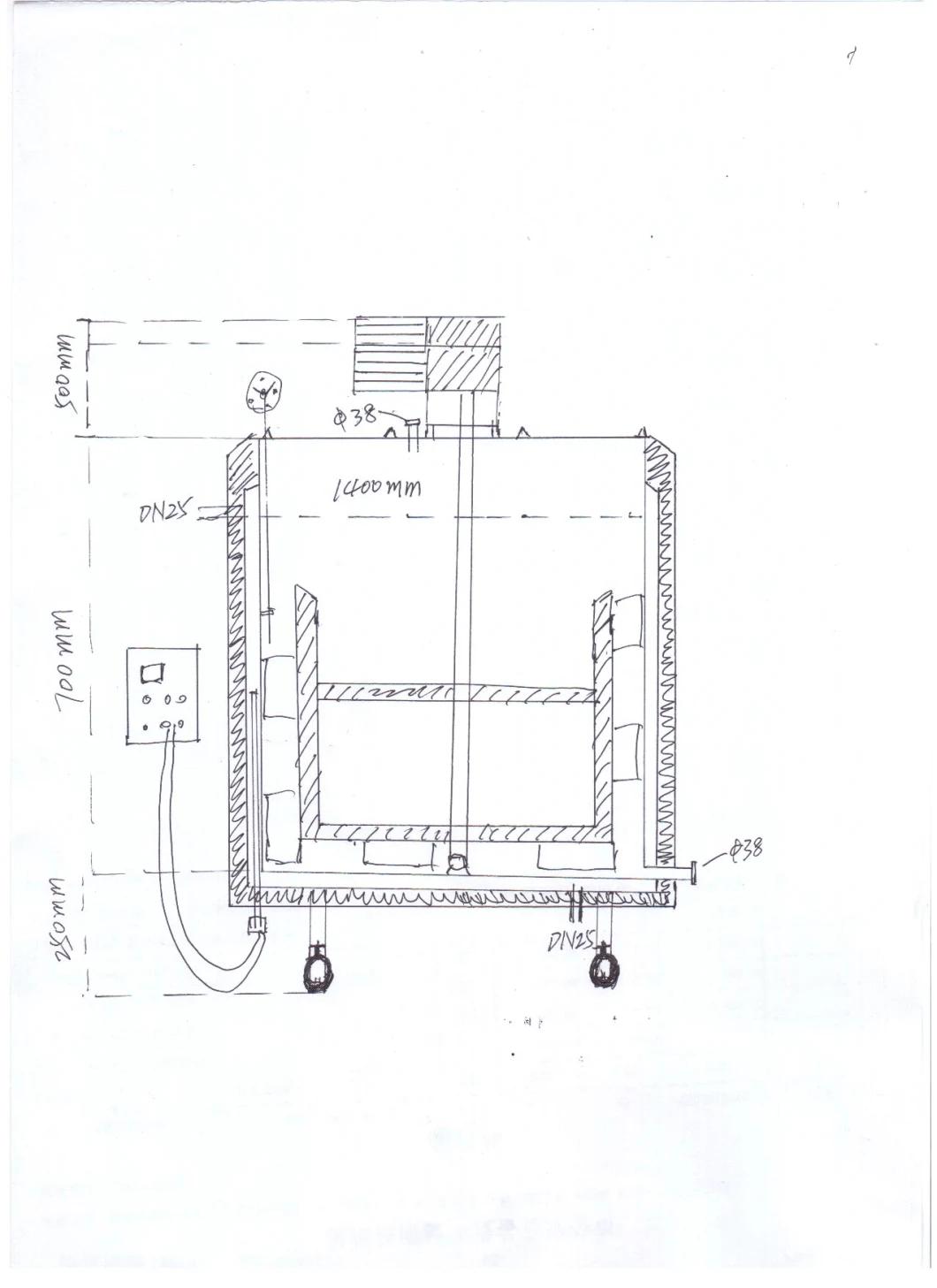

* Appearance: Ellipsoidal head top and down manhole and pipe will be as the picture you sent to us
Ice Cream Aging Tank Water Cooling Tank Maturation Tank
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor

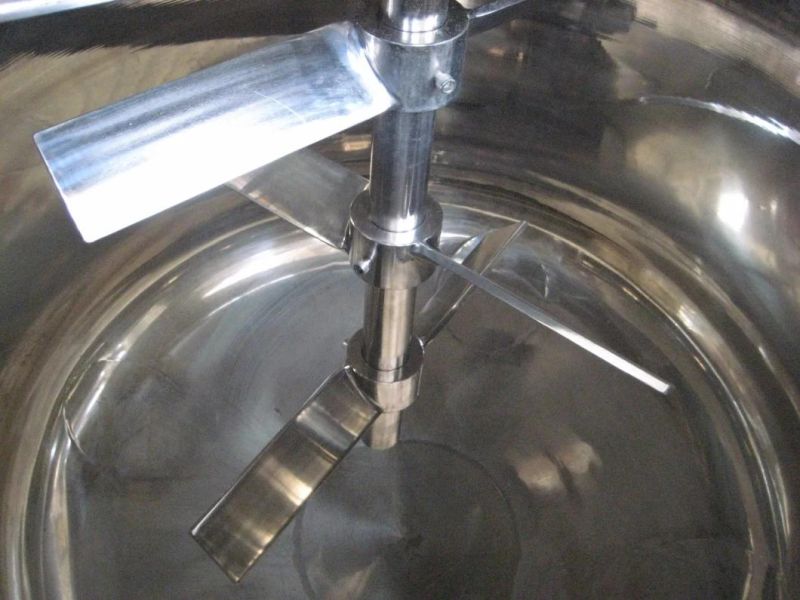

Agitator blending tank
1. More than 10 years experience
2. Capacity: 100-5000L
3. Manufacturer
4. Custom-made solution
Remarks
It can be made according to special requirements of customers.
We can design the products according to your special request.
Ice Cream Aging Tank Water Cooling Tank Maturation Tank
