Basic Info.

Model NO. JS600 SERIE Bottle Liter 0.2-10L Mold Material Iron /Steel /Aluminum Machine Cavity 1 Machine Output 600-900PCS/H Transport Package Wooden Box Specification CE. SGS Trademark JS Origin Taizhou, China HS Code 84773090

Product Description

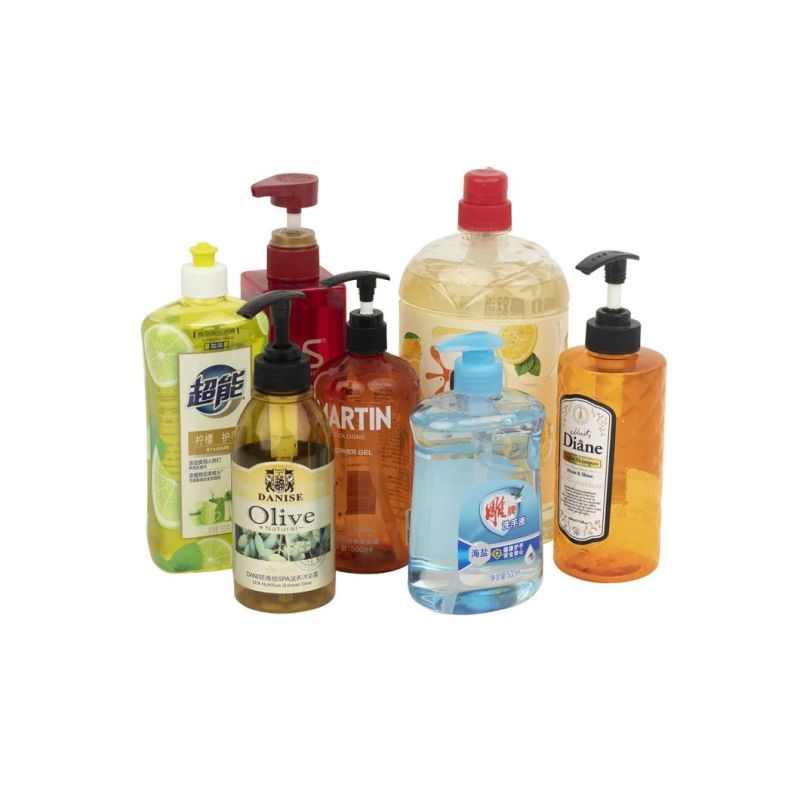

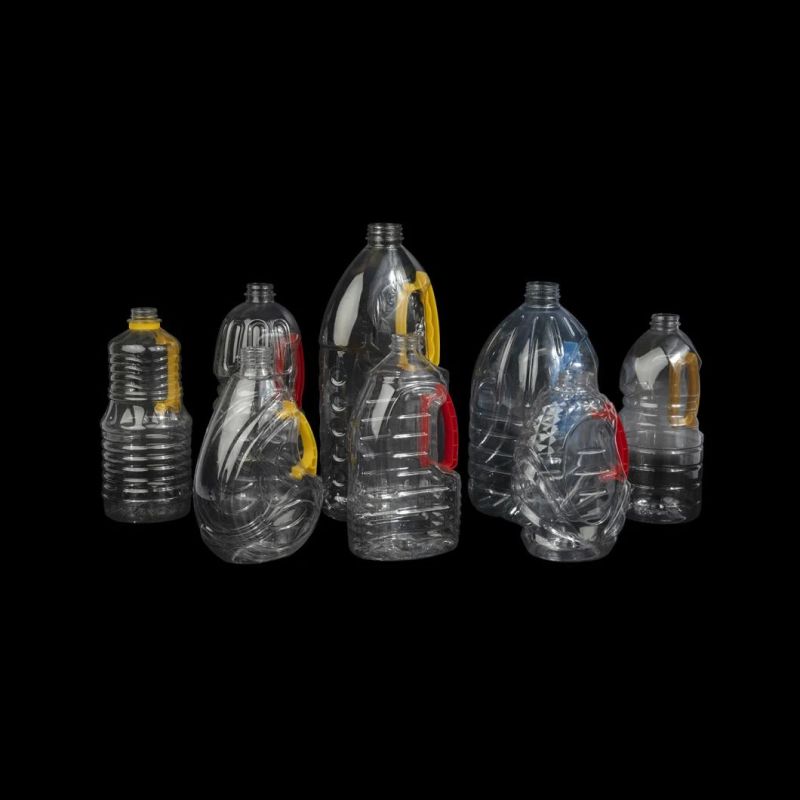

Our factory bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipes are used in the machine. It has high pressure protection with the feature of precisely removing mould. It is easy to maintain .It is the equipment for producing PET bottles.
MACHINE  PROPERTIES:
  1. FEATURES TOUCH SCREEN COMPUTER OF TAIWAN'S WEILUN , OPERATE CONSISTENTLY AND SIMPTY .
   2.FEATURES PNEUMATIC ELEMENTS OF GERMAN FESTO AND JAPAN SMC.
   3.SPECIALLY DESIGNED FOR ENERGY-SAVING PURPOSE , MECHANICAL  UNIT IS COMPACT AND SOUND.
   4.FEATERES TROUBLW ALERT AND DIAGNOSTIC UNITES TO ALLOW EASY MAINTENANCE.
   5.ENVIRONMENTALLY FRIENDLY DESIGN, NONTOXIC CONVEYOR BELT TO CARRY PREFORMS .

Technical Reference
Machine Model		JS600	JS600J	JS600B	JS600C	JS600D
Pcs/h		600-900	600-900	500-900	350-700	300-500
Bottle volume	L	0.2-5	0.2-5	0.2-5	1-10	10-20
Prefrom inner diameter	MM	15-120	15-120	63	55	110
Max.bottle diameter	MM	20-180	20-180	20-180	20-210	300
Max.bottle height	MM	350	350	350	450	480
Cavity	PC	1	1	1	1	1
Main machine size	M	2.5*1.5*2	2.5*1.5*2	2.5*1.5*2	2.5*1.5*2	3.6*1.7*2.5
Weight	T	2.5	2.5	2.5	2.5	3.8
