Basic Info.

Model NO. SLZK-5000 Machine Name 1000L - 5000L Blow Molding Machine for Water Tank Screw Diameter 130mm Screw L/D Ratio 28:1 Capacity of Accumulator 350L Main Oil Pump Motor 55kwx2 Servo Motor 15kw Application Water Tank, Plastic Pallet, Toy, Road Block, Drum Dimension 13X11.5X10.5m Weight 210t Warranty 12months Transport Package Export Packing Specification 2000L Trademark WELL Origin Rushan, Weihai City HS Code 84772090 Production Capacity 10 Set/Month

Product Description

Plastic  blow molding machine feature and advantages:

1. PLC+touch screen makes the operation clearer and easier.
2. Accumulator die head of high-quality nitriding steel adopt mirror surface treatment
3. Quicker reload material and color masterbatch.
4. Unique "linear guider" to the clamping structure to ensure uniformity aesthetics.
5. Hydraulic system designed under energy-saving principle, reduce energy consumption by 20%-40% compared with the conventional model. Greatly lower the oil temperature and extend the service life of hydraulic components.
6. Variety of functions for different products: Bottom blow, lift, encapsulation, extension of material, rotation, sub-mold, robot parison controller, etc.

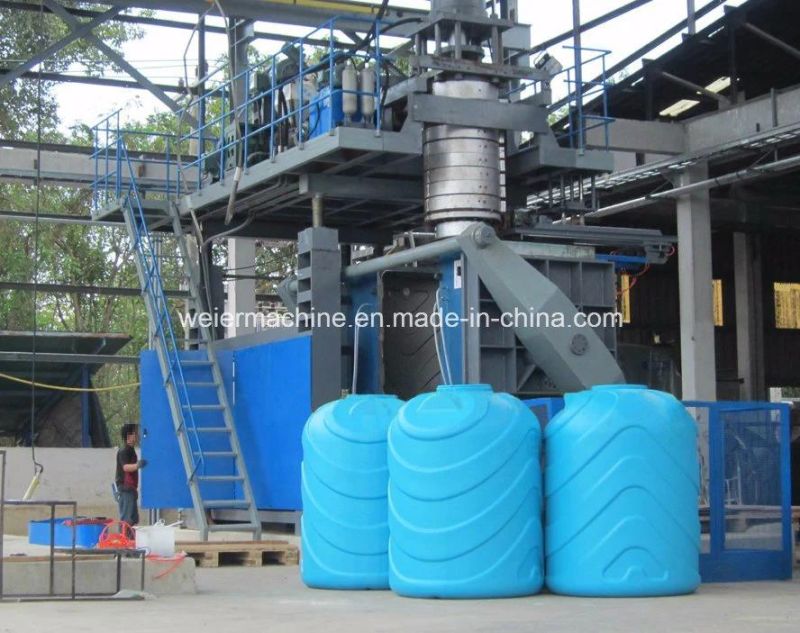

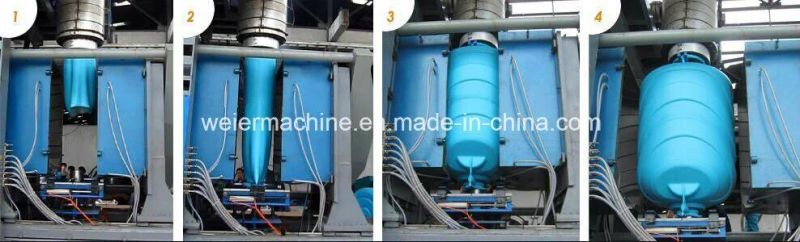

Plastic blow molding machine photos for your reference

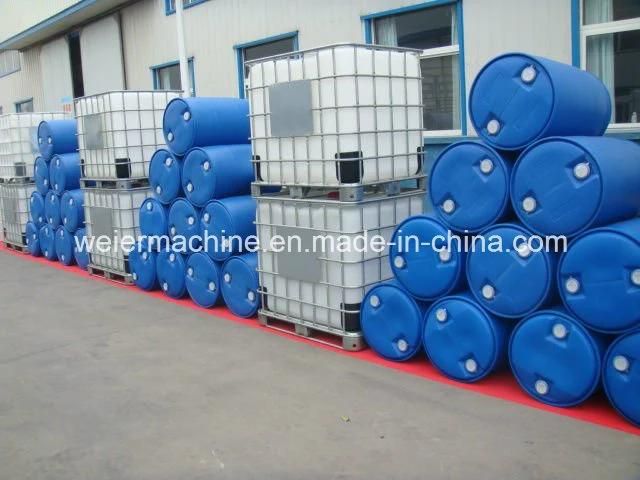

Finished products show
The products are widely used for water storage tank,traffic facilities,floating body,tail unit,pallet,tool kit,auto filter pipeline,plastic seat,waste-bin,IBC,double L-ring barrel,anti-bump barrel and 3 layers auto fuel tank,so with one machine ,you can produce so many products,you only need to change the mould which can be customized

Parameter list

Description		1000L	2000L	3000L	5000L	10000L	15000L
Max container capacity	L	1000	2000	3000	5000	10000	15000
Machine Weight	T	44	60	70	85	210	280
Machine Dimension (L*W*H)	M	9*7.5*5.5	10*8*6.5	11*8*7.5	12*8*8	13*11.5*10.5	15*13*11.5
Total Power	Kw	351	441	532	630	780	920
Average Power Consumption	Kw	228	286	346	409	460	560
Die Head
Accumulator Volume	KG	35	60	80	150	400	600
Number of Heating Zone	Zone	12	14	16	18	15	18
Power of Die Heating	Kw	120	140	160	180	150	180
Max. Die-pin Diameter	mm	450	600	800	850	920	1000
Extruder Unit
Screw Diameter	mm	90/100/100/90	100/100/110/100	110/120/120/110	120/130/130/120	130*4	150*4
Screw L/D Ratio	L/D	25/1	25/1	25/1	25/1	28/1	28/1
Number of Heating Zone	Zone	18	18	20	20	24	28
Heating Power	Kw	90	99	110	120	96	112
Max. Melting Capacity	KG/Hr.	370	470	540	670	1100	1400
Extruder Motor Power	Kw	22/22/30/30	30/30/45/45	45/45/55/55	55/55/75/75	110*4	132*4
Clamping Unit
Max. Mould Size(W*H)	mm	1200*1500	1500*2000	1700*2200	2000*2400	2600*3000	3100*3400
Distance Between Platen	mm	800~2400	1000~3000	1200~3400	1300~3600	2500~5000	2600~6100
Platen Size(W*H)	mm	1500*1500	1800*2000	2000*2200	2200*2400	2800*3000	3300*3300

Output for plastic water storage tank blow molding machine as follows:

Capacity	Output	Unit	Weight	Wall Thickness
200 L Tank	18-20	PC/H	3-4.5 KG	2-2.5 MM
300 L Tank	18-20	PC/H	4-5 KG	2-2.5 MM
500 L Tank	16-18	PC/H	6-10 KG	2.5 MM
750 L Tank	14-16	PC/H	10-15 KG	2.5-3 MM
1,000 L Tank	10-12	PC/H	16-20	3-3.5 MM
1,500 L Tank	9-11	PC/H	20-30	3-3.5 MM
2,000 L Tank	8-9	PC/H	30-40	3-4 MM
3,000 L Tank	5-6	PC/H	50-60	4-5 MM
5,000 L Tank	3-4	PC/H	70-85	5-6 MM
10,000 L Tank	2	PC/H	150	7-10 MM
20,000 L Tank	1.5	PC/H	200-230	12-15 MM

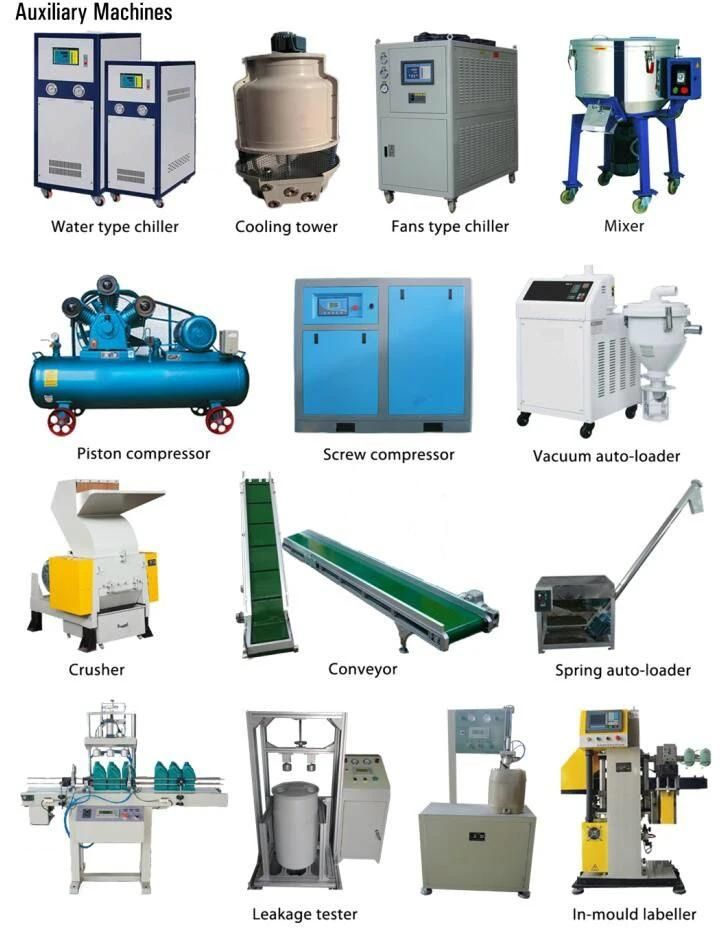

Auxiliary unit for plastic blow molding machine

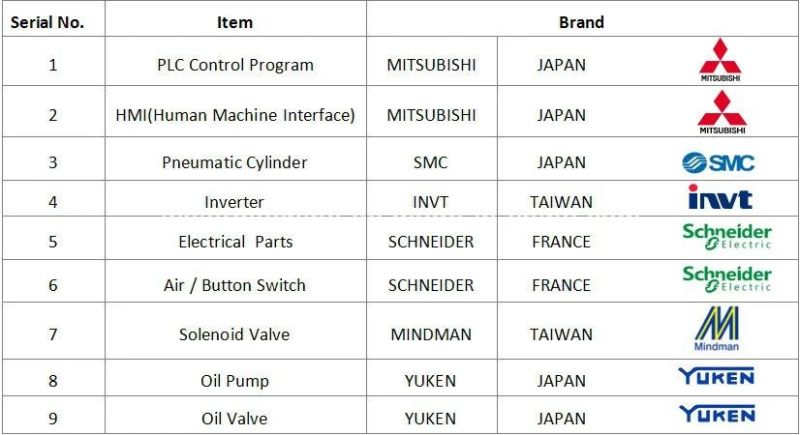

Parts and Brand for your reference

After -sales  service

Installation

The Seller will dispatch two engineers against the requests of the Buyer to install and adjust the machine for 10-15 days in the Buyer's factory.

The Buyer need to inform the Seller 15 days in advance.

The Buyer should pay for the two engineers visa application cost, round- tickets, food & accommodation before their departure.

Training

The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;

Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;

The training is free of charge.

Guarantee

The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.

Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
