400mm PVC Edge Band Sheet Line with Slitter
CHINA GTL TOOLS LIMITEDBase Info
Description
Basic Info.
Model NO. SJSZ-65/132 400mm PVC Edge Band Sheet Line Customized Customized Condition New Machine Name 400mm PVC Edge Band Sheet Line with Slitter Power Supply 380V Three Phase Width 400mm Thickness 0.2-4mm Line Speed Max.10m/Min Edge Band Color Any Color Available Capacity 180kg/Hr Inveter ABB or Teco Motor Siemens Motor Gearbox Guomao Transport Package According to Customers Needs Specification 400mm 0.4-2mm Trademark WEIER 400mm PVC edge band sheet line with slitter Origin Qingdao, China HS Code 84772090 Production Capacity 10 Units Per YearProduct Description
400mm PVC Edge Band Sheet Line with slitter
---Description---

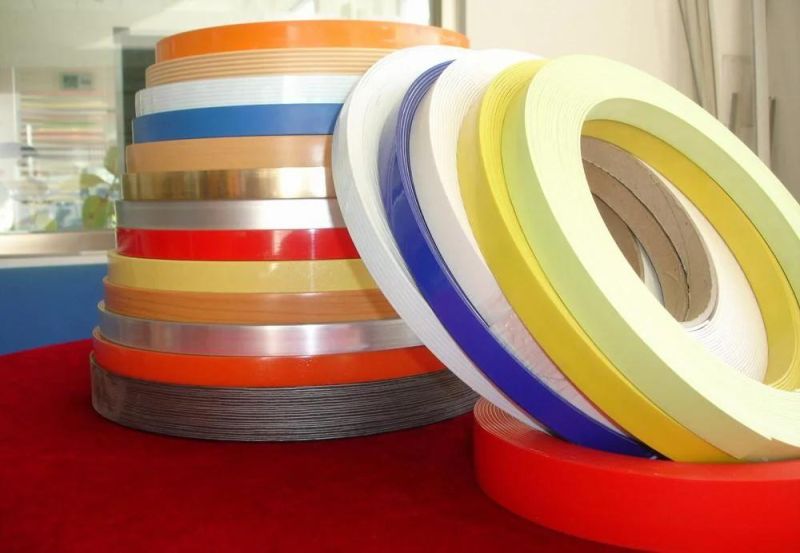

1.PVC edge banding is mainly made of PVC resin,with plasticiser,stabilizer,lubricant,color powder and other chemical additives.It is thermoplastic coiled material.
2.Its surface can be printed as wood grain,marble vein,grain line and so on.Soft gloss,bright color pattern,making people feel wooden reality and having stereoscopic impression.And it's also very clean with decoration feature.
---Summary---
| No | item | parameter |
| 1 | Suitable resin | PVC process flow formula |
| 2 | Max.Sheet width | 400mm |
| 3 | Sheet thickness | 0.4-2mm adjustable |
| 4 | Capacity | Max.180-250kg/hr |
| 5 | Power supply | 380V 3phase 60HZ or as per your request |
| 6 | Air consumption | 80L/min |
| 7 | Water consumption | 100L/min |

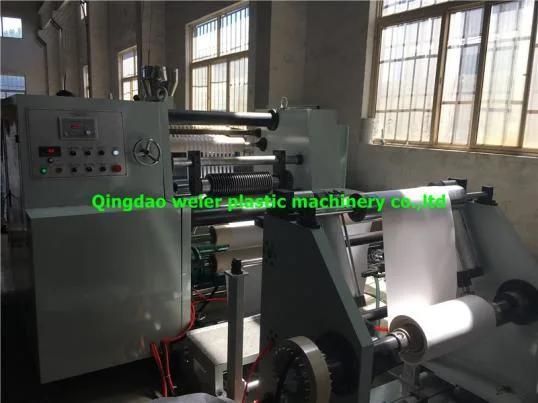

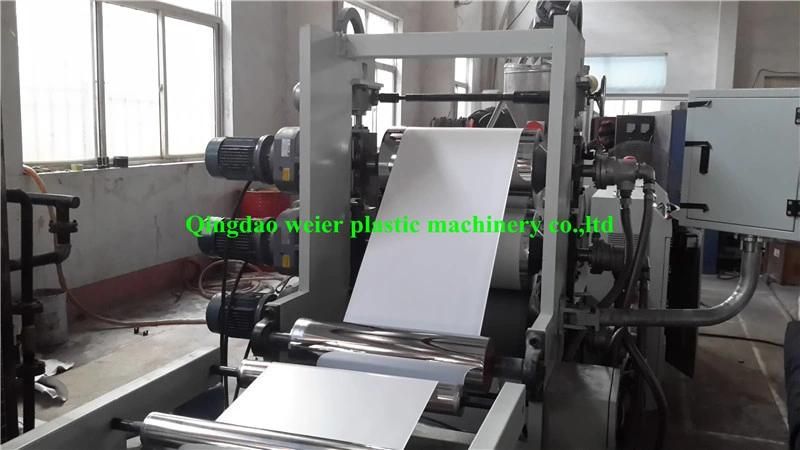

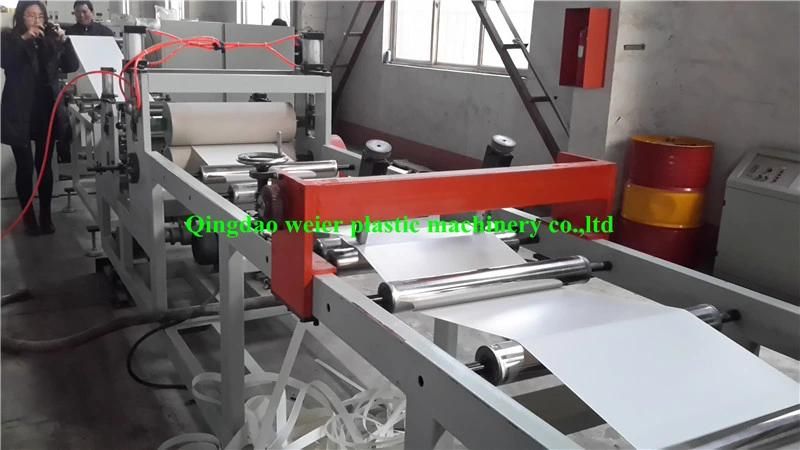

---Machien photos---
---Equipment list---
| No | item | Quantity |
| 1 | Screw loader for extruder | One set |
| 2 | SJSZ-65/132 conical twin screw extruder | One set |
| 3 | Hanger type mold | One set |
| 4 | Electric control system | One set |
| 5 | Three roller calender | One set |
| 6 | Roll temperature regulator | One set |
| 7 | Cooling transmission bridge | One set |
| 8 | Side trimming unit | One set |
| 9 | Haul off machine | One set |
| 10 | Length metering machine | One set |
| 11 | Gluing unit | One set |
| 12 | Drying unit -air cooling | One set |
| 13 | Double position winder | One set |
| 14 | Spare parts | One suit |
---Contact information---
Echo Lee
-----------------------------------------
Qingdao Weier Plastic Machinery Co.,Ltd
Mobile: 0086-13583286680
Tel: 0086 85213097
Fax:0086-85205396
Web:weiermachine.en.made-in-china.com
Warmly welcome to visit our factory for ready running 400mm PVC edge band sheet line with slitter!!!
