• Model NO.：OMV Series Hydraulic Motor
• Max. Output：47 Kw
• Max. Pressure：20 MPa
• Max. Flow：240 L,Min
• Max. Weight：38.6 Kg
• Material：Cast Iron
• Warranty：One Year
• Transport Package：Sale Packing Contians Carton or Wood Case
• Specification：CE
• Trademark：Blince
• Origin：Guangdong Province, China (Mainland)
• HS Code：8412291000
• Production Capacity：3000 Units Per,Month

Type OMV315
OMV400
 OMV500OMV630OMV800OMV1000Displacement (cm ³/rev.)333419518666801990Max. speed (rpm)cont.510500400320250200int.630600480380300240Max. Torque
 (Nm)cont.92011801460166018802015int.111014101760194021102280peak129016402050221024702400Max. output (kW)cont.38.047.047.040.033.028.6int.46.056.056.056.044.040.0Max pressure
drop(Mpa)cont.202020181614int.242424211816peak282828242118Max flow
(L/min)cont.160200200200200200int.200240240240240240Net Weight  (kg)31.832.633.534.936.538.6

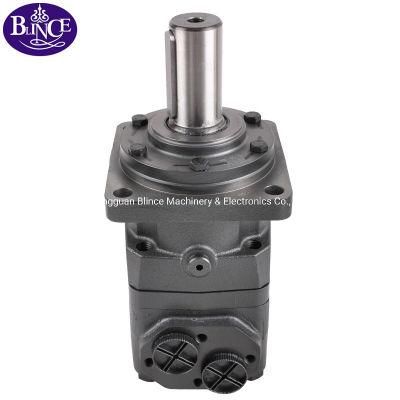

BLINCE Orbital Hydraulic Motor OMV series

Displacement:
 315cc,400cc,500cc,630cc,800cc,1000ccFlange:4: 4-Ø18 Square-flange Ø200, pilot Ø160×11
W: 4-Ø18 Wheel-flange Ø224, pilot Ø180×10
K6: 4--Ø14.2 Square-flange Ø162, pilot Ø127×11
K4: 4-Ø14.2 Square-flange Ø160, pilot Ø125×11Output Shaft:A: Shaft Ø50 , parallel shaft with key 14×9×70
BD: Shaft Ø53.975, splined shaft 16-DP8/16
B: Shaft Ø53.975, splined key 16-DP8/16
C: Shaft Ø57.15, parallel shaft with key 12.7×12.7×57.15
T: Cone shaft Ø60, parallel key 16×10×32
T1: Cone shaft Ø60, parallel key 14.308×14.308×50.8
Q: Shaft Ø45, splined shaft 17Z*2.5×30P×5e
M: Shaft Ø45, parallel shaft with key 12×8×70
Y:  Shaft Ø45, parallel shaft with key 12×8×45Ports and drain port:D: G1 Manifold 4×M12, G1/4
M: M33×2 Manifold 4×M12, M14×1.5
S: 1-5/16-12UN, 9/16-18UNF
G: G1,G1/4
M5: M33×2, M14×1.5
S1: 1-5/16-12UN(18),7/16-20UNF(12)
