Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor

Guangzhou Cospack Packaging Technology Co., Ltd.
  • Type：Hydraulic Power Units
  • Displacement(Cc/Rev)：160~800
  • Continuous Max Speed(Rpm)：625
  • Continuous Max Torque(N.M)：1464
  • Max Pressure(MPa)：20
  • Cylinde Parallel Shaft Size：40mm

Base Info

  • Model NO.：Omt Series Hydraulic Motor
  • Hole Middle Distance：160mm
  • Ports and Drain Port：G1,4, G3,4
  • Flange：Standard 4 Hole Diamond Flange
  • Material：Rust-Proof Cast Iron
  • Warranty：One Year
  • Pressure Control Valve：Hydraulic Motor
  • Hydraulic Control Unit：Hydraulic Motor
  • Hydraulic Motor：Omt Hydraulic Motor
  • Hydraulic Actuator：Hydraulic Motor
  • Hydraulic Power Units：Hydraulic Motor
  • Transport Package：Sale Packing Contians Carton or Wood Case
  • Specification：CE
  • Trademark：Blince
  • Origin：Guangdong Province, China (Mainland)
  • HS Code：8412291000
  • Production Capacity：3000 Units Per,Month

Description

Type OMT
160OMT
200OMT
230OMT
250OMT
315OMT
400OMT500OMT
630OMT
800Displacement (cc/rev)161.1
 201.4232.5251.8326.3410.9523.6629.1801.8Max torque
(n.m)cont4705906707309501080122013181464int56071082188011401260137014981520Max pressure
(Mpa)cont202020202018161412.5int242424242421181613Max speed )cont625625536500380305240196154int780750643600460365285233185Max flow
(L/min)cont100125125125125125125125125int125150150150150150150150150Weight(kg)19.52020.420.52122232425
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor
Omt250 Omt315 Omt400 Omt500 Omt630 Hydraulic Drive Wheel Motor

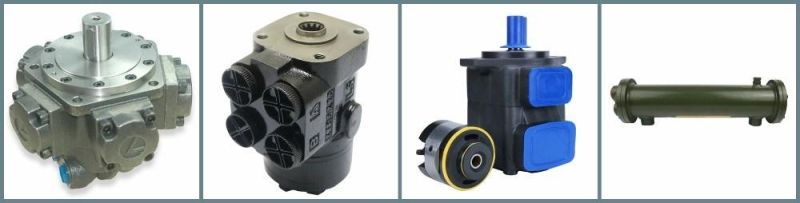

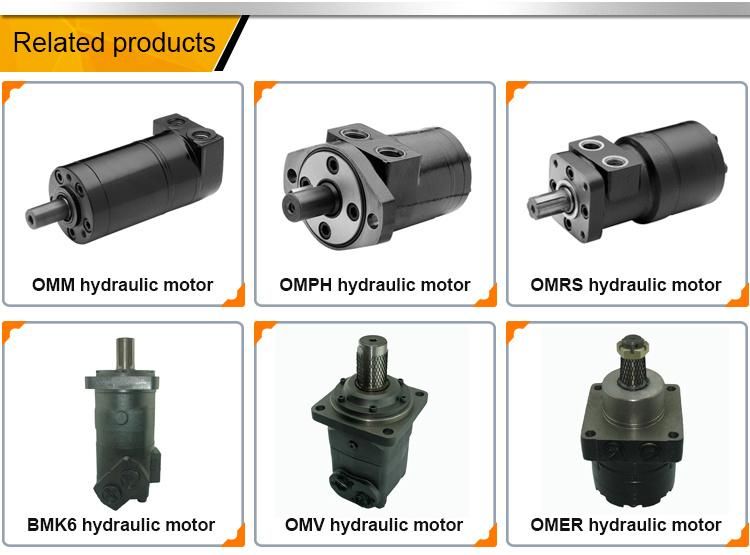

Blince profssion supply all series hydraulic motor like:

OMM/OMP/OMPH/OMR/OMRS/OZ/OK/OMH/OMSY/OMT/OMV hydraulic orbit motor, hydraulic pump like ( PV2R series / V V series / SQP series ) vane pumps. If you are interested in any our blince hydraulic motor pls contact me. Thanks! !
