Basic Info.

Model NO. HY-54/76 Max. Forming Depth 120mm Power Supply AC 380V, 50/60Hz Machine Dimension 5000*1750*2500 mm Application Container/Box/Tray/Lid Raw Material BOPS, PVC, Pet, HIPS, PS Processing Type Plastic Thermoforming Machine Procedure Feeding-Heating-Forming-Cutting Plastic Type Plastic Packing Weight 4800kg Transport Package Wooden Case Specification 540*760 Trademark Hongyin Origin China HS Code 847780000 Production Capacity 20sets/Year

Product Description

I. Introduction With The Machine    HY-54/76 plastic thermoforming machine is a combination of mechanical, electrical and
pneumatic components, and the whole system was controlled by a micro PLC, which can be
operated in man-interface.
    It combines the material sending, heating, forming , cutting and stacking counting into one
process. It has three operation models. " manual", " semi-automatic" and "automatic, so it is a
new generation ideal package equipment with telecommuting and memory reserve functions.

Specifications


Forming Area	540× 760mm
Forming Depth	120mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V, 50HZ
Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	4800kg
Dimensions(L×W×H)mm	5000×1750×2500 mm

II. Application Area
    HY-54/76 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and
PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as
food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

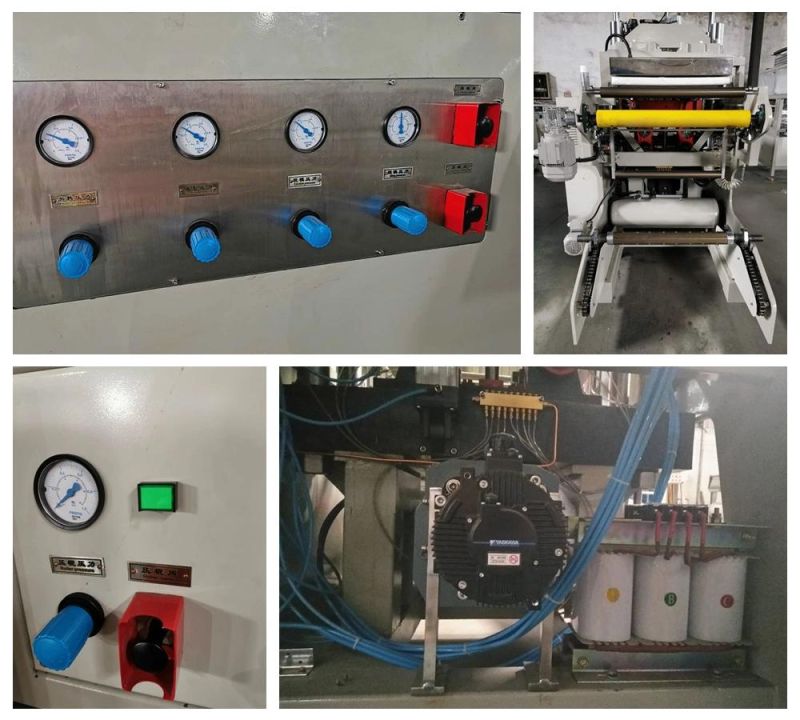

III. Machine Picture
HY-54/76 Plastic Thermoformer Workshop

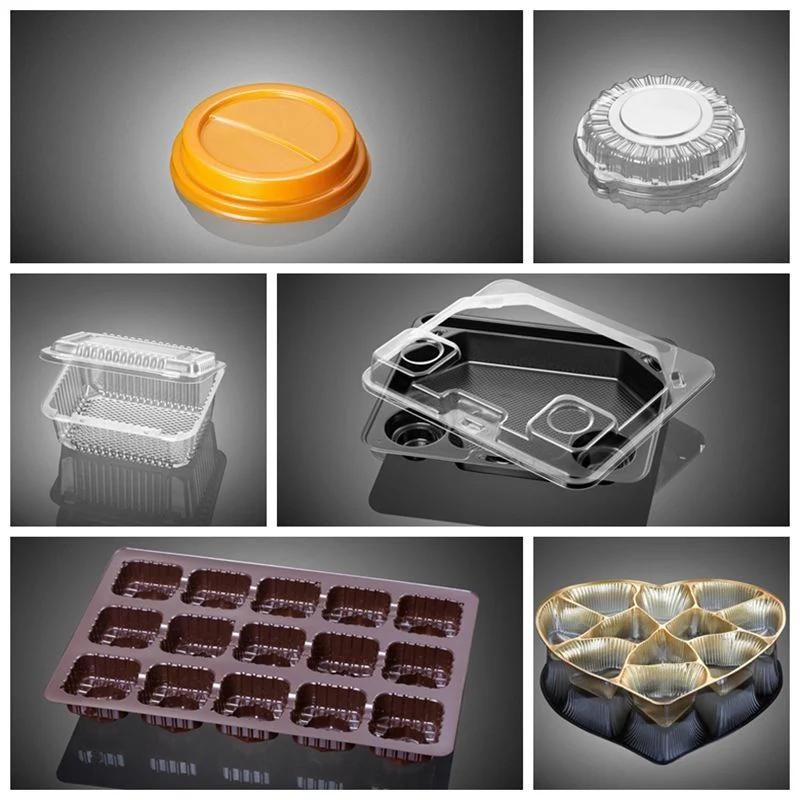

The Product Samples

IV. About Ruian Hongyin Machinery Co., Ltd Service.
 1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
 If you are interested in our machine, please feel free and contact me.
Contacter: Miss Lucy  Xu
