Basic Info.

Model NO. HY-54/76 Plastic Type Plastic Packing Machine Dimension 5000*1750*2500 mm Max. Forming Area 540*760mm Max. Forming Depth 120mm Thickness of Sheet 0.15-1.0mm Power Supply AC 380V, 50/60 Hz Warranty 1 Year Application Containers/Boxes/Trays/Lids Weight 4800kg Transport Package Wooden Case Specification 540*760 Trademark Hongyin Origin China HS Code 847780000 Production Capacity 20sets/Year

Product Description

  Fully Automatic Plastic Thermoforming Machine

I. Introduction With The Machine
    HY-54/76 plastic thermoforming machine is a combination of mechanical, electrical and pneumatic
components, and the whole system is controlled by a micro PLC, which can be operated in man-interface.
    It combines the material sending, heating, forming , cutting and stacking counting into one process.
It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation
ideal package equipment with telecommuting and memory reserve functions.

Specifications


Forming Area	540× 760mm
Forming Depth	120mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V, 50HZ
Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	4800kg
Dimensions(L×W×H)mm	5000×1750×2500 mm

II. Application Area
    HY-54/76 fully automatic plastic forming machine is suitable to form BOPS, HIPS, PS, PVC and PET
plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes,
cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

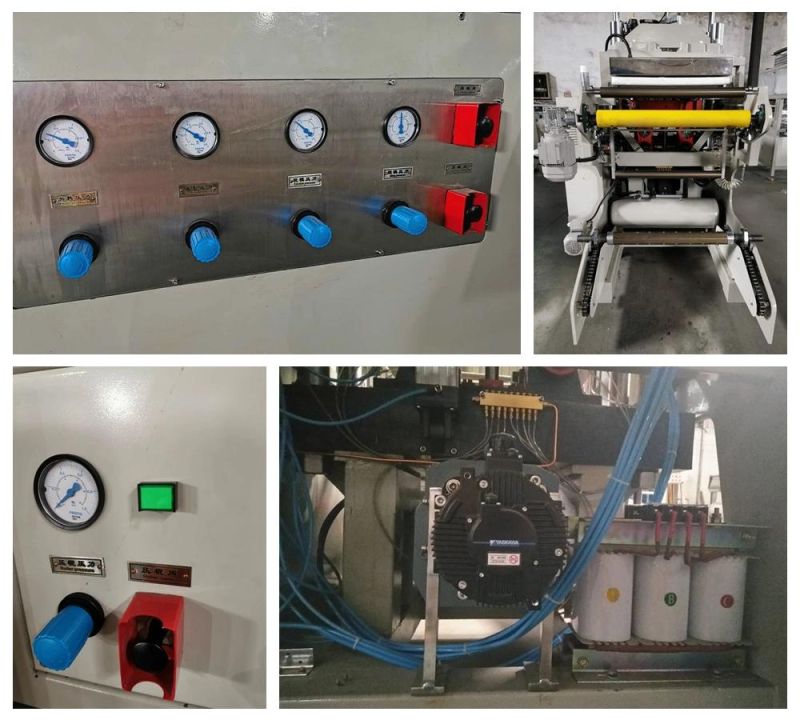

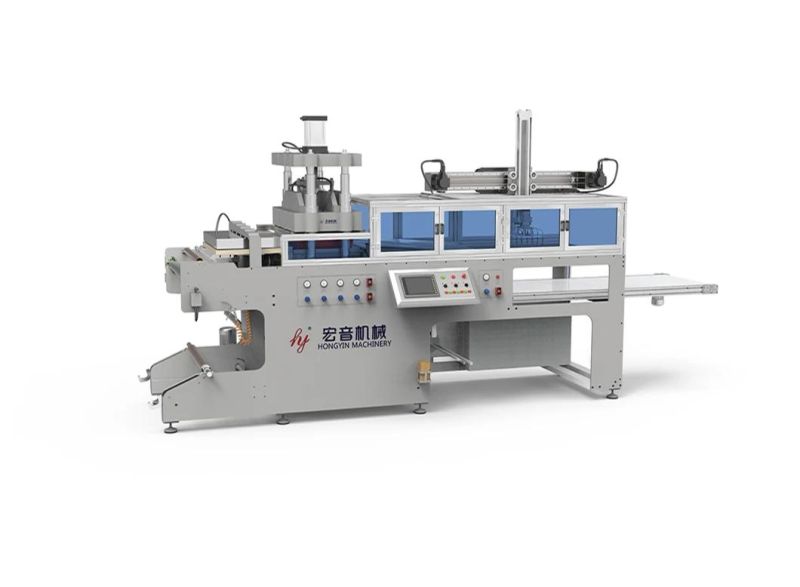

III. Machine Picture
HY-54/76 Plastic Thermoformer Workshop

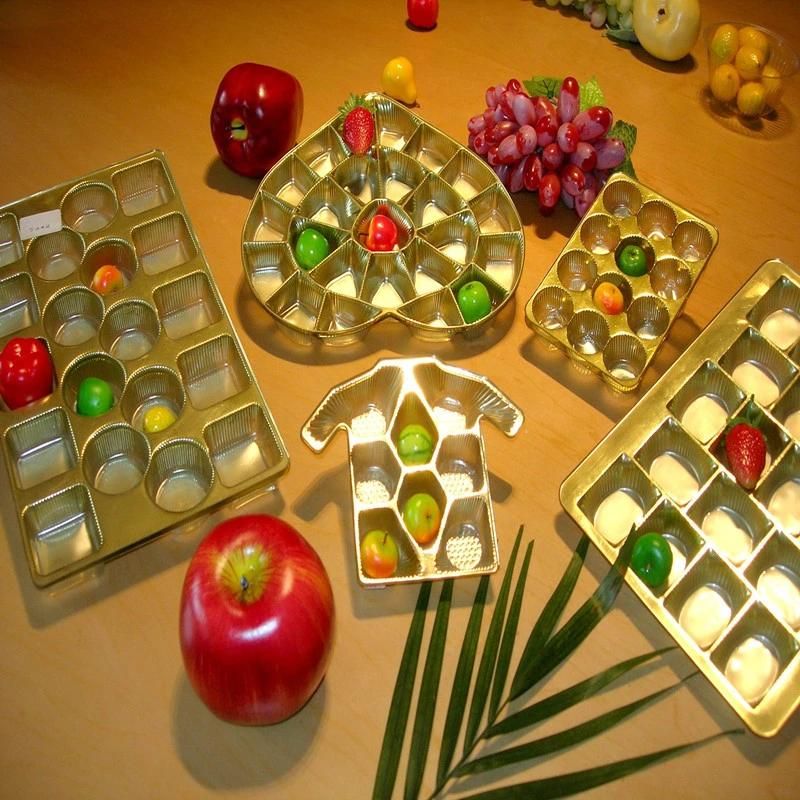

The Product Samples



Packing& Shipping


IV. About Ruian Hongyin Machinery Co., Ltd Service.
 1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new on
the printing and packing area, some samples of your products shown to us will be appreicated,
we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.  If you are interested in our machine, please feel free and contact me.
