Basic Info.

Model NO. HY-54/76 Application Containers/Boxes/Lids/Trays Processing Type Plastic Thermoforming Machine Plastic Type Plastic Packing Max. Forming Area 540*760 mm Max. Forming Depth 120mm Thickness of Sheet 0.15-1.0mm Max. Sheet Roller Dia. 710mm Machine Dimension 5000*1750*2500 mm Weight 4800kg Transport Package Wooden Case Specification 540*760 Trademark Hongyin Origin China HS Code 847780000 Production Capacity 20sets/Year

Product Description



I. Introduction With The Machine
HY-54/76  is a combination of mechanical, electrical and pneumatic components, and the whole
system is controlled by a micro PLC, which can be operated in man-interface.
It combines the material sending, heating, forming , cutting and stacking counting into one process.
It has three operation models. " manual", " semi-automatic" and "automatic, so it is a new generation
ideal package equipment with telecommuting and memory reserve functions.

Specifications


Forming Area	540× 760mm
Forming Depth	100mm
Sheet Thickness Range	0.15-1.0 mm
Sheet Roller Diameter	710mm
Air Pressure	0.7 Mpa
Water Consumption	15 Liters/min(15-20ºC)
Air Consumption	2400 Liters/min
Production Speed	600-1200 recycles/hr.
Voltage	Tri-phase, AC380V±15V, 50HZ
Preheating Power	4 kw
Mould Plate Heating Power	9 kw
Heating Plate Power	18 kw
Weight	3500kg
Dimensions(L×W×H)mm	3220×1660×2660 mm

II. Application Area
HY-54/76 is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can
produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes,
fast-food boxes, supermarket trays, oral liquids trays etc.

III. Machine Process

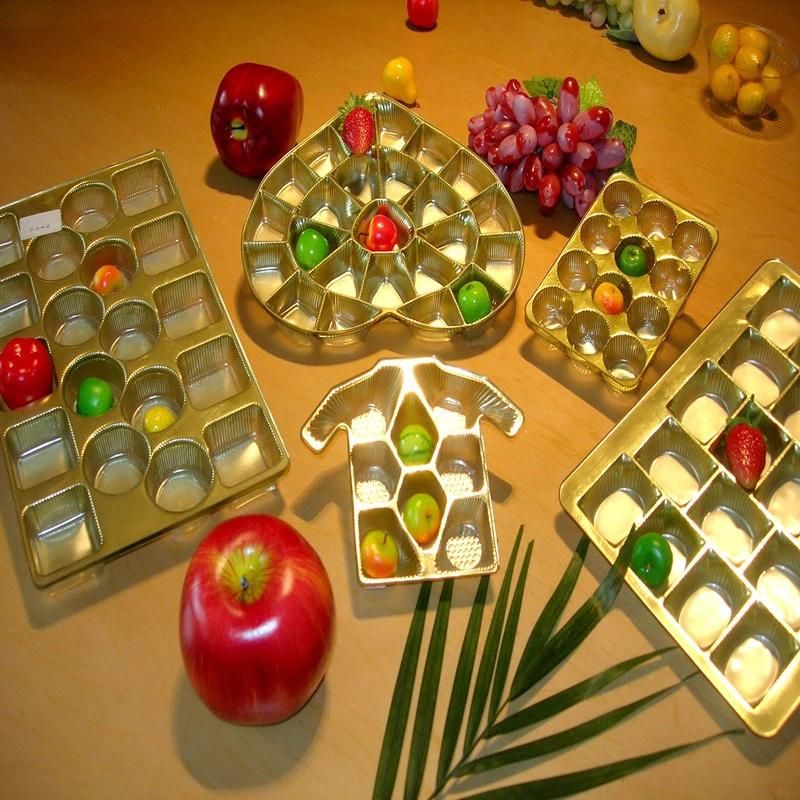

The Product Samples

IV. About Ruian Hongyin Machinery Co., Ltd Service.
 1. Purchase Service
Ruian Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.

2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.

3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer. If you are interested in our machine, please feel free and contact me.
Contacter: Miss Lucy  Xu
