Basic Info.

Model NO. DF-20 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1500mm Power Source Diesel Color Custoomized Drill Rod Square Rod Machine Weight 14t Drilling Depth 20m Drill Tools 500-1500mm Drill Bit Chassis Length 3700mm Chassis Crawler Power Head Speed 10-30rpm Engine Rated Power 110kw Transport Status Width 2400mm Transport Status Height 2900mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 9800mm*2400mm*2900mm Trademark DingLi Origin China HS Code 8430419000 Production Capacity 20 Sets/Month

Product Description

Product Details
The maximum drilling depth of the drilling rig is 15 M, the inner diameter is 500-1500 MM, the upper part of the drilling rig can be rotated 360 degrees, and the comprehensive operation ability is strong. It is a crawler-type small square mast pile driver, used for piling, drilling, drilling and other engineering construction. The company's products have passed CE, ISO quality certification, if you are interested in consulting, please contact us, thank you for your browsing.


 Parameter


model	DF-20
Working mode	hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1800
drilling depth	5-30m
Diamension	9800X2400X2900mm
Total weight	16T
Power head max output torque	24000N.m
Rotary speed (r/min)	10-30RPM
Assisting winch max lifting force	10KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	25Mpa
pilot pressure	12Mpa
Travelling speed (km/h)	2 km/h
Diesel engine power (KW)	125KW,cummins,water cooling ,turbo charger
Is it customizable?	Yes

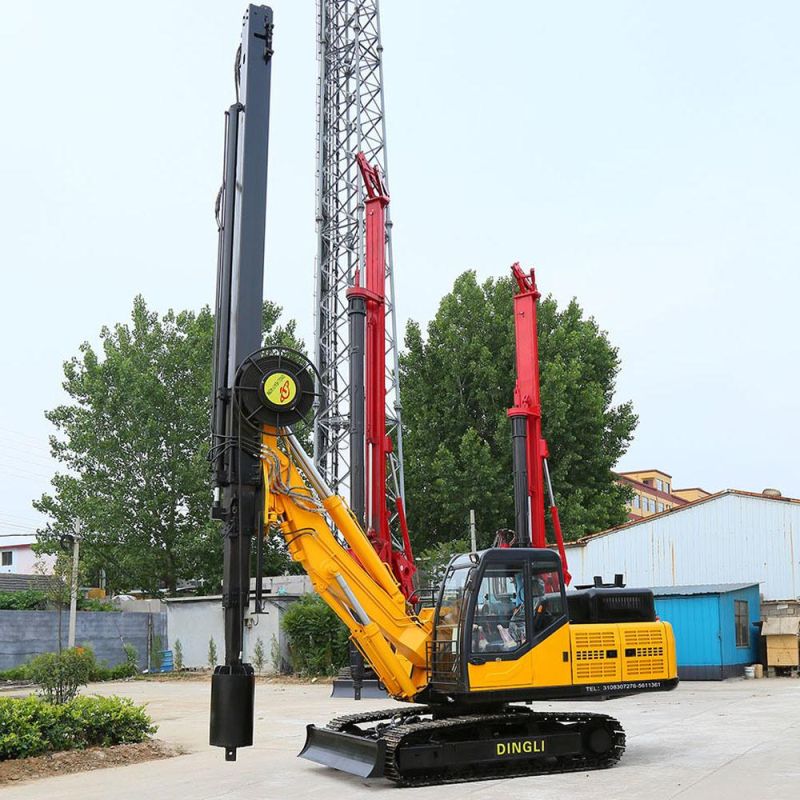

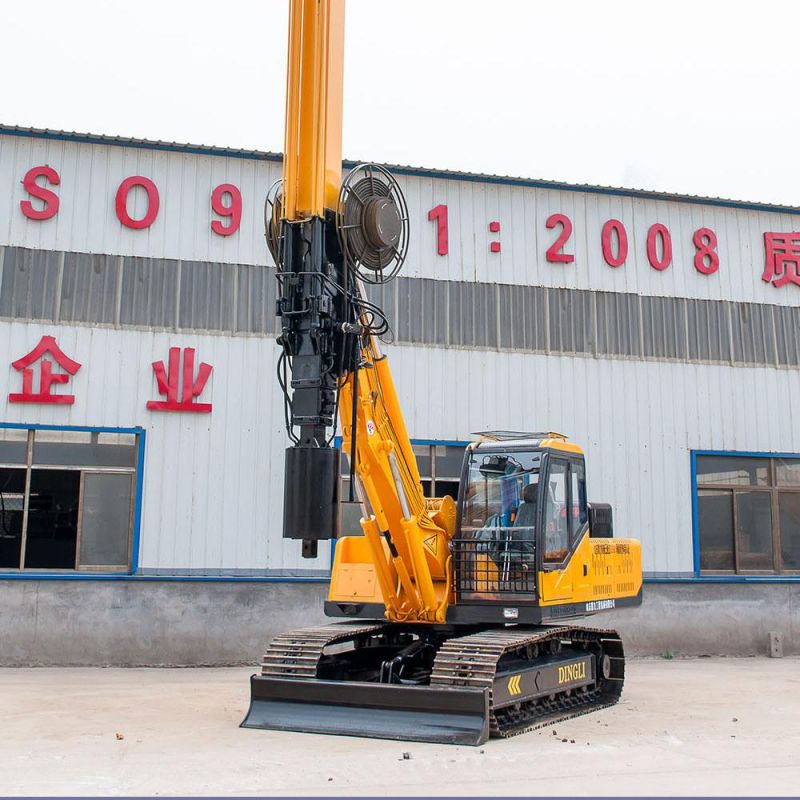

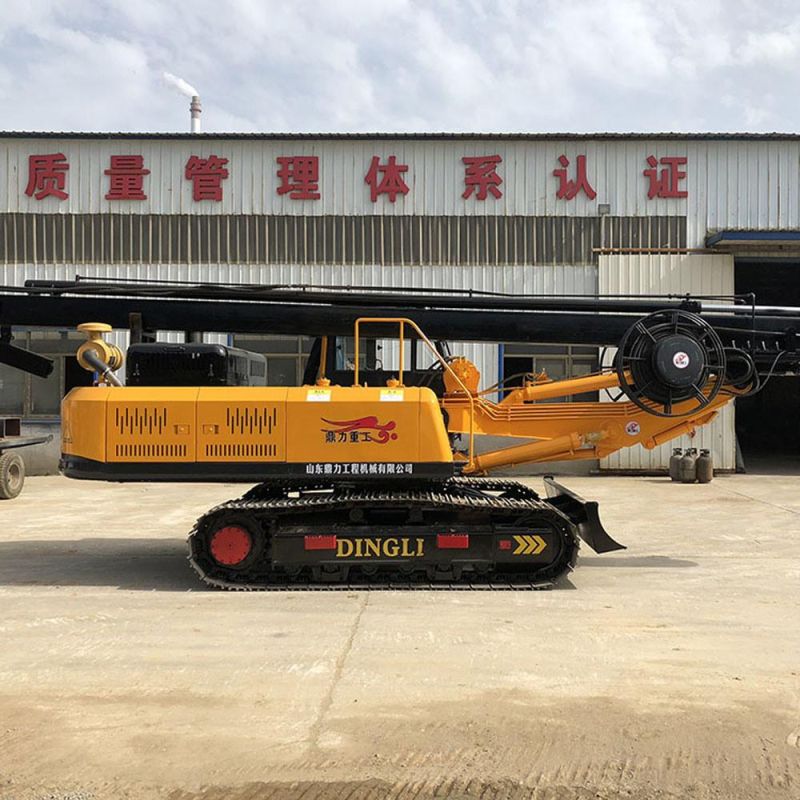

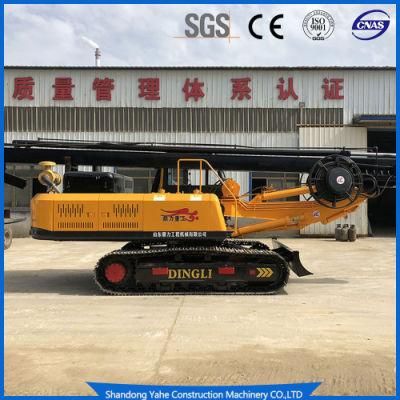

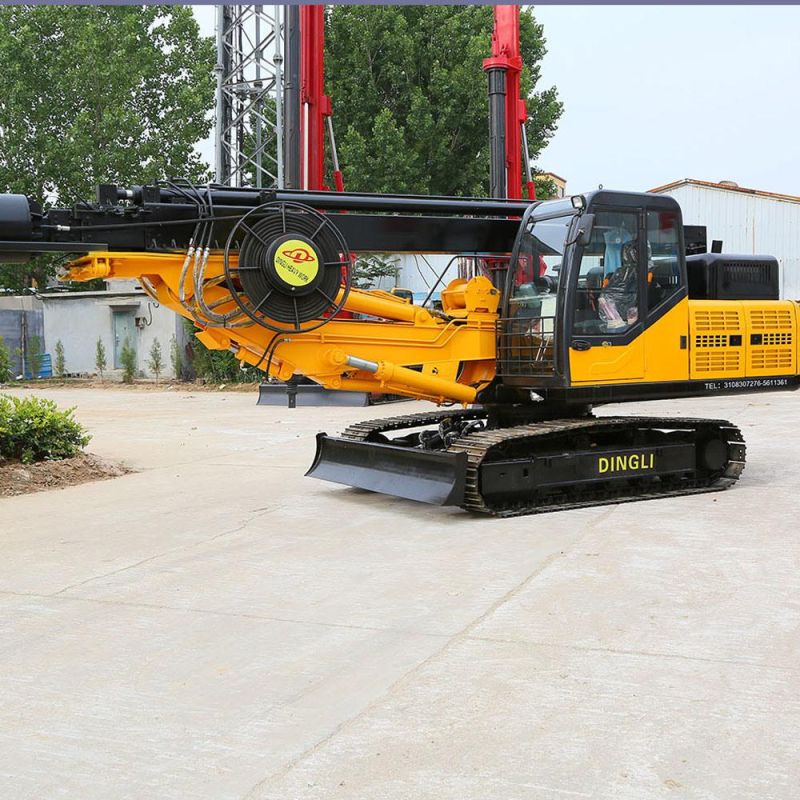

Machine Photos







Certification









Exhibition



Company profile
      Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.


 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
