Basic Info.

Model NO. XY-200 Type Two-Wheel Trailer Name Water Well Borehole Drilling Machine for 200m Soil Drilling Depth 200m Drilling Diameter 75-400mm Power 22HP Diameter of Drill Rod 50mm Drilling Angle 90-75 Chassis Two Wheels Transport Package Wooden Case Specification 2750*950*1600mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

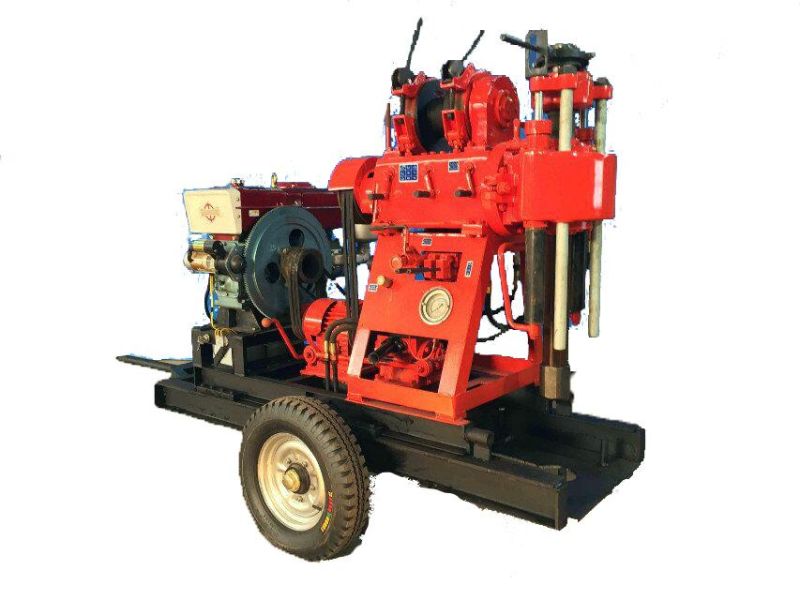

                 Water Well Borehole Drilling Machine For 200m Soil Investigation Test



Water Well Borehole Drilling Machine For 200m Soil Investigation Test is a latest model drilling rig, widely used forwater engineering holes,

geological survey holes with big caliber 75mm-400mm.

Features of XY-200 Drilling Rig

1. Power can be electrical motor or diesel engine, as per your project needs;

2. Engine and Mud pump,Reduction gears and Drill rig are all installed on one base, more compact structure and improve the overall rigidity;

3. Mounted in 2-wheel trailer,easy to move around when working;

4. Easy to disassemble,installed and operation, convenient for maintenance and transport;

5. Using alloy bit for soft ground,using diamond bits for hard ground.

Main Parameters


1.Overall parameters
Drilling depth	200m
Maximum open hole caliber	400mm
End hole caliber	75mm
Diameter of drill rod	50mm
Drilling angle	90~75
Weight(not include power)	760kg
Dimension	2750*950*1600mm
2. Vertical shaft
Rotating speed	71,142, ,310,,620r/min
Feeding stroke	450mm
3.Hoist
Max. single line hoisting capacity	2000Kg
Diameter of wire rope	13mm
Volume of winding drum	35m
Hug floodgate caliber	230mm
Hug floodgate belt width	70mm
4.Mud pump
Type	Horizontal single urn twin-action
Rate of flow	180L/min
MAX. pressure	1.5MPa
Working pressure	0.7MPa
Diameter of  water inlet tube	50mm
Diameter of  water outlet tube	45mm
5.Power
Diesel engine	22HP, 2200r/min
Electrical motor	15KW, 1460r/min

Certifications

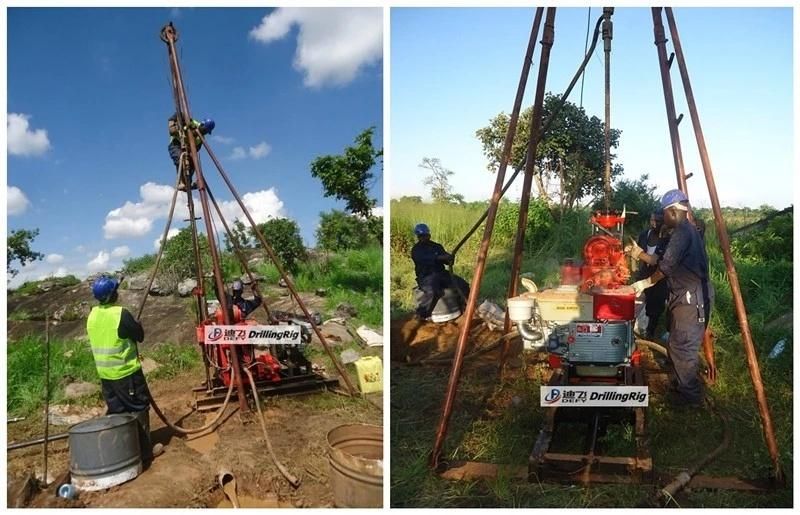

Working Site



SPT and other drilling tools are available all year around


FAQ


1. Q:  How to buy?

    A:  After confirming the goods you will purchase,deposit for ordering the goods,then prodution---goods finished for confirmation,

payment balance,and then shipment.

2. Q: What do I need to do after payment?

    A: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;

         b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick up the goods;All documents for customs

clearance will be sent to you by international express after shipment.



3. Q: I am not familar with a new product,how to use it?

     A: We provide operation manual and DVD to guide you;we also provide Free training in our factory if you were possible to come;

         We provide engineers for overseas technic support;

         We provide 24 hours/7 days technic support all year around.



4. Q: How can I change the broken parts if the machine got broken?

    A:We provide some wearing parts for you when the first time you purchase goods from us;We also provide wearing parts for your choice.

    All accessories of our machinery is available at Factory-price all Year around.
