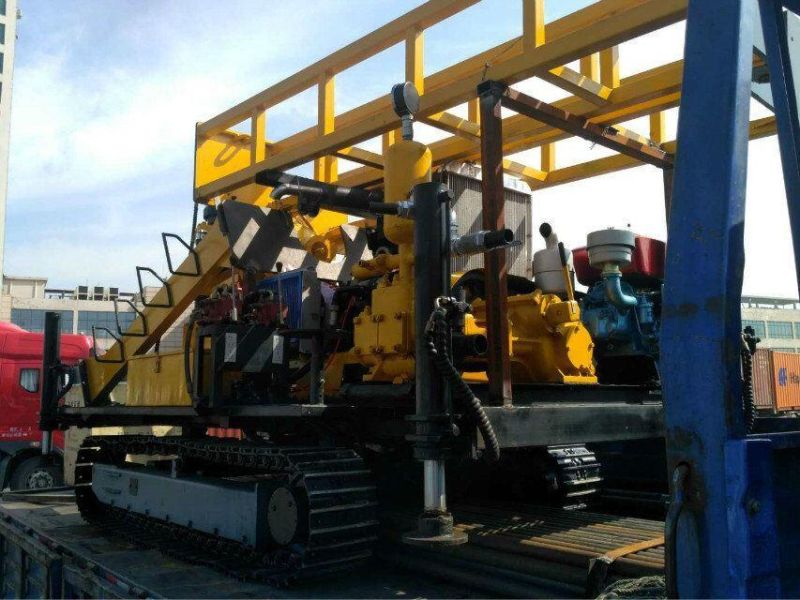

1. Main ParametersMax. Drilling Depth600mDiameter of drill pipeΦ42,Φ50,Φ60,Φ76Angle of vertical spindle90°~65°Drilling capabilityΦ75mm drill diameter 600m depthΦ127mm drill diameter 400m depthΦ219mm drill diameter 210m depthΦ273mm drill diameter 150m depth2. Vertical SpindleRotation speedForward 10 grades30-1050r/min Reverse 2 grades29-137r/min3. Main hoistLifting speed of single wire0.5-1.9m/sDiameter of wire rope12.5mmCarry capacity of single wire4000kg4. Mud pump(as per your choice)Horizontal triplex mud pumpBW-200Displacement200L/min5.Power supply(choose one between the following two)Diesel engine Model 4100,38kw(50HP)Electrical motorY180M-4B35,22kw6.Six-wheel Trailer Walking speed25Km/hr
 After-Sales Service
1. One year quality guarantee for main machine;
2. Training: operation manual, overseas installation is also available;
3. Spare parts are available in our factory at cost price for former customers;
4. 24 hour on-line guidance for operation and maintenance.
