Basic Info.

Model NO. QF-90 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Qf-Sj-50mm Cable Extruder Brand Sfs Usage Extruding Power 3p 380V 50Hz Demoulding Automatic Material Fiber PLC Brand Siemens Motor Brand Siemens Touch Screen Kunlun Bearing Brand NSK Transport Package Wooden Packing Specification QF-SJ-90 Trademark QF Origin Dongguan Production Capacity 10set/Month

Product Description

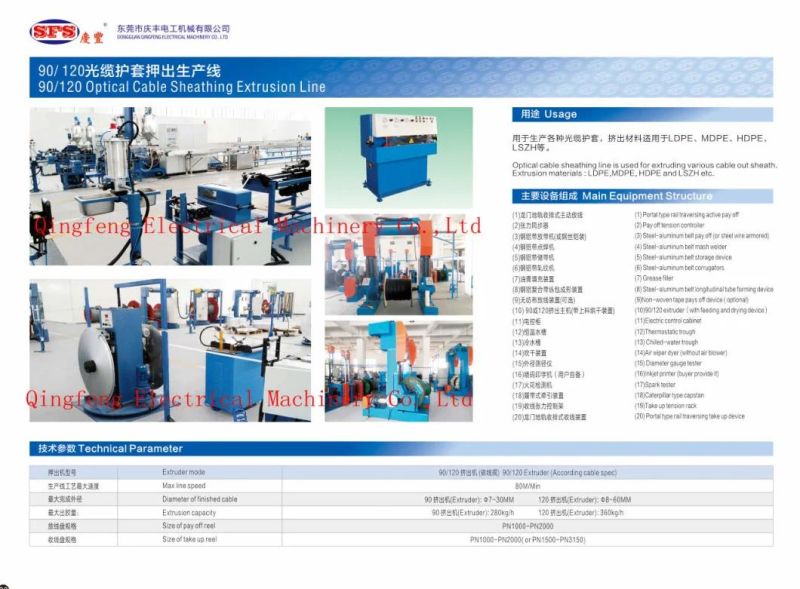

QF-90/120 Optical Cable Sheathing Extrusion Line

Application:
Optical cable sheathing line is used for extruding various cable out sheath. Extrusion materials : LDPE,MDPE, HDPE and LSZH etc.

Main Technical specifications:
1.  Extruder model:90/120 Extruder (According cable spec)
2.  Max line speed: 80M/Min
3.  Diameter of finished cable:
     90 Extruder: Φ7-30MM;
    120 Extruder: Φ8-60MM
4.  Extrusion capacity:
    90 Extruder: 280kg/h;
    120 Extruder:360kg/h
5 . Size of pay off reel: PN1000-2000
6.  Size of take up reel: PN1000-PN2000
      ( or PN1500-PN3150)

Main Equipment Structure
(1) Portal type rail traversing active pay off;
(2) Pay off tension controller;
(3) Steel-aluminum belt pay off (or steel wire armored);
(4) Steel-aluminum belt mash welder ;
(5) Steel-aluminum belt storage device;
(6) Steel-aluminum belt corrugators ;
(7) Grease filler;
(8) Steel-aluminum belt longitudinal tube forming device ;
(9)Non-woven tape pays off device ( optional);
(10)90/120 extruder(with feeding and drying device);
(10)Electric control cabinet;
(11)Thermostatic trough;
(12) Chilled-water trough;
(13)Air wiper dyer (without air blower);
(14) Diameter gauge tester;
(15)Inkjet printer (buyer provide it);
(16)Spark tester;
(17)Caterpillar type capstan;
(18)Take up tension rack;
(19) Portal type rail traversing take up device.
