Basic Info.

Model NO. CNMC-500 Application Polyurethane Spray or Injection Power 230V 3-pH / 400V 3-pH Driven Mode Pneumatic Transport Package Wooden Case Trademark hightop Origin Shandong HS Code 8428399000 Production Capacity 20 Sets a Month

Product Description

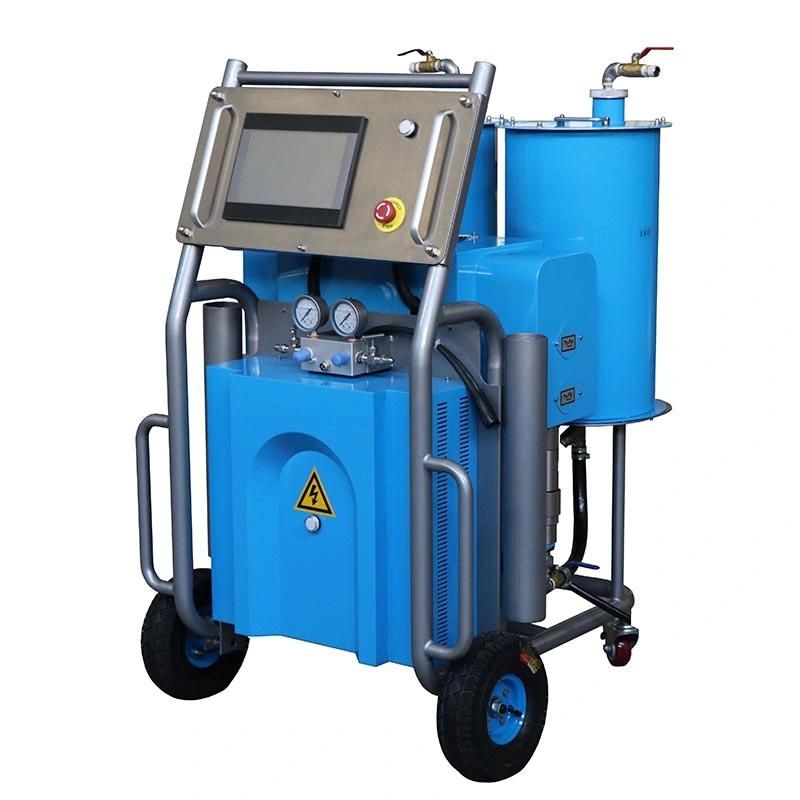

Electric polyurea spray foam machine

Introduction

1. Electric supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. minimizing spraying congestion with multi-feedstock device;

4. multi-leakage protection system to protect the safety of the operator;

5. equipped with emergency switch system, help operator deal with emergencies rapidly;

6. great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. digital counting system can understand original consumption timely;

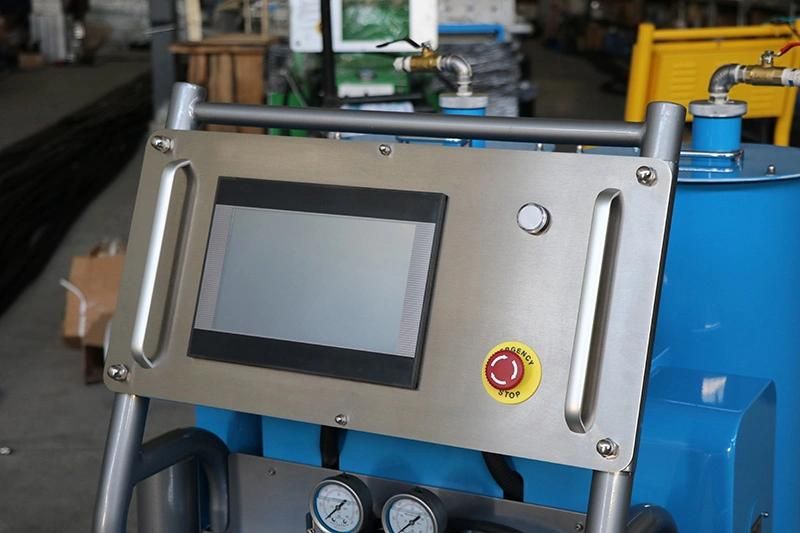

8. humanized design with equipment operation panel, super easy to get the hang of it;

9. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;

10. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity


Polyurethane Spray Machine Equipment applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

Equipment Standard Configuration:

1:Proportion Fixed Mainframe: 1 set
2:Self-cleaning spray/injecting gun: 1 set
3:Heating and preserved pipe: 49.2 feet (15m)
4:Connecting pipe for spray gun: 4.9 feet (1.5m)
5. Accessory box




Technical Data:


Project	CNMC-E40 project polyurethane spraying machine
Proportion Fixed Mainframe	1 set
Self-cleaning spray gun	1 set
Heated hose	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Max working pressure	23 MPa (230 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	12 kg / min (27 lb / min)
Each heater power	3000W
Heating hose power	1000W / 15m
Voltage	230V 3-ph / 400V 3-ph
Machine size	804*842*1230mm
Gross weight	284kg
Net weight	220kg
Max heating hose length	295.2 feet (90m)
Barrel cubage	36L(each one)

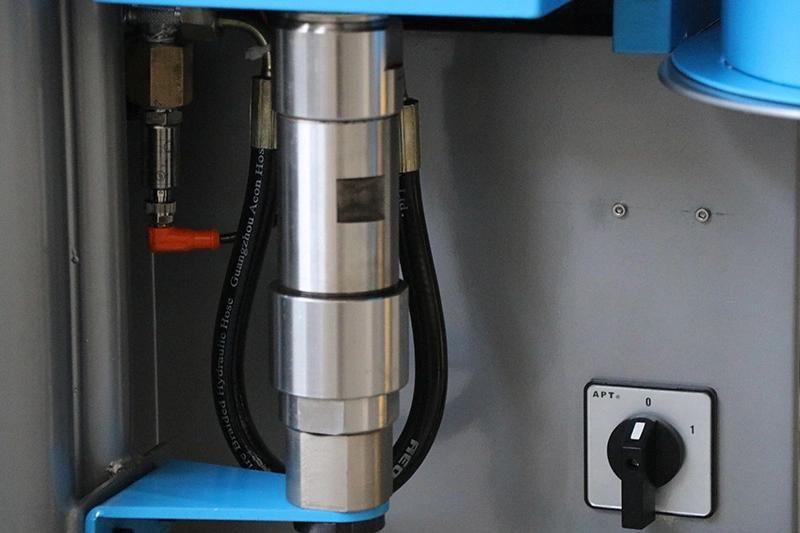

Detailed picture
