Basic Info.

Model NO. CNMC-E Application Polyurethane Spray or Injection Driven Mode Pneumatic Power 230V 1-pH / 400V 3-pH Transport Package Wooden Case Trademark hightop Origin Shandong HS Code 8428399000 Production Capacity 20 Sets a Month

Product Description

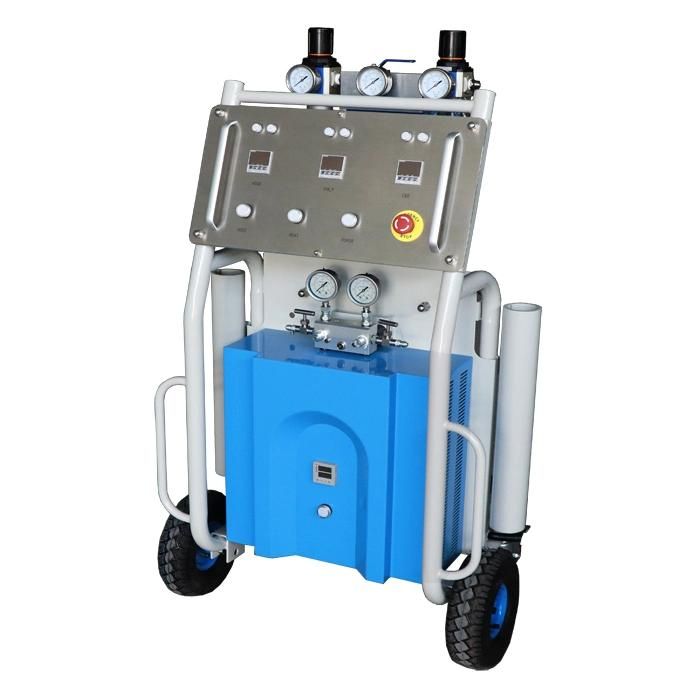

Pneumatic polyurethane spray foam machine

Introduction

1. pneumatio supercharging device, with small volume, light weight, low failure rate, simple operation, easy operation and other great features;

2. adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

3. minimizing spraying congestion with multi-feedstock device;

4. multi-leakage protection system to protect the safety of the operator;

5. equipped with emergency switch system, help operator deal with emergencies rapidly;

6. great 380v heating system enables rapid warming of raw materials to the best state, speeds up normal operation progress;

7. digital counting system can understand original consumption timely;

8. humanized design with equipment operation panel, super easy to get the hang of it;

9. the latest spraying gun has great features like small volume, light weight, low failure rate, etc;

10. lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity


Polyurethane Spray Machine Equipment applications:

1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

2. Casting: solar water heaters,tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

Equipment Standard Configuration:

1:Proportion Fixed Mainframe: 1 set
2:Self-cleaning spray/injecting gun: 1 set
3:Heating and preserved pipe: 49.2 feet (15m)
4:Connecting pipe for spray gun: 4.9 feet (1.5m)
5. Accessory box




Technical Data:


Project	CNMC-E2  project polyurethane spraying machine
Fixed host configuration	1 set
Self-cleaning spray gun	1 set
Gross weight	250KG
Feed pump	2 sets
Heated hose	49.2 ft (15 m)
Data ratio of raw materials	1: 1 (fixed)
Raw material viscosity range	200-1000CPS (at working temperature)
Working pressure	17 MPa (170 bar)
Maximum Fluid Temperature	88 ° C (190 ° F)
Maximum output	10 kg / min (22 lb / min)
Each heater power	3000W
Heating hose power	1000W / 15m
Total power	7500W
Voltage	230V 1-ph / 400V 3-ph
Machine size	770mm*560mm*1350mm
