• Model NO.：KQ
• Names：Milk Juice Yogurt Meat Rice Soup Jam Jacketed Coo
• Electric Heating Cooking Kettle：for Meat, Sugar, Soup,
• Double Jacketed Kettle：Heating and Mixing
• Jacket Kettle Capacity：300L ,500L, 600L, 1000L
• Mixer：Scrapper Mixer, Normal Mixer
• Kettle Material：Ss 304,316
• Temperature：Above 90degree
• Kettle Type：Vertical ,Tilting
• Jacket Kettle：Heating by Electricity, Steam
• Factory：Shanghai
• Packing：Wooden Box
• Spare Parts：Available
• MOQ：1set
• Warranty：One Year
• Voltage ,Hz ,Phase：Make It to Your Order .
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ Names Milk Juice Yogurt Meat Rice Soup Jam Jacketed Coo Electric Heating Cooking Kettle for Meat/ Sugar, Soup, Double Jacketed Kettle Heating and Mixing Jacket Kettle Capacity 300L ,500L, 600L, 1000L Mixer Scrapper Mixer, Normal Mixer Kettle Material Ss 304/316 Temperature Above 90degree Kettle Type Vertical /Tilting Jacket Kettle Heating by Electricity, Steam Factory Shanghai Packing Wooden Box Spare Parts Available MOQ 1set Warranty One Year Voltage ,Hz ,Phase Make It to Your Order . Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

Milk Juice Yogurt Meat Rice Soup Jam Jacketed Cooking Pot
Chilii Sauce Kettle Cooking Pot Jacketed Kettle Jacketed Cooking Kettle
Material: SS304/316

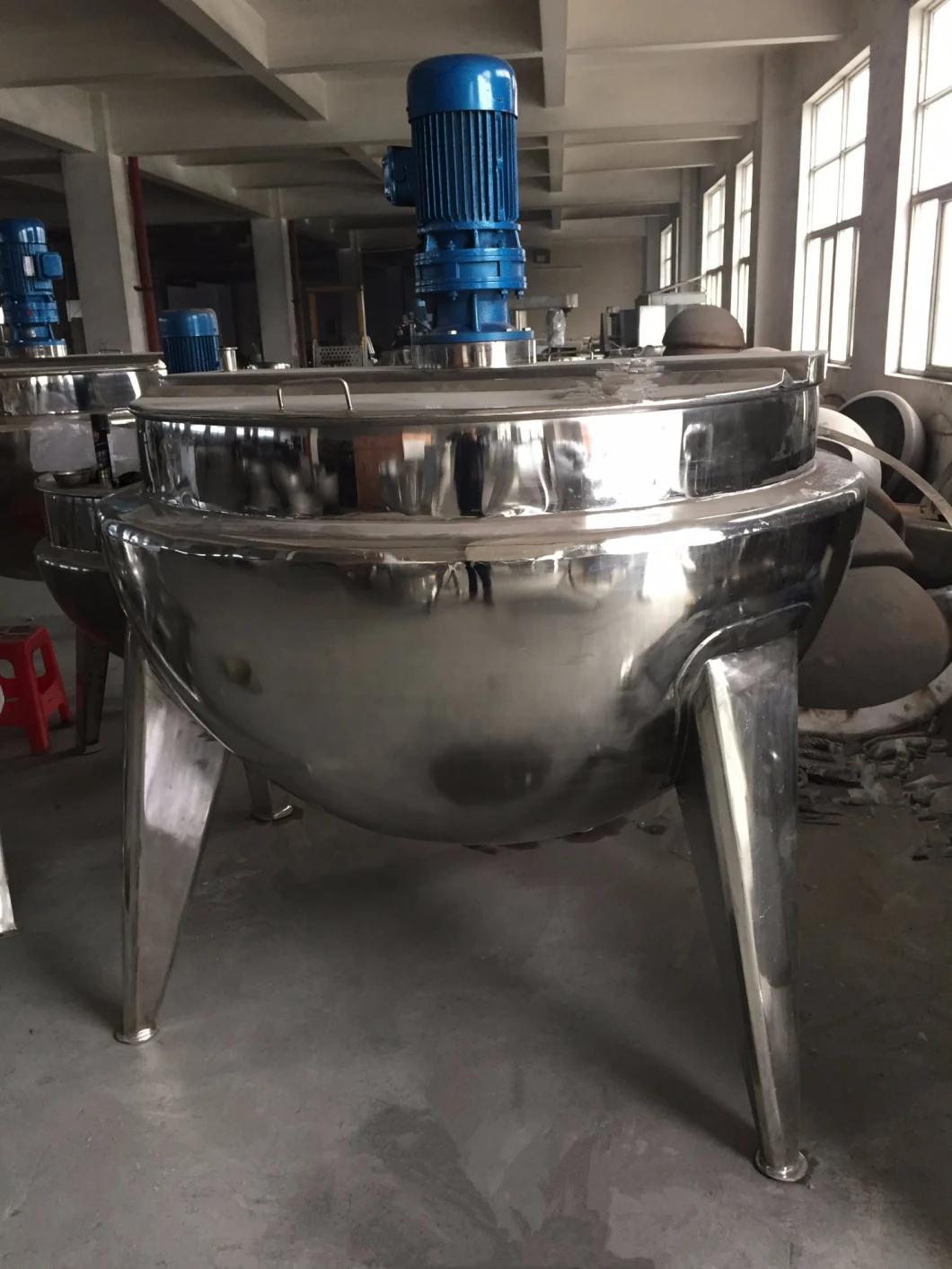

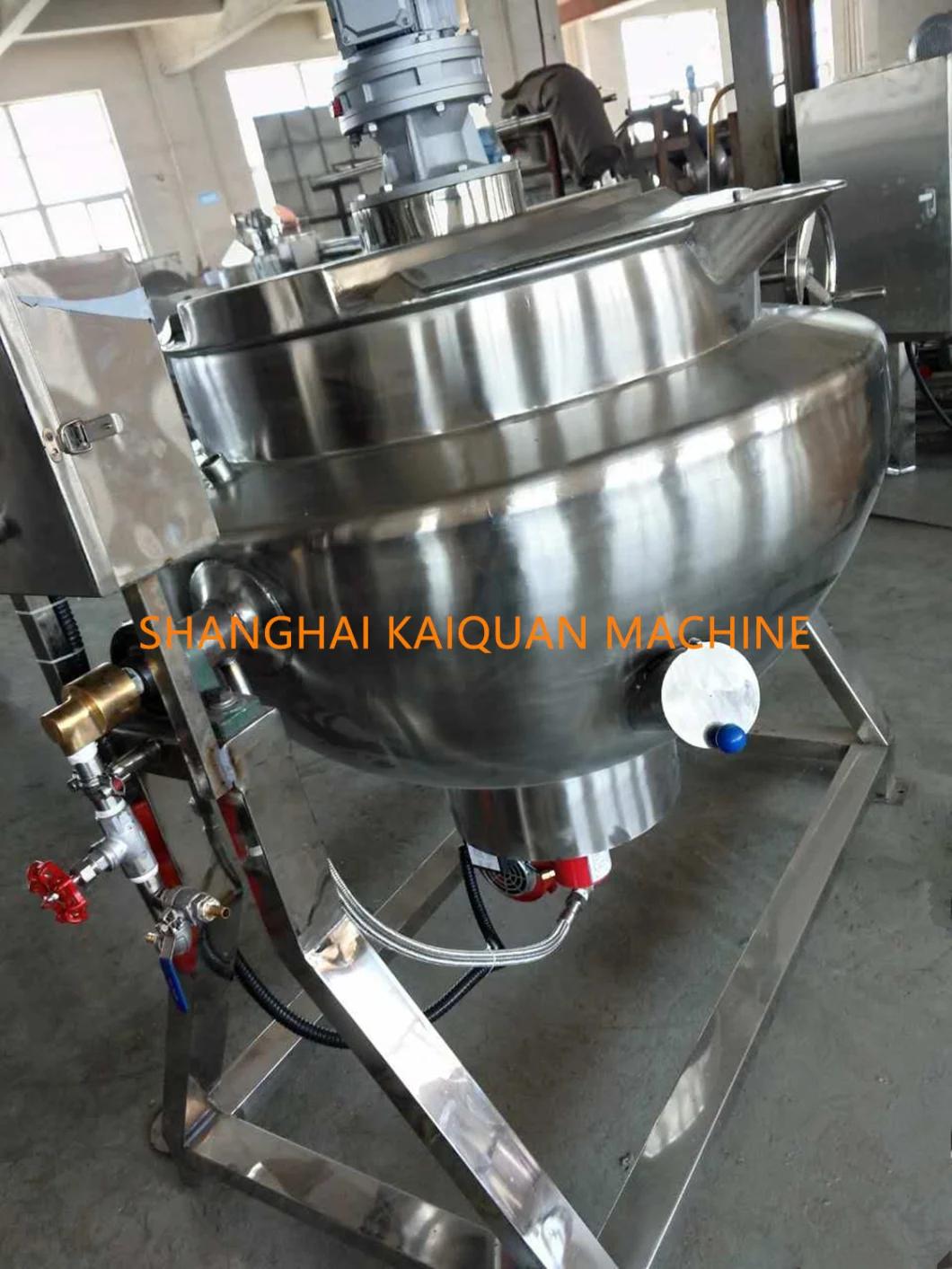

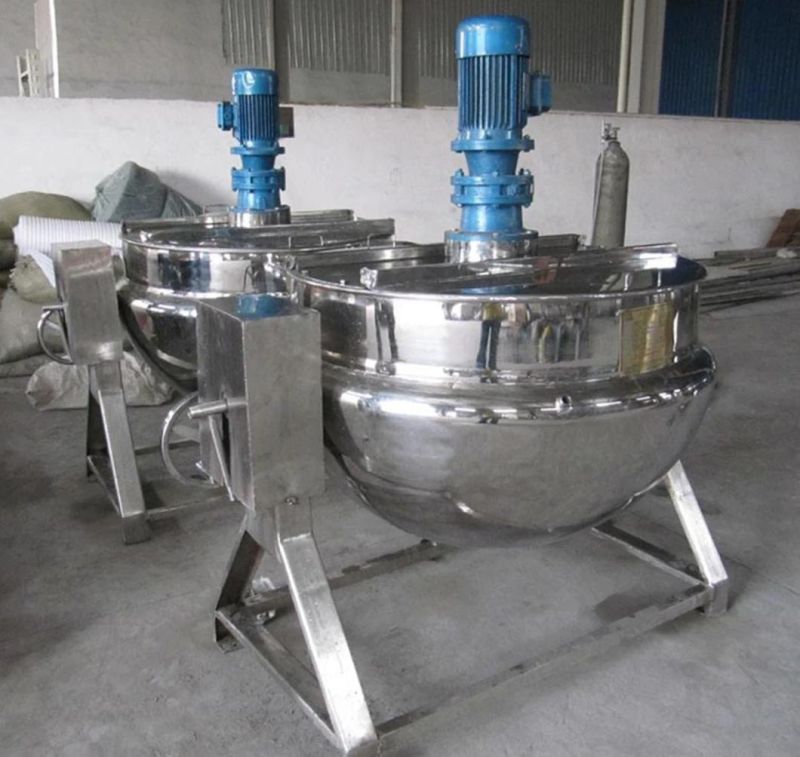

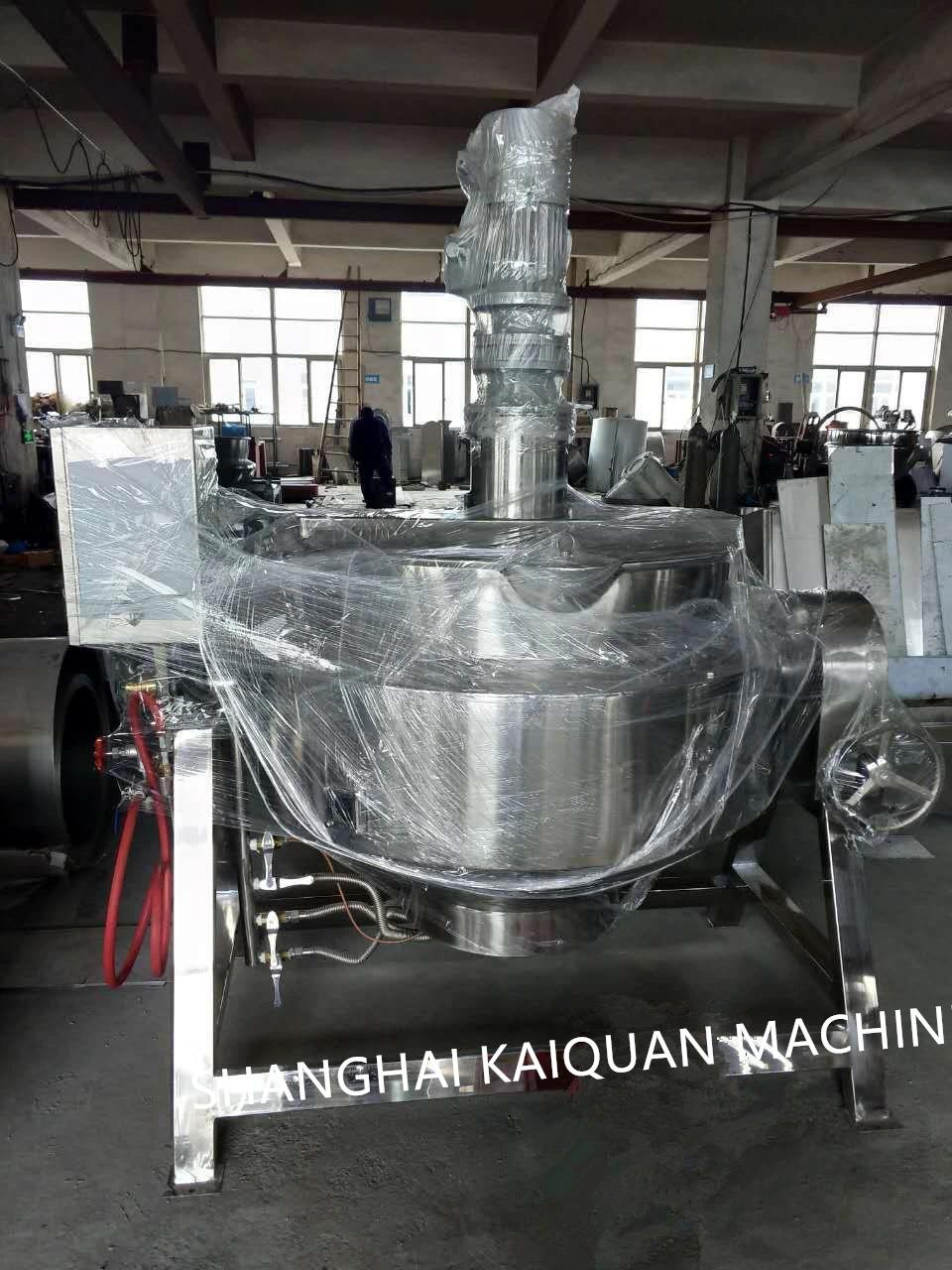

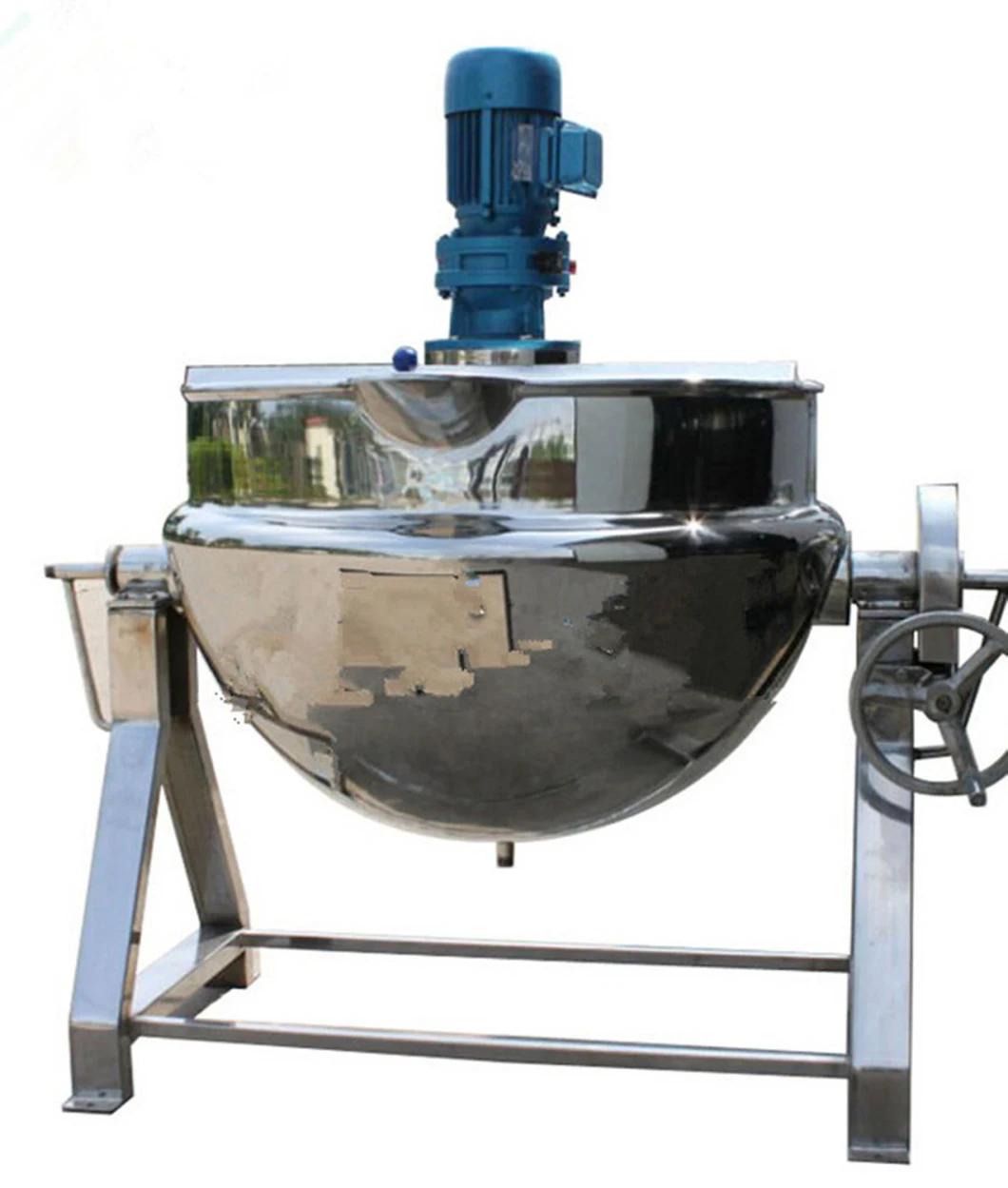

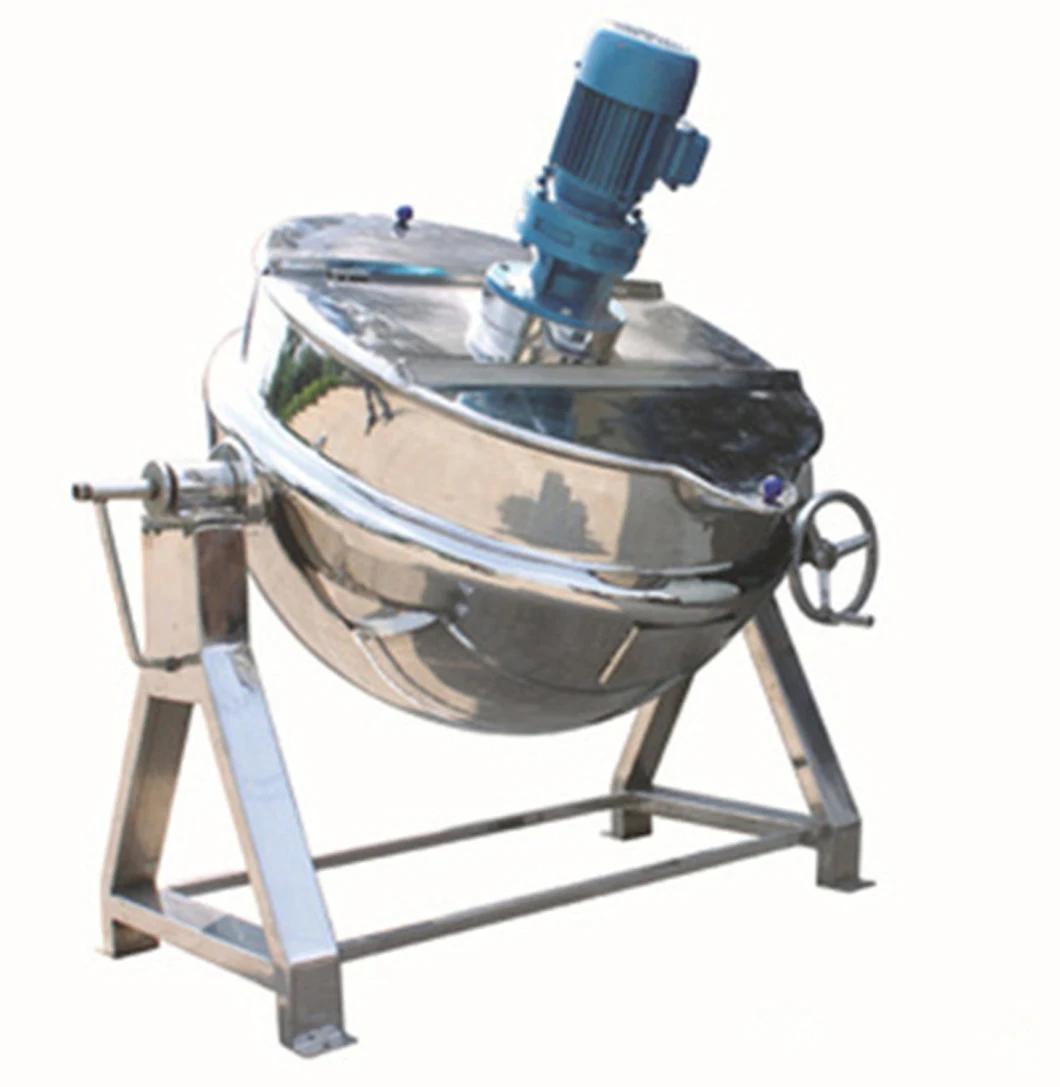

600 L Electric Heating Jacketed kettles
Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc

TankCapacity(L)	200	300	400	500
REV	36r/min, 0.55KW, 380V, 50HZ,  3PHAZE	36r/min, 0.55KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE
Heating Area(M2)	1.0	1.4	2.0	2.0
Vertical Product Dimension(CM)	100*90*155	110*100*160	120*130*165	120*130*165
Material	SS304	SS304	SS304	SS304
WEIGHT GW/NW(KGS)	100	120	180	180
Package	Wooden box	Wooden box	Wooden box	Wooden box

Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 100L~1000L
Application:
Milk Juice Yogurt Meat Rice Soup Jam Jacketed Cooking Pot




Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.
Chilii Sauce Kettle / Cooking Pot
Milk Juice Yogurt Meat Rice Soup Jam Jacketed Cooking Pot .
