• Model NO.：KQ
• Name：2019 Special Design Vertical Type Milk Cooler for
• Material：Stainless Steel 304 , 316
• Capacity：300 L to 10000 L
• Refrigerant：404A , R22
• Compressor：USA Copeland
• Motor Brand：ABB ,Siemens , China Brand
• PU Insulation Wall Thickness：70mm
• Insulation：Rock Wool , Polyurethane Foam
• Outside Shape：Vertical and Horinzontal

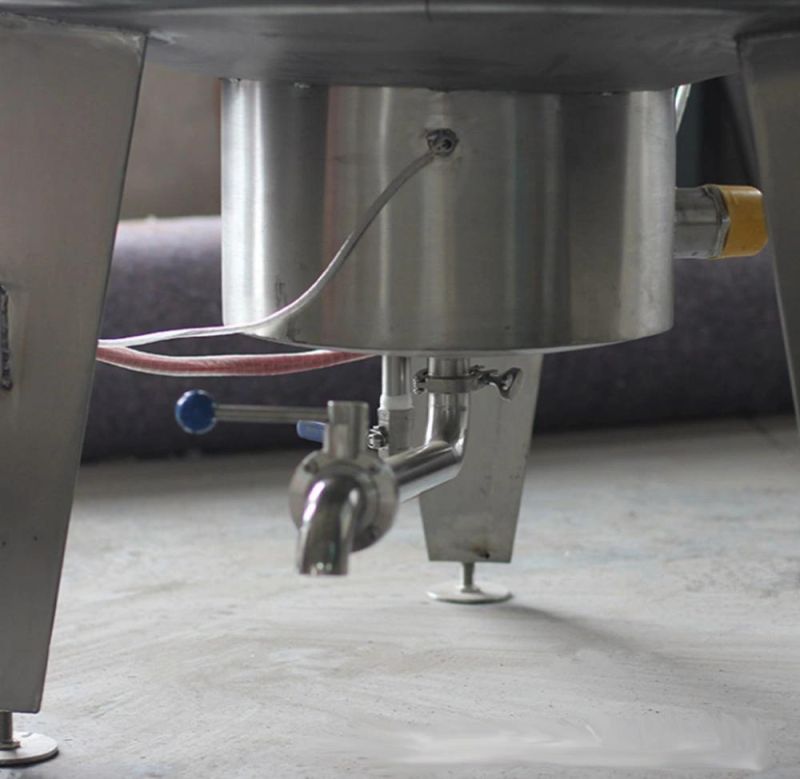

• Outlet：Outlet with Butterfly Valve
• Delivery：10 Days
• Factory：Shanghai
• MOQ：1
• Warranty：1 Year
• Packing：Wooden Box
• Transport Package：Standard
• Specification：Based on special order
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

TypeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)10002000300050006000800010000LRefrigerating Output(W)9000150002200037000380005500074000Refrigerating  Fluid(R)R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22R404/R22Insulating Property≤1C/4h≤1C/4h≤1C/5h≤1C/5h≤1C/5h≤1C/5h≤1C/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.85.97.510.5111319.2Voltage380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T 0.75T0.9T1.1T1.3T


Producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.

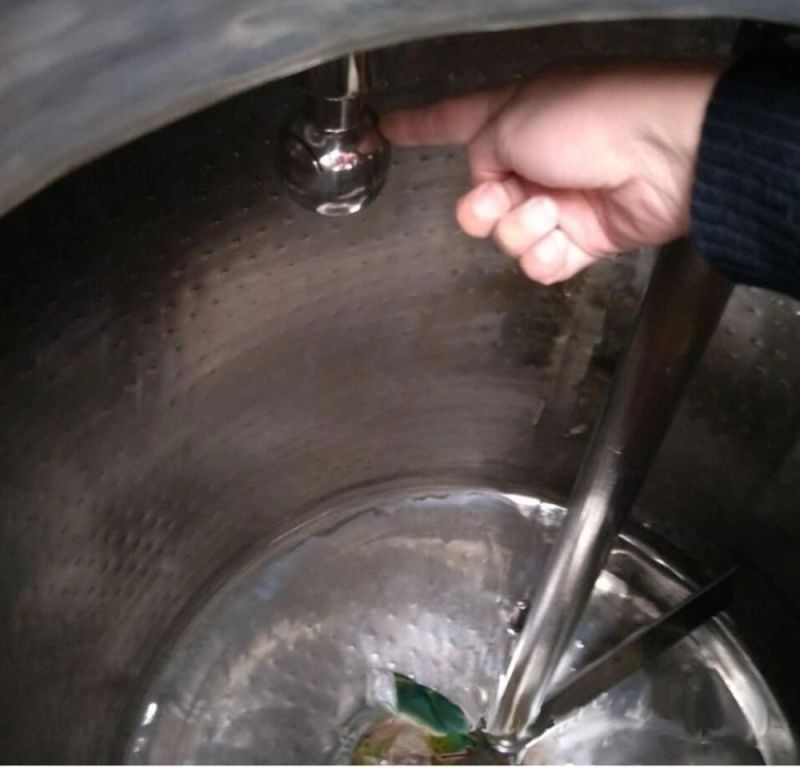

The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

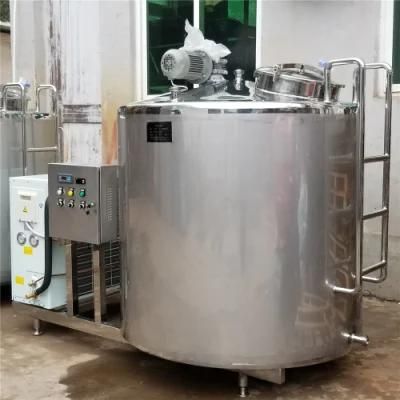

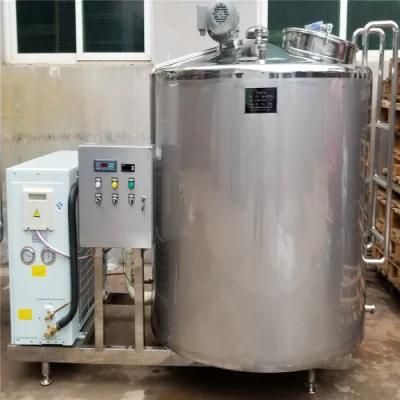

2019 Special Design Vertical Type Milk Cooler For Dairy Farm .
