• Model NO.：KQ -10000L
• Name：Stainless Steel Dairy Milk Cooling Tank with Cooli
• Refrigerant：R404A
• Compressor：USA Copeland
• Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
• PU Insulation Wall Thickness：70mm
• Outside Shape：Vertical and Horinzontal
• Milk Tank Material：Stainless Steel 304,316
• Milk Tank Function：Cooling and Storage Fresh Milk
• Working Electricity：3phz
• Mixer：Equiped
• Transport Package：Standard
• Specification：Based on special order
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying type KQ-6T
 Laying type KQ-8T
 Laying type KQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property ≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed 36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05T
Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk quality

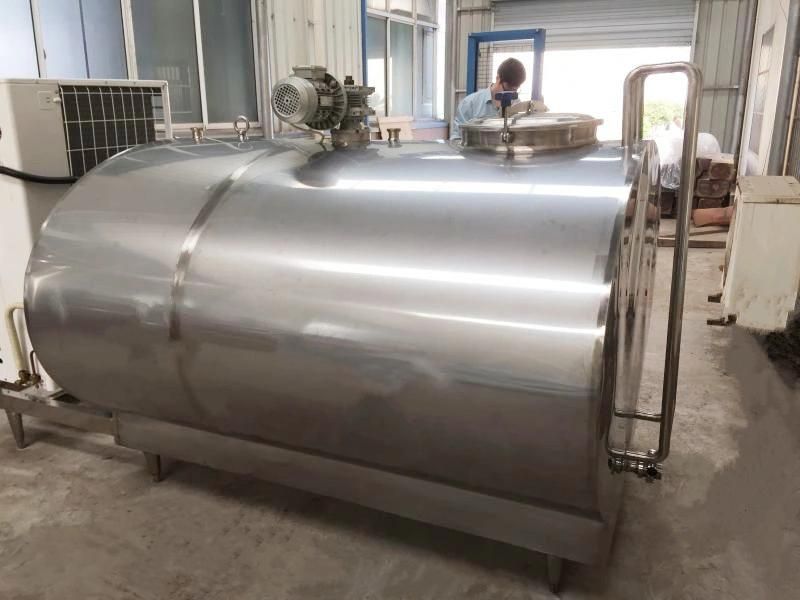

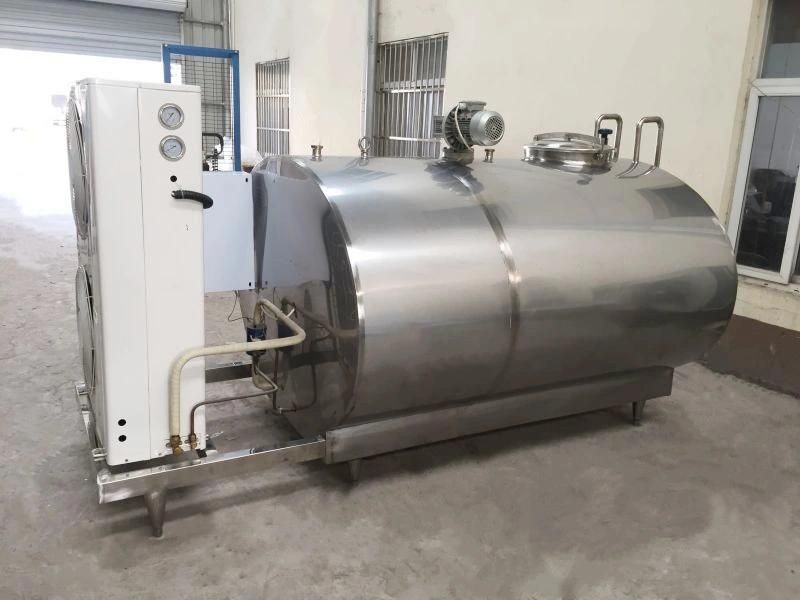

SS304 MILK COOLING TANK
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device
