P 2.5 Indoor Full Color LED Display Module 320*160 mm

Xuzhou Whuchan Co., Ltd
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：2.5mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：160000dots,Sqm
  • Scanning Mode：1,32 Scan

Base Info

  • Model NO.：P2.5
  • System Operating Platform：Win XP, Win 2000, 98, Nt,Win7,8
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP31
  • Certification：CE, RoHS, CCC, FCC
  • Color of LEDs：SMD2121
  • Module Size：320X160mm
  • Module Resolution：128X64dots
  • Brightness：<1500CD,Sq.M
  • Transport Package：Wooden Case or Paper Carton
  • Specification：CE, RoHs, FCC, CCC
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：2000sqm,Month

Description

P2.5 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch2.5mmPixel Configuration1R1G1BLED componentSMD2121 Size of module320mm x 160mmResolution of module128x64dotsSize of cabinet640mm x 480mm x 58mmResolution of cabinet256x192dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet7.6KGSBrightness800~1000cd/sq.mDensity160000dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance2-30MMaximum power consumption1000W/sq.mAverage power consumption350W/sq.mDriving method1/32 scanControl methodSynchronizationGray scale65536Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3000HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Why choose PRT?
  1. PRT is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests
  2. Our prices are high competitive due to our large-scale procurement of raw material.  We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price.

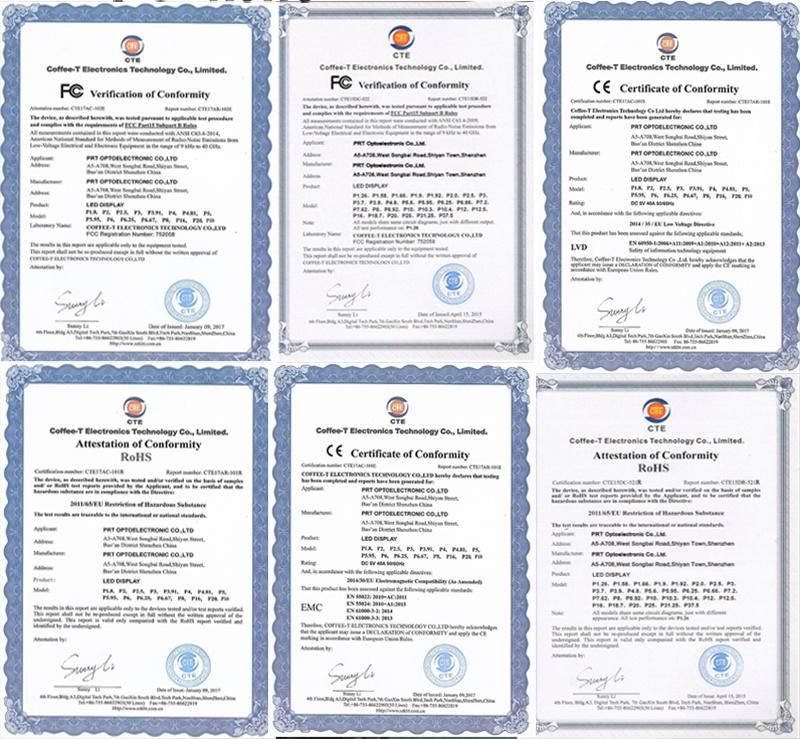

  3. We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China .
  4. We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery.
  5. Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
  6. We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs

P 2.5 Indoor Full Color LED Display Module 320*160 mm
P 2.5 Indoor Full Color LED Display Module 320*160 mm
P 2.5 Indoor Full Color LED Display Module 320*160 mm

Trade terms:
Business term: FOB Shenzhen
Payment term: T/T , usually 30% down payment before production, balance to be paid before delivery/pick up,
Delivery time:Production lead time less 20 sqm is about 8-15days, more than 50 sqm. is about 20 working days
Free sample or not:Sample can be send within 3days
Shipping port: Shenzhen, Mainland China
MOQ:LED Screen 1 sqm / LED module1pcs
Guarantee:Two years quality guarantee
