• Model NO.：LW-FO6
• Pixel Density：10000 dot , m²
• Scanning Mode：1,2 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Configuration：SMD3535
• Module Size：320X160X16
• Cabinet Size：960X960X154
• Binet Weight：36 Kg
• Brightness：>7000CD,M2
• Viewing Angle：H: 120 V: 120
• Cabinet Material：Die-Casting ,Cold Rolled Steel or Aluminum
• IP Rate：Front IP65
• Supply Voltage：AC220V,50Hz; AC110V,60Hz
• Display Capability：Text, Graph and Video
• Transport Package：Wooden Case,Carton Box,Flight Case or as Required
• Specification：CE UL RoHS etc
• Trademark：LED World, OEM, ODM
• Origin：Made in China
• HS Code：8528591090
• Production Capacity：10000sqm Per Moth

ItemsP4mmP5mmP6mmP8mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD2525SMD2727SMD3535SMD3535SMD3535Pixel Pitch4mm5mm6mm8mm10mmPixel Density62500 dots/m240000 dots/m227777 dots/m215625 dots/m210000 dots/m2Module Size(mm)256x128160x160192x96or 192x192256x128320x160Pixels/Module64x3232x3232x16 or 32x3232x1632x16Cabinet Size(mm)768x768960x960960x9601024x1024960x960Pixels/Cabinet192x192192x192160x160128x12896x96Cabinet Weight24KG36KG36KG41KG36KGBrightness>5500cd/>5500cd/>6000cd/>5000cd/7000cd/Viewing Distance>4m>5m>6m>8m>10mPowerMax: 1300Max: 1300Max: 1300Max: 1000Max: 1000Consumption(W/)Ave: 300Ave: 300Ave: 260Ave: 260Ave: 300Driver Mode1/8 scan1/8 scan1/4 scan or 1/81/4 scan or 1/81/2 scanViewing AngleH: 120°;   V: 120°Cabinet MaterialCold Rolled Steel or aluminumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.
Our service:Business Organizationssupermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security companies, insurance companies, post offices, hospitals, schools, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

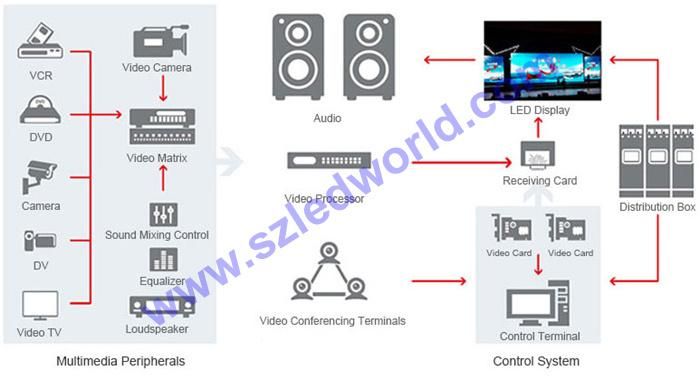

Control system:

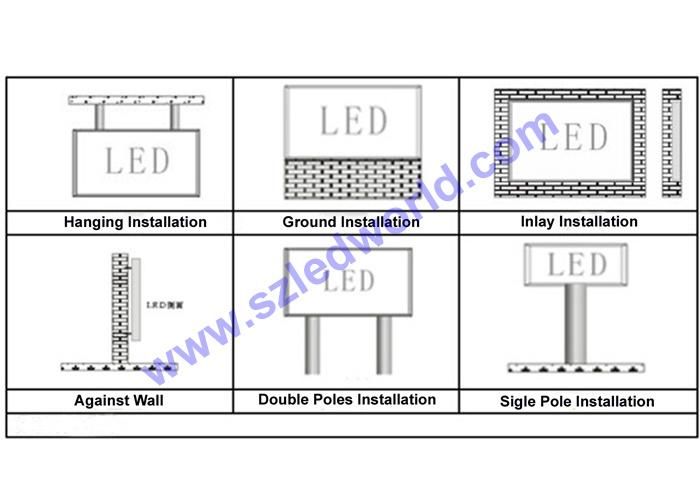

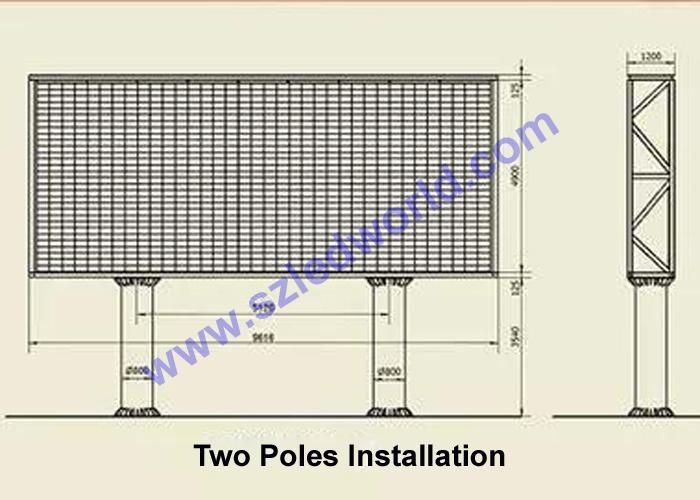

Installation:

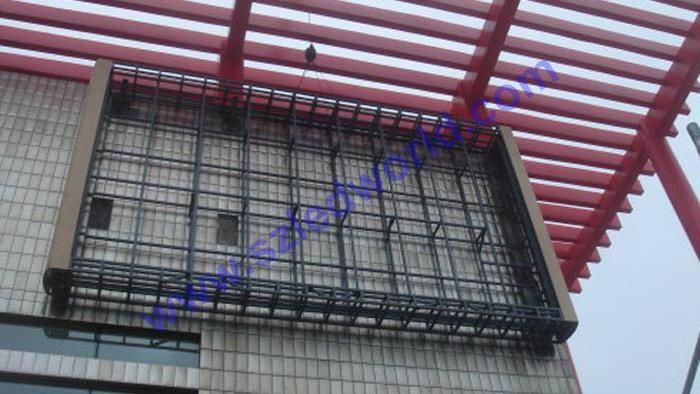

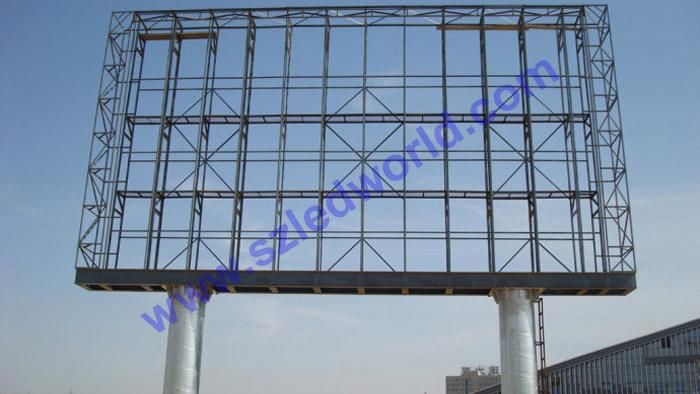

Steel structure:





Certification:



Training:
We offer training for free.
Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.
We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
