• Model NO.：STL12-50W
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, CCC, ISO, GS
• Voltage：DC12V
• Solar Panel Type：Mono or Poly
• Controller：Automatic
• Charging Time：5-8hrs Depends on Local Solar Radiation
• Maintenance：10 Years Free Maintenance
• Lighting Space：>17m
• Back up Days：4 Days
• Mounting Height：3m 4m 5m 6m 7m
• Lighting Time：Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode
• Distance Between Poles：15-20m
• Battery Type：Gel Battery
• Transport Package：Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric
• Specification：A Grade
• Trademark：SunMaster
• Origin：Zhejiang, China.
• HS Code：9405409000
• Production Capacity：3, 000PCS ,Month

Basic Info.

Model NO. STL12-50W Application Highway, Square, Garden IP Rating IP65 Certification CE, RoHS, CCC, ISO, GS Voltage DC12V Solar Panel Type Mono or Poly Controller Automatic Charging Time 5-8hrs Depends on Local Solar Radiation Maintenance 10 Years Free Maintenance Lighting Space >17m Back up Days 4 Days Mounting Height 3m 4m 5m 6m 7m Lighting Time Dusk-to-Dawn 12 Hours with Dim Energy Saving Mode Distance Between Poles 15-20m Battery Type Gel Battery Transport Package Carton,Plywood Box,Pallet,Bubble Film,Woven Fabric Specification A Grade Trademark SunMaster Origin Zhejiang, China. HS Code 9405409000 Production Capacity 3, 000PCS /Month

Product Description

1.Material:heat-emission aluminum lamp body makes the lamp more durable.
2.Solar Panels:High efficiency A grade moudule produce more energy for the lamp in limited space.
3.Battery: LiFePO4 environmentally friendly material for longer lifespan.
4.LED Light:BRIDGELUX 210lm/watt LED chip, give brighter illumination.
5.Controller:MPPT type 15%-20% higher than normal PWM controller.
6.Lighting time:6 to 14 hours per day and 3 to 5 days backup.
7.Infrared Motion Sensor for intelligent lighting and energy saving.
8.Easy installation only needs 60 seconds and totally free maintenance.

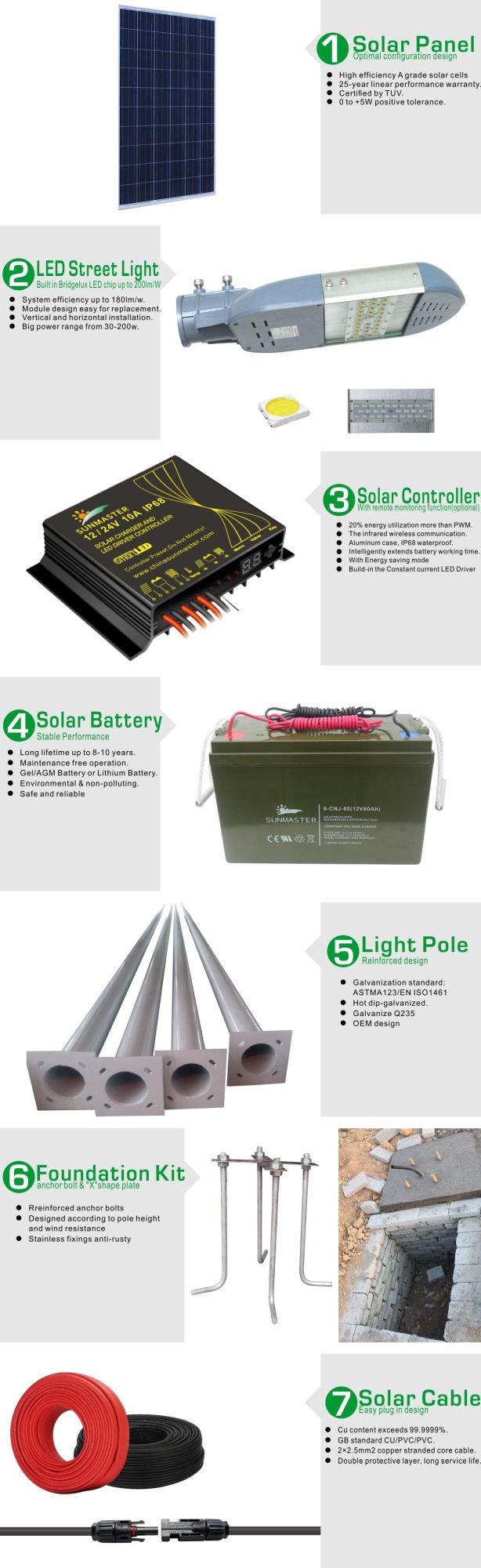

Specification



Lighting Time	10-14hrs/day(adjustable),3-7 rainy days back-up
Solar Panel	Poly solar panel 120W(optional)*1pcs,high efficiency,life span >25years 80% rated output power
Gel Battery	Capacity 50Ah/12v(optional)*2pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years
Solar Controller	MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years
LED Lamp	LED power 50w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs
Light Pole	Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years

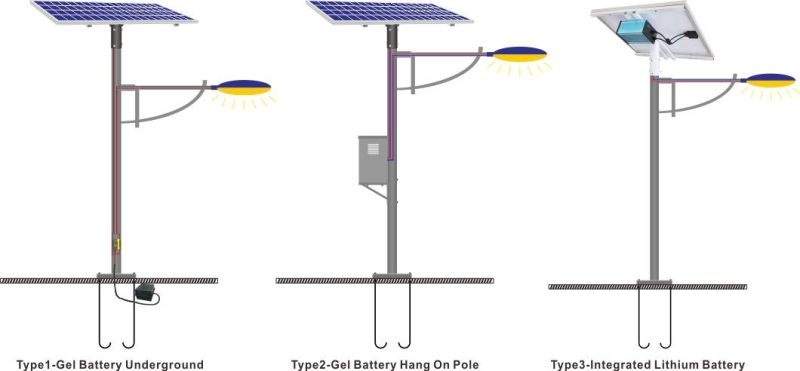

Solar Battery Installtion Position

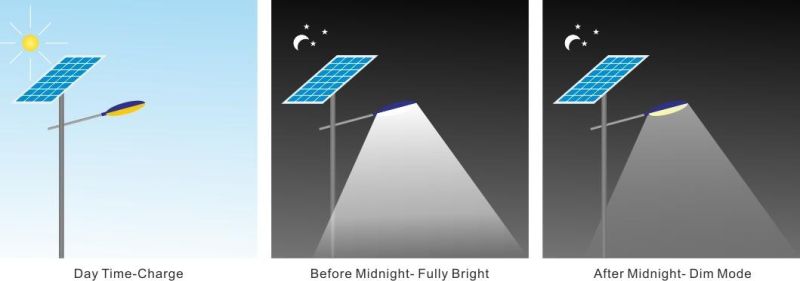

Working Mode



Product Benefits

Recommended configurations



Lamp	Pole	Solar Panel	GEL Battery	Lighting Space	Controller	Working Hours	Backup
20w	3-4m	50w*1pcs	40Ah*1pcs	>12m	MPPT	10-14 hours	3-5days
30w	4-5m	80w*1pcs	60Ah*1pcs	>14m	MPPT	10-14 hours	3-5days
40w	5-6m	100w*1pcs	80Ah*1pcs	>15m	MPPT	10-14hours	3-5 days
50w	6-7m	120w*1pcs	50Ah*2pcs	>17m	MPPT	10-14 hours	3-5days
60w	7-8m	150w*1pcs	60Ah*2pcs	>20m	MPPT	10-14 hours	3-5 days
70w	7-8m	180w*1pcs	70Ah*2pcs	>22m	MPPT	10-14 hours	3-5 days
80w	8-9m	200w*1pcs	80Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
90w	8-9m	120w*2pcs	90Ah*2pcs	>24m	MPPT	10-14 hours	3-5 days
100w	9-10m	130w*2pcs	100Ah*2pcs	>27m	MPPT	10-14 hours	3-5 days
120w	10-11m	150w*2pcs	120Ah*2pcs	>30m	MPPT	10-14 hours	3-5 days
140w	11-12m	180w*2pcs	140Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
150w	11-12m	200w*2pcs	150Ah*2pcs	>33m	MPPT	10-14 hours	3-5 days
180w	12-13m	250w*2pcs	180Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days
200w	12-13m	280w*2pcs	200Ah*2pcs	>35m	MPPT	10-14 hours	3-5 days

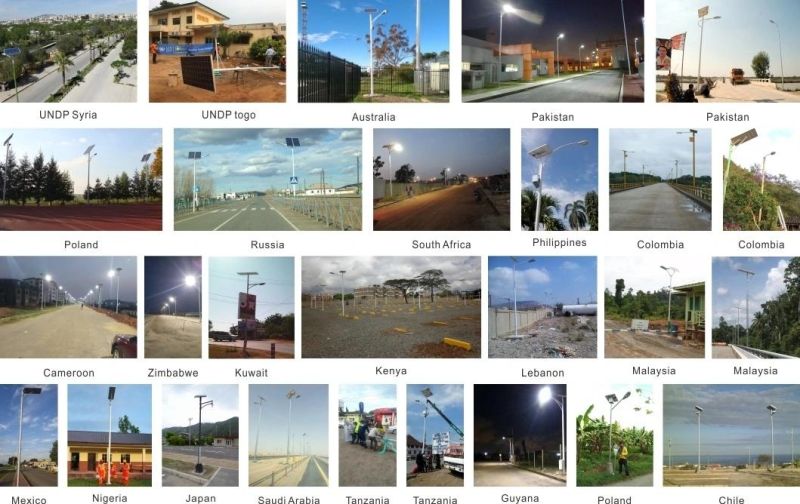

Project Case
