• Model NO.：BB-LD-S100W
• IP Rating：IP56
• Certification：CE, RoHS, ETL Dlc
• Voltage：100-277 V
• Item Name：Ultra Bright UL Meanwell Street Lighting
• Chips：Bridgelux
• Base：2 Pin Wires
• Colour：Cold White, Warm White Natural White
• Wattage：100
• Lumnes：10000
• Working Temperature：-40-50
• Working Lifetime(Hour)：50000
• Applicated：Industry Warehouse Gas Station
• Certificate：CE RoHS
• Transport Package：4 Pieces a Carton 86*46*65cm
• Specification：CE RoHS. SGS
• Trademark：Bbier lighting Co, ltd
• Origin：Shenzhen City, Guangdong Province China
• HS Code：8541401000
• Production Capacity：300 Per Day

Basic Info.

Model NO. BB-LD-S100W IP Rating IP56 Certification CE, RoHS, ETL Dlc Voltage 100-277 V Item Name Ultra Bright UL Meanwell Street Lighting Chips Bridgelux Base 2 Pin Wires Colour Cold White, Warm White Natural White Wattage 100 Lumnes 10000 Working Temperature -40-50 Working Lifetime(Hour) 50000 Applicated Industry Warehouse Gas Station Certificate CE RoHS Transport Package 4 Pieces a Carton 86*46*65cm Specification CE RoHS. SGS Trademark Bbier lighting Co, ltd Origin Shenzhen City, Guangdong Province China HS Code 8541401000 Production Capacity 300 Per Day

Product Description

LED Replacement HPS E40 100W LED post top retrofit with Mogul Base-L

Product Description

GENERAL DESCRIPTION

LED Pole Top Area Light 100W with Twistlock Photocell, Twistlock Photocell post top lighting provides excellent illuminative solutions to parking areas, airports, roadways, campuses and streetscapes.Photocells are sensors to detect light,120V-277V & 480V twistlock photocell included.


STRUCTURE, MATERIALS, & FEATURES

1. Photocells are sensors to detect light
2. Light from the top
3. Mounting made simple
4. Air-flow fins for maximum heat dissipation
5. LED light output equivalent to 300W metal halide with 100W
6. For use in environments up to 40°C.
7. It's major to replace traditional area lighting
8. Wide colour availability in degrees Kelvin(K),2700-6700K
9. Certified to U.S. and Canadian standards. IP65 Rated
10. Ideal for large outdoor areas such as parking lots, corporate parks, and retail settings
For dusk-til-dawn lighting control, try this selection of locking-type photocells of LED Pole Top Area Lighting. These simple sensors detect changes in light and turn fixtures on or off. Conventional photocells of Post Top Lighting can be used for traditional outdoor lighting sources like outdoor areas such as parking lots,corporate parks,and retail settings.

ADDITIONAL INFORMATION

Item No.	BB-LD-100W-AR-B-P
Rated Watts	100 Watt
Input Voltage	100-277VAC / 50-60Hz
Luminous Flux	12000 lm
Driver	UL listed power supply,  Dimming Available
With Sensor	Microwave sensor Daily sensor available
Beam Angle	120°
Light Source/Count	SMD LED
Color Rendering Index (CRI)	85
Operating Temperature	-40° ~ 45°
IP	67
LED Luminous Efficiency	120lm/w 150lm/w available
Color Temperature	2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
LED Emitter Life	50,000 hours at 25°C
Application	large outdoor areas such as parking lots, corporate parks, and retail settings

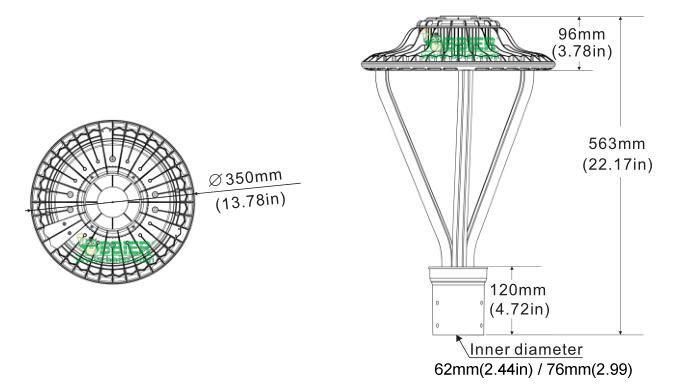

The Dimensions	450mm(17.71in) x 450mm(17.71in) x650mm(25.59in)
Packing	1pcs/Carton
Warranty	3 Years
