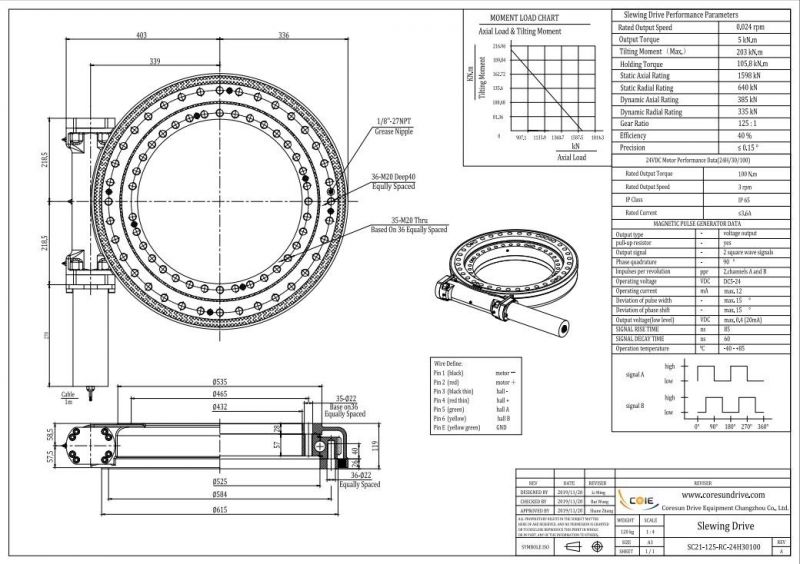

• Model NO.：SC21-125-RC-2415300-REV. A
• Static Axial Load：1598kn
• Static Radial Laod：640kn
• Outer Dia.M：584mm
• Inner Dia.M：465mm
• Transport Package：Standard Wooden Case
• Specification：SC21-125-RC-2415300-REV. A
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

Solar tracker must have smooth, slow and sturdy motion. The tracker should possess high position accuracy and high degree of reliability. These requirements can be attained by specially designed drivers known as slewing drivers.

Accuracy: 0.1 Degree

Available: 3 inch - 25 inch

Horizontal installation

It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis. For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

Vertical installation

It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection. For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

1. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously.

2. Slewing drive is widely applied in modular trailers, all types of cranes, aerial working platform, solar tracking systems and wind power systems.

3. Electric and planetary gearboxes can be designed according to customer's requirement.

4. Slewing drive has the advantage of saving space in facilities, max load capacity in a compact design, extensive lifespan, reduced maintenance costs, etc.

Coresun provide the following services to our clients:

1. Finding the right suppliers well suited your requests ( not only cheaper).
2. Providing Dewin Dolphin Report with the real information about the suppliers to help you see the unseen and make the correct decision.
3. Making sure the process of production is according to TS 16949 (IATF 16949)or our common agreement.
4. Providing financial support to our VIP partners to help them getting the big project from their clients.

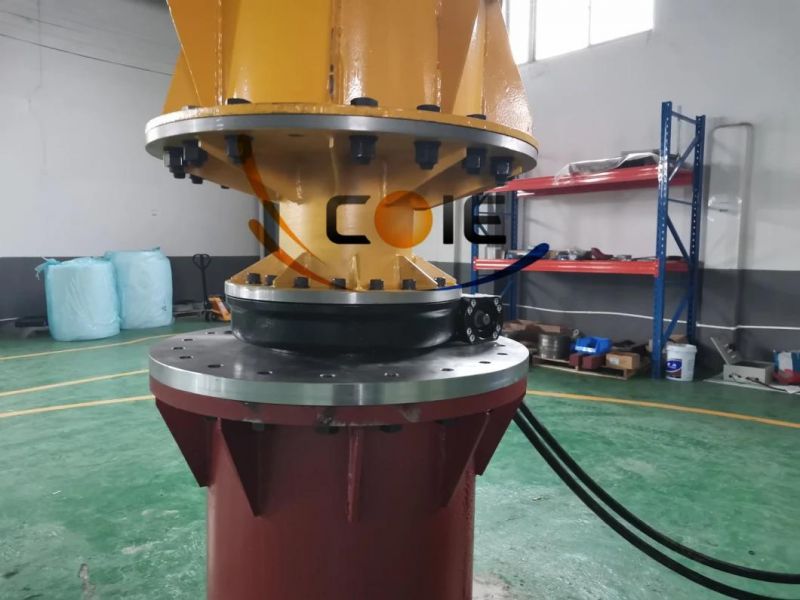

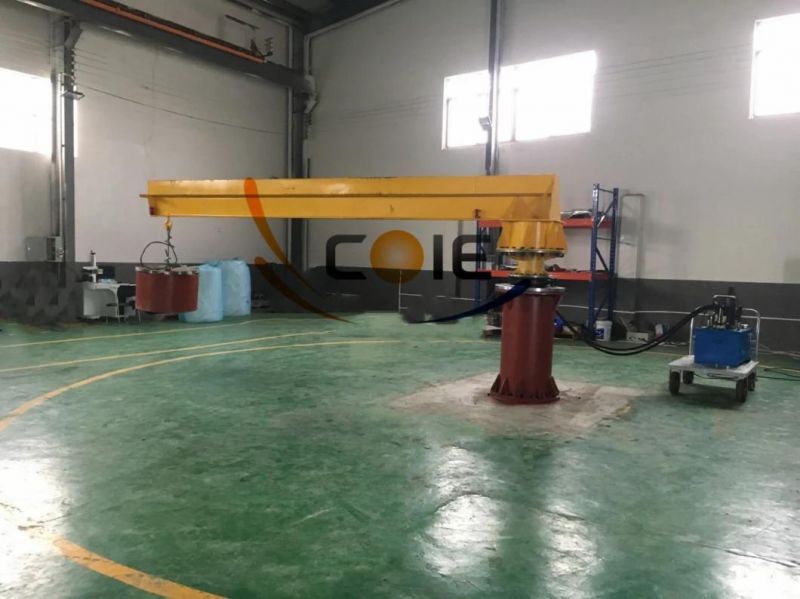

Coresun Drive Slewing Bearing Testing Photo

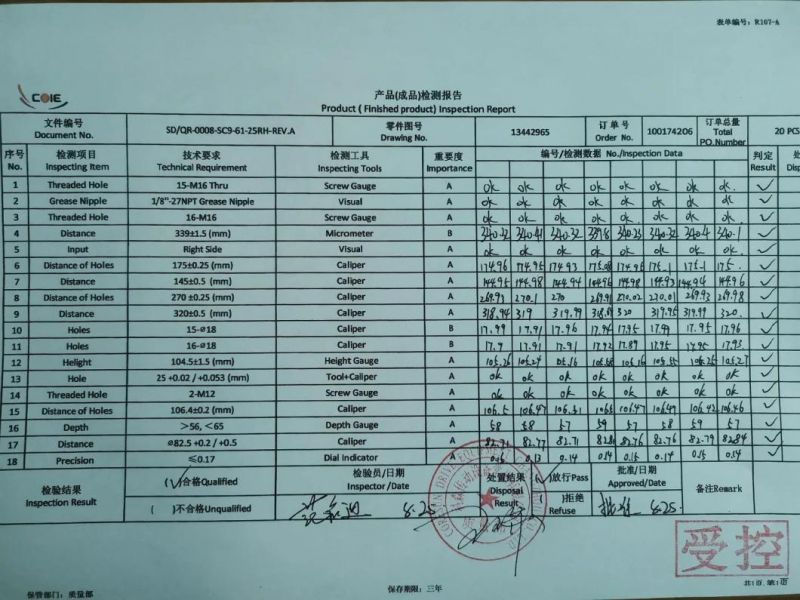

SC21 Slewing Drive Slewing Bearing Worm Testing Report
