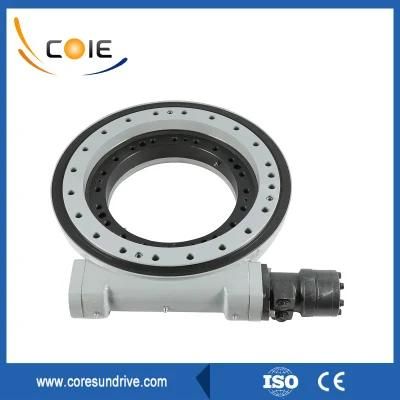

• Model NO.：SC21-125-25RH-250A
• IP Class：IP65
• Static Axial Load：1598kn
• Static Radial Laod：640kn
• Outer Dia.M：584mm
• Inner Dia.M：465mm
• Color：Grey
• Hydraulic Motor：Yes
• Transport Package：Standard Wooden Case
• Specification：SC21-125-25RH-250A
• Trademark：Coresun Drive
• Origin：Changzhou
• HS Code：8483409000
• Production Capacity：3000PCS,Month

Model Slewing BearingSC21BrandCorresun DriveHolding Torque105.8kN.mTilting Moment Torque203kN.mSelf-lockingYesGear Ratio125:1Outer Dia.584mmInner Dia.465mmEfficiency40%Output Torque15kN.mRated Output Speed1.2rpmColarGrey

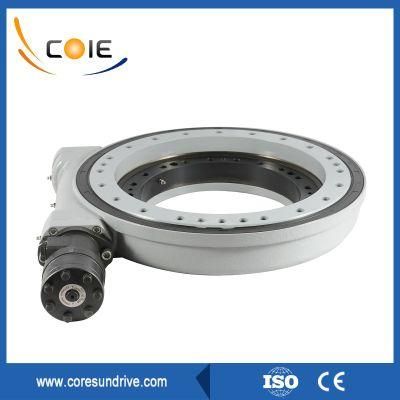

The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive features easy installation, easy maintenance and a greater degree of installation space.

Compared with traditional rotating products, the spherical worm wheel rotary drive has the advantages of simple installation, easy maintenance and more space saving.The product can be widely used in the field of construction machinery and new energy, such as heavy plate transporter, container crane, truck crane, aerial working vehicle, solar power generation system and so on.

Slewing bearing Center distance of raceway: 200~5000mm various standard and non-standard slewing bearings. Professional production: single volleyball type (01 series, HS series, Q series, FQ series, M0 series, C, J01 series, G01 series), double volleyball type (02 series, C, J02 series, G02 series), three-row rolling Column type (13 series, S series, C, J13 series, G13 series), single row cross roller type (11 series, J series, M1 series, G11 series), double row ball type (07 series), light series ( Q series) and six combined series of ball and column. Products are widely used in construction machinery, construction machinery, wind power, ship and port equipment, metallurgical and mining equipment, environmental protection machinery, light industry machinery, petrochemical machinery, military machinery and non-standard equipment and other fields

Coresun provide the following services to our clients:

1. Finding the right suppliers well suited your requests ( not only cheaper).
2. Providing Dewin Dolphin Report with the real information about the suppliers to help you see the unseen and make the correct decision.
3. Making sure the process of production is according to TS 16949 (IATF 16949)or our common agreement.
4. Providing financial support to our VIP partners to help them getting the big project from their clients.

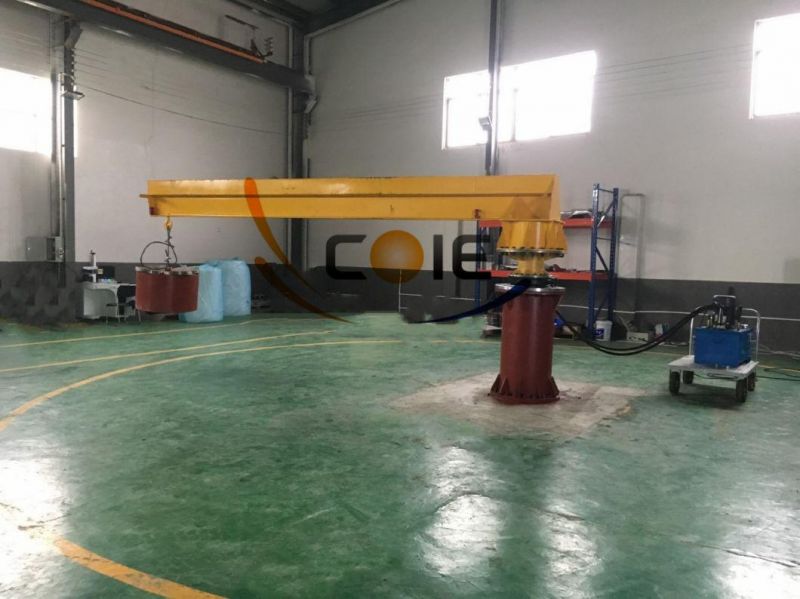

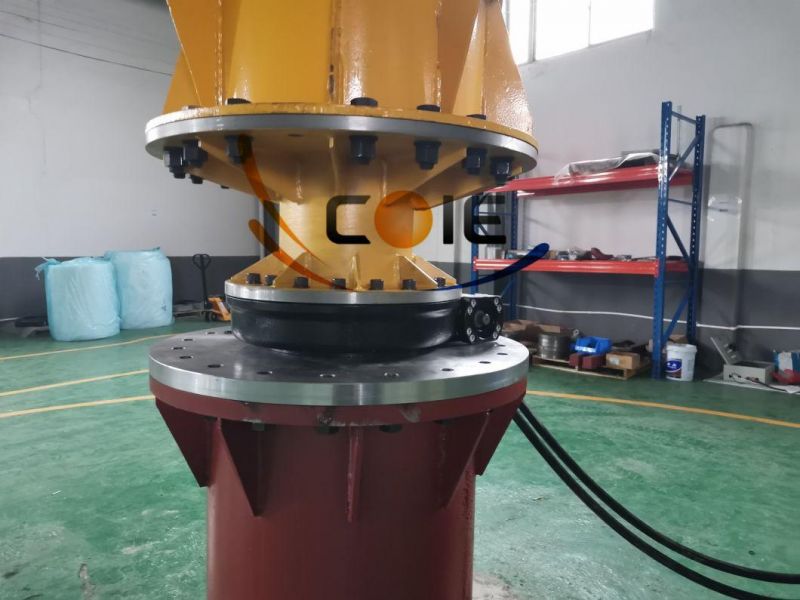

Coresun Drive Slewing Bearing Testing Photo

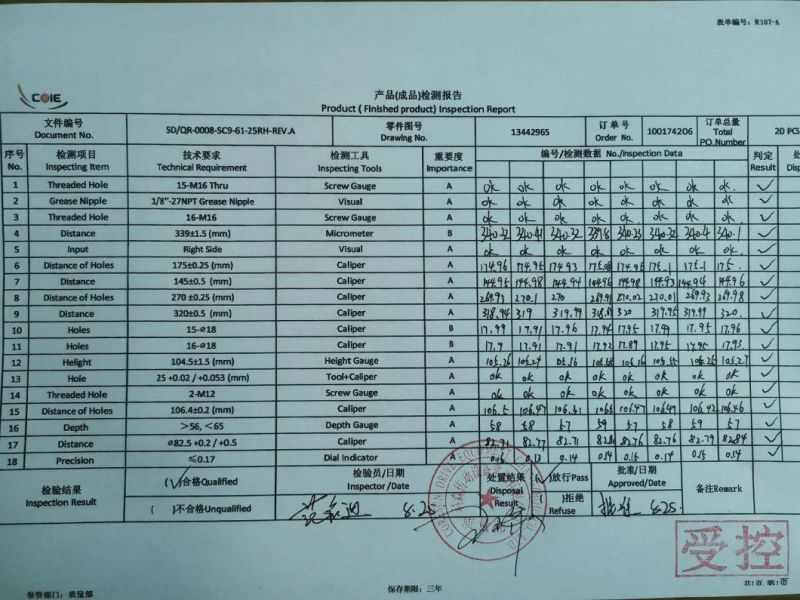

SC21 Slewing Drive Slewing Bearing Worm Testing Report
