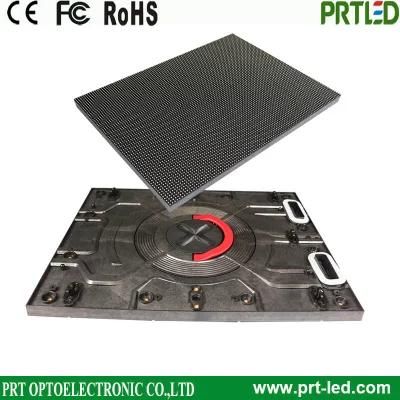

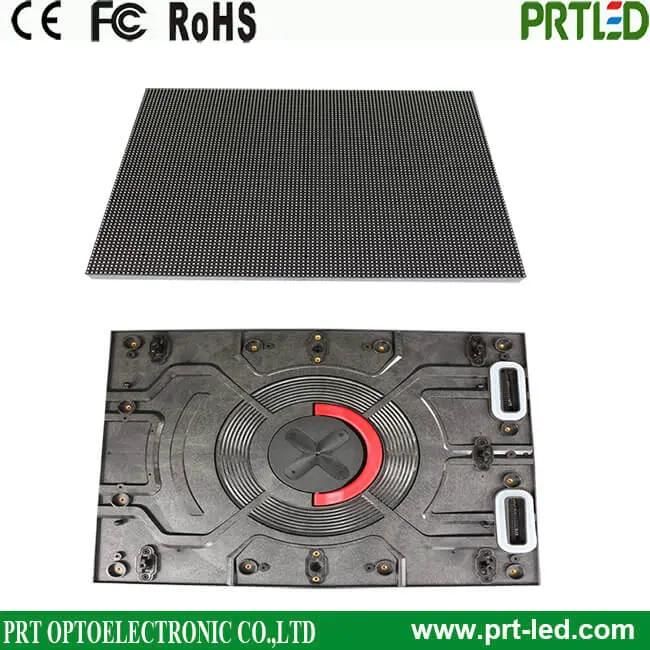

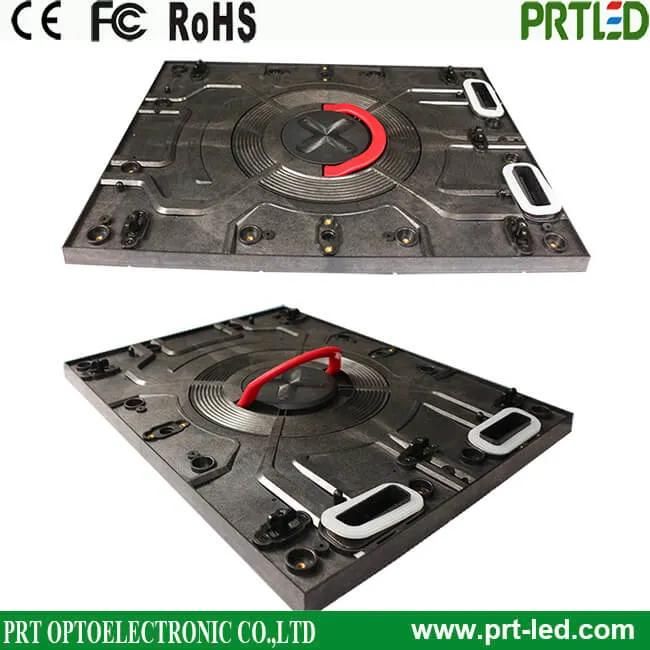

Outdoor P5 Full Color LED Display Module 400X300mm
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：5mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Market Display
- Average Power Consumption：280W,Sq.M
Base Info
- Model NO.：P5
- Pixel Density：40000dots,Sq.M
- Scanning Mode：1,6scan
- Display Type：LED Video Display

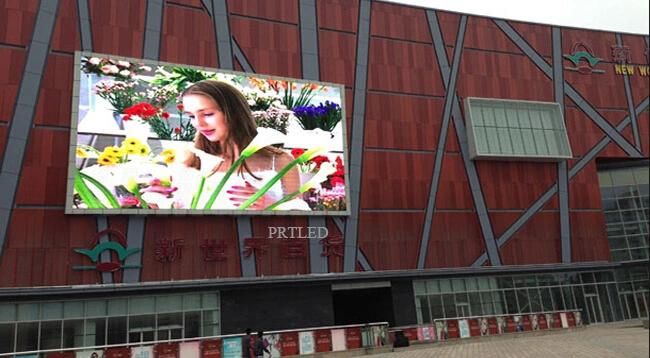

- Application：Advertising, Stage Performance, Rental
- Certification：CE, RoHS, CCC
- LED Encapsulation：SMD1921
- Module Size：400 X 300 mm
- Module Resolution：80 X 60 Dots

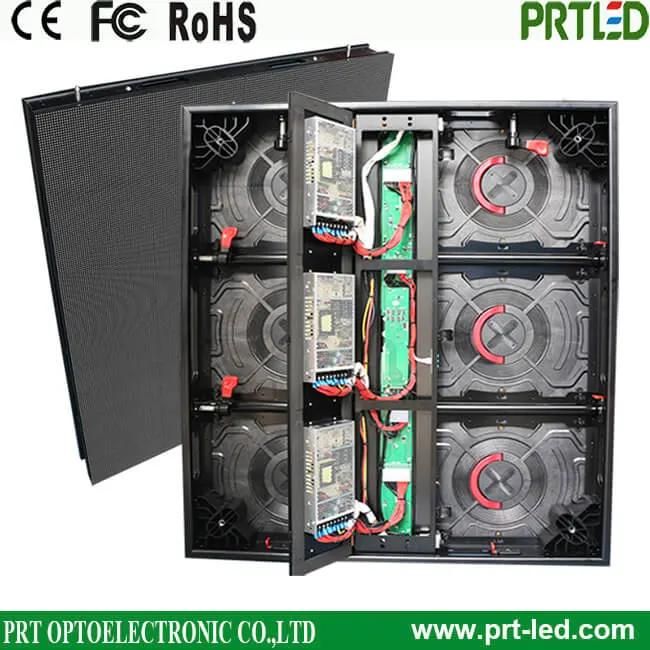

- Cabinet Size：800 X 1200 mm
- Transport Package：Wooden Case or as Required
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen China
- HS Code：8528591090
- Production Capacity：2000sq. M,Month
Description
P5 SMD Outdoor full Color LED Panel 800x1200mmPixel pitch 5 mm Size of module W400 x H 3000 mm Resolution of module 80 x 60dots Brightness >7000 cd/m Density 40000dots/m² Best viewing angle 160° /160° Pixel Configuration 1R1G1B Best viewing distance 5-200M Maximum power consumption <780W/m² Average power consumption <280W/m² Driving method 1/6scan Control method Synchronization Maintenance Rear /Front service Gray scale 16 bits Color temperature 6500k ~9300K Working voltage AC220±10% Working temperature -35ºC~+80ºC Storage temperature -55ºC~+120ºC Operating humidity 10% ~90% MTBF 10000 hours Frame frequence 50/60Hz Refresh frequence >1920Hz IP grade(Front/Back) IP65/IP65 Life Span >100,000 hours Data transafer method RJ45 Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Systems operating platform WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development
All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers
Why choose PRT?
Distance(without relay)
Single-mode optic fiber: 10KM
All of PRTLED's products produced based on the quality standard of CE,ROHS,FCC,and with strict control system to confirm no problem for each process,and before packing, test the whole screens with 72 hours at least,to ensure good stability,with less after-sale service, so we obtained a good reputation from customers
Why choose PRT?

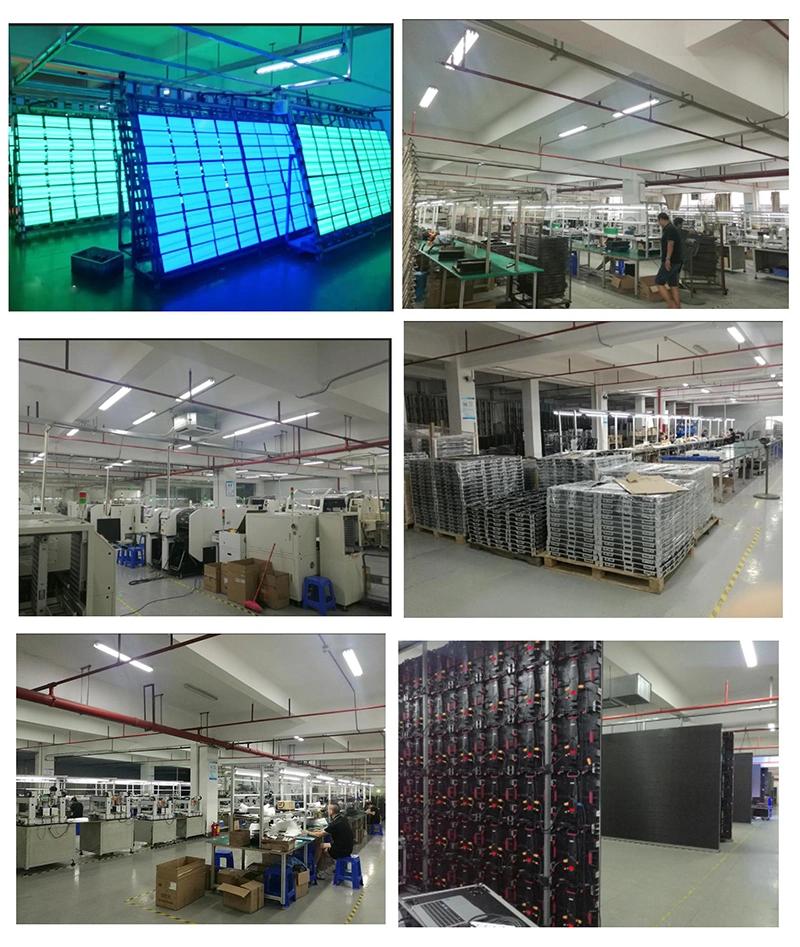

- PRT is a professional manufacturer of LED display screens more than years. We have strong R&D team to ensure high end products with user-friendly design ,and often updated to meet different requests
- Our prices are high competitive due to our large-scale procurement of raw material. We can help you to win more orders if you are distributors.also the end users will also be satisfied with our quality and price.

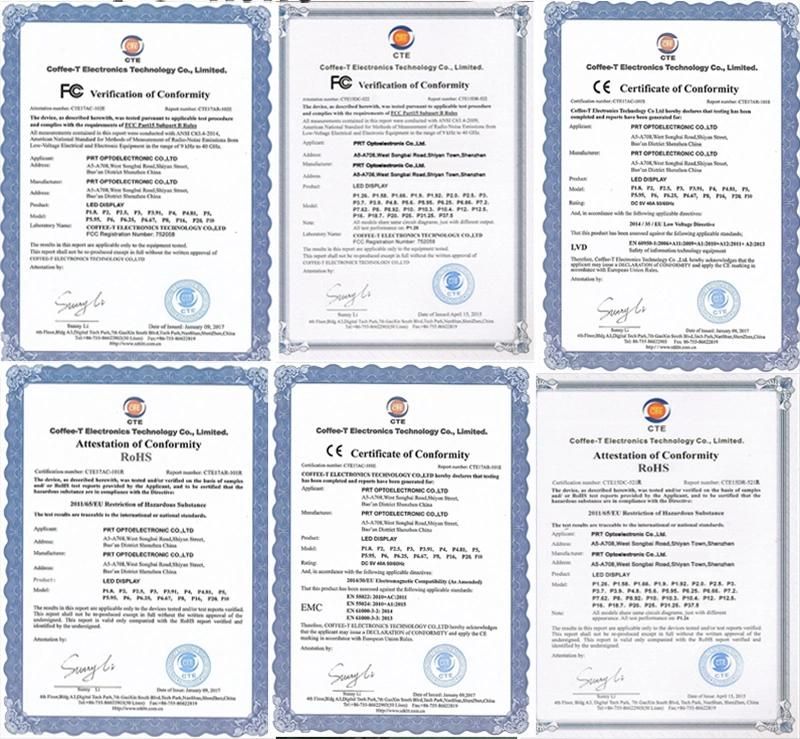

- We have CE, FCC and RoHs certifications to confirm the quality. our products have been sent out to more than 50 countries .We have rich experience in handling all problems when you import goods from China .
- We have a wide variety of products for you to choose from P0.9mm to P10mm for indoor,and P2.6 to P16 for outdoor.All products are strictly tested before release to next process, and we test every LED screen 72 hours before delivery.
- Our salesmen/saleswomen have gotten well training to provide customers with professional advice on specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
- We offer 2-3 years warranty and life time maintenance .Even after warranty time expired , we will only charge material costs
