• Model NO.：E-F16
• Pixel Density：15625dots,Sqm
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• LED Type：SMD3535
• Module Size：256X128mm
• Cabinet Size：1024X768mm
• Brightness：6000CD,Sqm
• Grey Scale：14bit
• Refresh Rate：1920Hz
• IP Grade：F:IP65,R:IP54
• Controller：Novastar,Linsn
• Maintenance：Rear Service
• Input Voltage：AC 100-240V
• Frame Frequency：60Hz
• Certificates：RoHS,Ce,CCC
• Viewing Angle：H:140 , V: 140
• Transport Package：Wooden Case
• Specification：1024X768mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. E-F16 Pixel Density 15625dots/Sqm Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL LED Type SMD3535 Module Size 256X128mm Cabinet Size 1024X768mm Brightness 6000CD/Sqm Grey Scale 14bit Refresh Rate 1920Hz IP Grade F:IP65/R:IP54 Controller Novastar/Linsn Maintenance Rear Service Input Voltage AC 100-240V Frame Frequency 60Hz Certificates RoHS/Ce/CCC Viewing Angle H:140 / V: 140 Transport Package Wooden Case Specification 1024X768mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

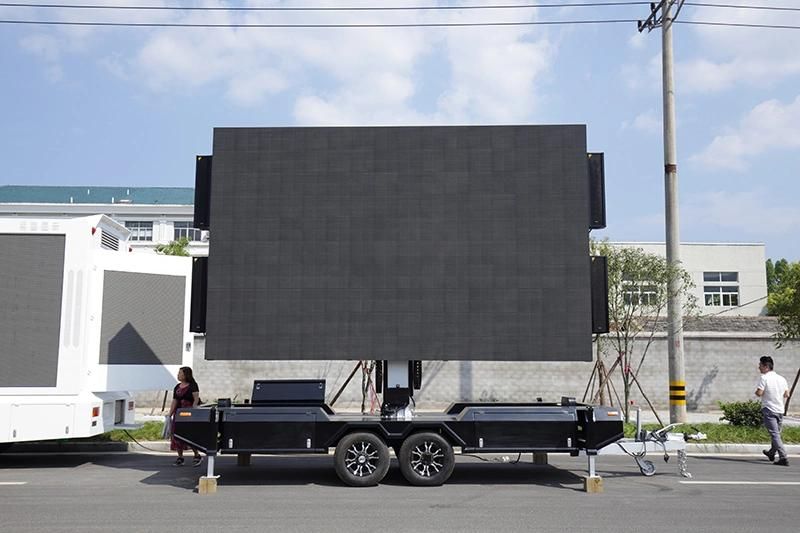

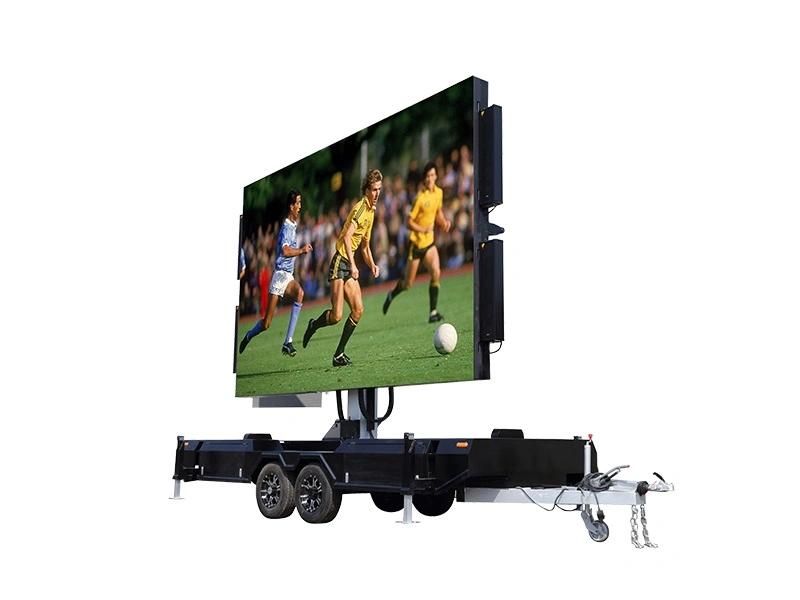

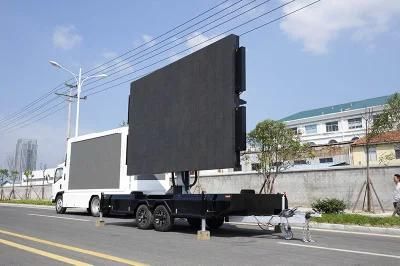

E-F16 Series Product Features:

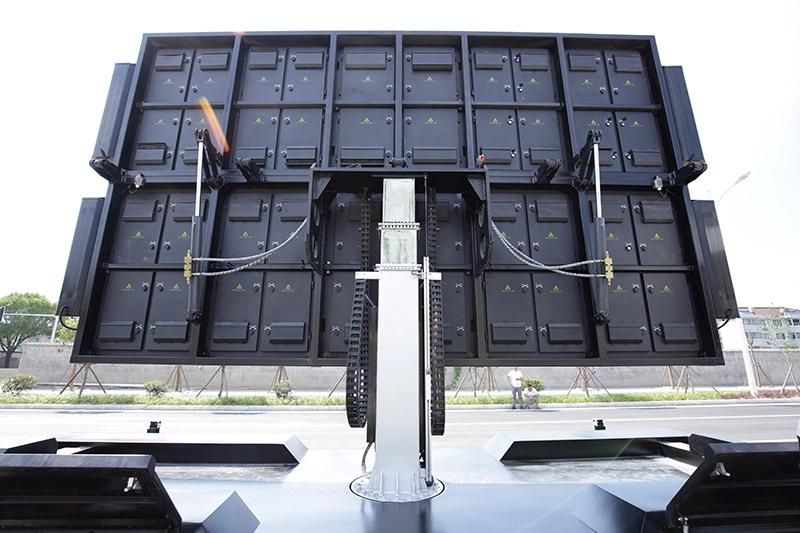

Double sides visual

Optional power, remote control moving

Fashion appearance , science and technology move feeling

Custom design as you like




PRODUCT SPECIFICATIONS:

NO.	DIsplay Parameters	Specifications
1	Diplay Model	FS8
2	Pixel Pitch (mm)	8
3	Physical Density (dot/m2)	15625
4	LED Configuration	1R1G1B
5	LED Type	SMD3535
6	Module Size (mm x mm)	256x128
7	Module Resolution (PX x PX)	32x16
8	Drive Mode	1/4 Constant Current Drive
9	Viewing Angle (Deg)	H:140 / V: 140
10	Brightness (cd/m2)	6,000
11	Grey Scale	14 bits
12	Refresh Rate (Hz)	1920
13	Cabinet Resolution (PX x PX)	96x96
14	Power Consumption (W/sqm)	MAX: 650 / AVE: 220
15	Cabinet Size (mm x mm)	1024x768
16	Cabinet Weight (Kg)	50

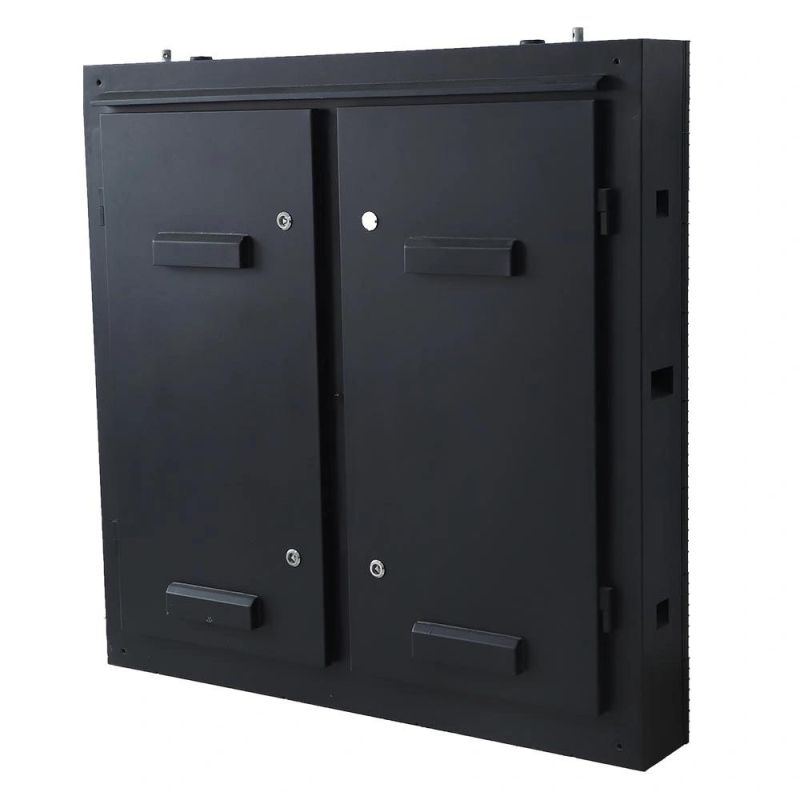

17	Cabinet Material	Iron / Aluminum
18	Color (M)	>281
19	Input Voltage (V)	AC 110V~220V+/-10%
20	Refresh Frame Frequency (Hz)	60
21	Protection Level	IP65
22	Working Temperature (ºC)	-30°- +60°
23	Operation humidity (RH)	10%-95%
24	Certificates	CCC ,CE,RoHS

Package:



Certificates:










Package:

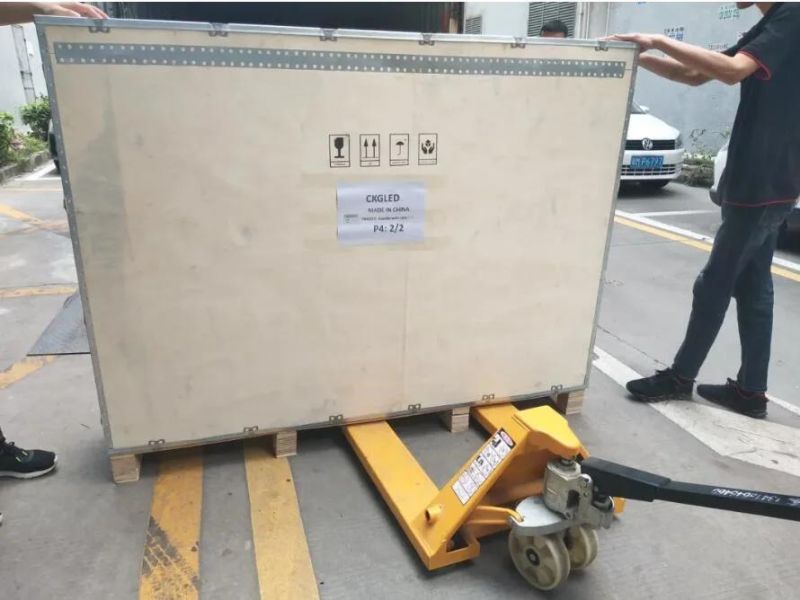

For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing

For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing

One wooden case including 2 cabinets, one flight case including 6 cabinets

Shippment

By air or sea, FOB shenzhen

UPS/DHL/FedEx/Express(door to door)and so on

Delivery time

Within 15 days counting from 30% prepayment arrived at CKGLED account.

Payment term>>>

T/T(30% deposit, the remained 70% payment made before factory shipment )

Our service:

Pre-Sales  Service

Provide details about the production procedure

Assign engineers for installation and testing

Sales  Service

Customized solution designs

Product rendering and steel structure drawing

CKGLED's successful project examples and visits to our production and R&D base

After-Sales  Service

Two-year quality warranty with lifelong maintenance.

Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and

maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.

Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.

Spare parts: necessary spare parts are provided together with products to customers.

Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are

skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.

Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the

products, and to discover and solve problems, if necessary.

Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.

Site instruction service of installation is available.

Free on-site service for hardware related issues.

Please call our technical support for more information
