• Model NO.：INL-AIO4
• Cell Type：LiFePO4
• Charging Time (H)：6
• Usage：Garden, Street
• IP Rating：IP67
• Certification：CE, ISO9001
• Voltage：12,24V
• With Light Source：With Light Source
• Application：Street, Road, Highway, Pathway, Sidewalk, Park
• Color：Grey
• Design：LiFePO4 Battery Is Built in Lamp Fixture
• Transport Package：720*340*135mm
• Specification：20W ~120W
• Trademark：INLUX SOLAR
• Origin：China
• HS Code：9405500000
• Production Capacity：200000 Sets, Year

Lighting ParametersLamp Power20W30W40W60WLuminous Flux2745 lumens4000 lumens4650 lumens7000 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle120°CRI>70Physical ParametersLED Lighting SourceLed module designMono Solar Panel25W/18V40W/18V60W/18V60W/18VLiFePO4 Lithium Battery12AH/12.8V (154WH)18AH/12.8V (230WH)24AH/12.8V (307WH)30AH/12.8V (384WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 60-85mmDimension of Product325*640*48mm325*1065*48mm325*1135*48mm325*1135*48mmNet Weight of Product8.6kg12.5kg16.8kg17.8kgWorking Mode (PIR Motion Sensor Control)Working Hours per Night12 hoursContinues Rainy Days Backup3 daysEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC

WORKING MODE

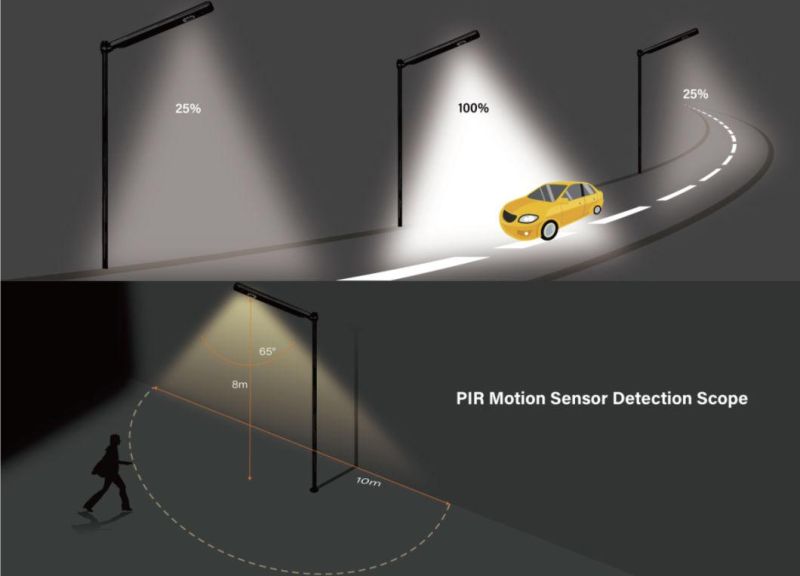

MODE A : 12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.

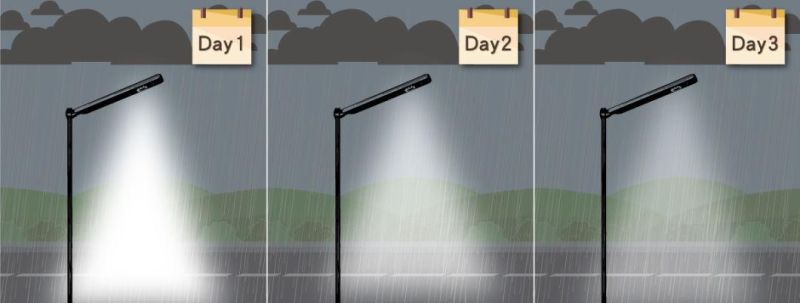

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy days

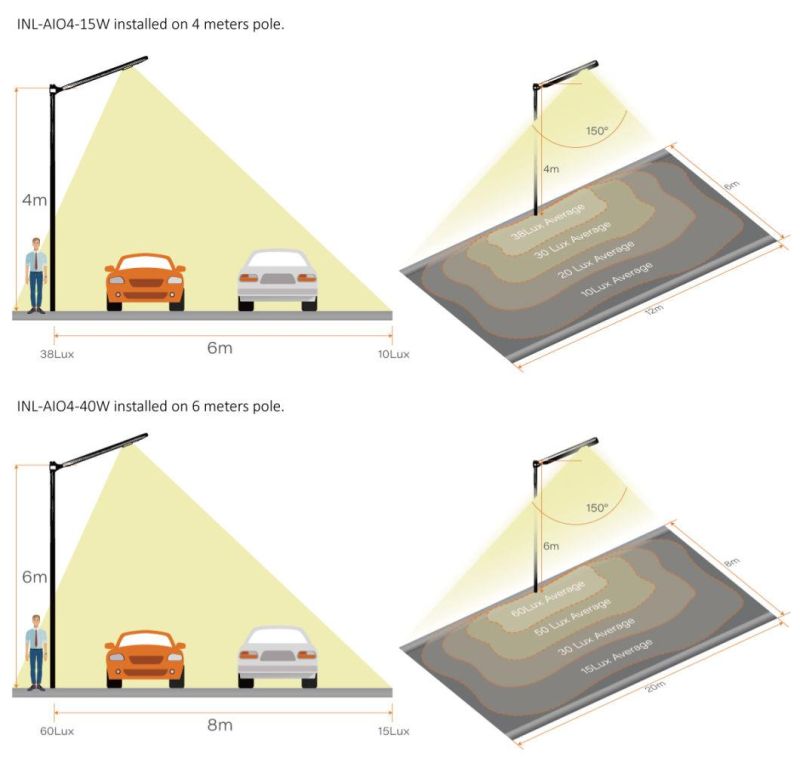

LIGHTING EFFECT
