Good Performance 11m 70W Solar Energy Saving LED Light Lamp, Die Cast Aluminum Body Solar LED Lightings

Lens Technology (Shenzhen) Co., Ltd.
  • Light Source：Energy-saving Lamps
  • Lamp Body Material：Aluminum
  • Light Type：Solar
  • Color Temperature：Cool White
  • Power：≥30W
  • Illumination Time：12h

Base Info

  • Model NO.：INL-AIO2
  • Cell Type：LiFePO4
  • Charging Time (H)：6
  • Usage：Garden, Street
  • IP Rating：IP67
  • Certification：CE, ISO9001
  • Voltage：12,24V
  • With Light Source：With Light Source
  • Application：Street, Road, Highway, Pathway, Sidewalk, Park
  • Color：Grey
  • Design：LiFePO4 Battery Is Built in Lamp Fixture
  • Transport Package：720*340*135mm
  • Specification：20W ~120W
  • Trademark：INLUX SOLAR
  • Origin：China
  • HS Code：9405500000
  • Production Capacity：200000 Sets, Year

Description

Lighting ParametersLamp Power30W40W60W80W100W120WLuminous Flux4625 lumens5400 lumens7200 lumens9250 lumens10800 lumens12250 lumensColor Temperature3000K~ 6000KOptical DistributionBat Wing, TypeIIBeam Angle140°CRI>70Physical ParametersLED Lighting SourceLed module designMono Solar Panel40W/18V60W/18V70W/18V80W/18V100W/18V120W/18VLiFePO4 Lithium Battery18AH/12.8V
(230WH)24AH/12.8V
(307WH)30AH/12.8V
(384WH)36AH/12.8V
(461WH)48AH/12.8V
(614WH)63AH/12.8V
(806WH)ControllerMPPT controllerPIR SensorincludedCharging Time5 hoursDischarging Time36 hoursIP RateIP 65Lamp FixtureHigh-Pressure Die-Casting Aluminum. Corrosion ResistantLamp Arm AdaptorDiameter 60-85mmDimension of Product343*780*60mm343*1020*60mm343*1250*60mm505*950*60mm505*1170*60mm505*1320*60mmNet Weight of Product11.3kg15.3kg 16.9kg19.2kg22kg24.8kgWorking ModeTime Control  or  PIR Motion Sensor ControlEnvironment RequirementsCharge Temperature-5-55ºCDischarge Temperature-20-55ºCStorage Temperature0-50ºC


WORKING MODE

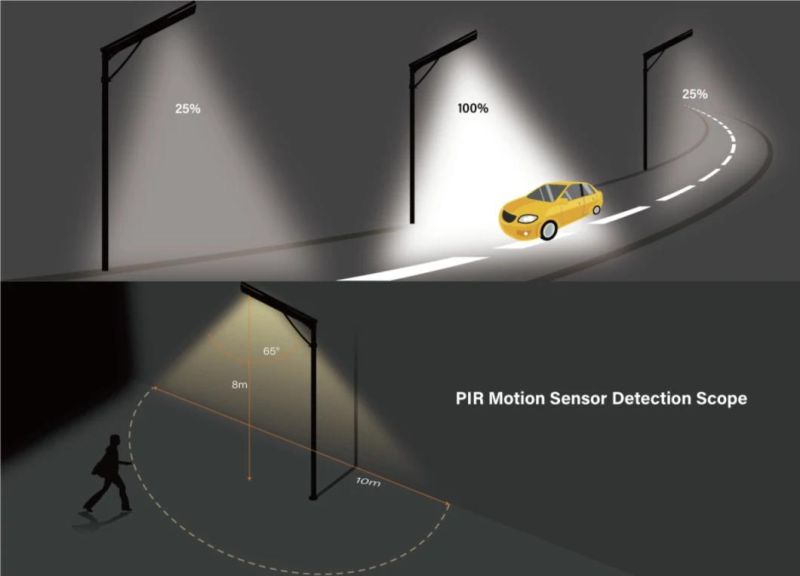

MODE A : 12 Lighting Hours/Night +PIR Motion Sensor Control
It is 100% power working when human being detected, and 25% power default setting when no human being detected.

Good Performance 11m 70W Solar Energy Saving LED Light Lamp, Die Cast Aluminum Body Solar LED Lightings

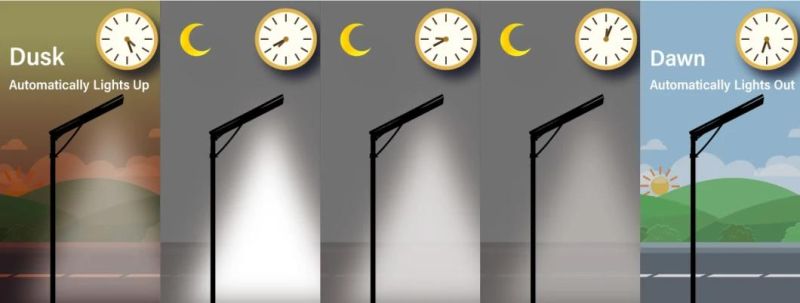

MODE B : 12 Lighting hours/Night + Automatic Time Control.
The lights turn on automatically at dusk, automatic brightness adjustment at night,the lights turn off automatically at dawn.

Good Performance 11m 70W Solar Energy Saving LED Light Lamp, Die Cast Aluminum Body Solar LED Lightings

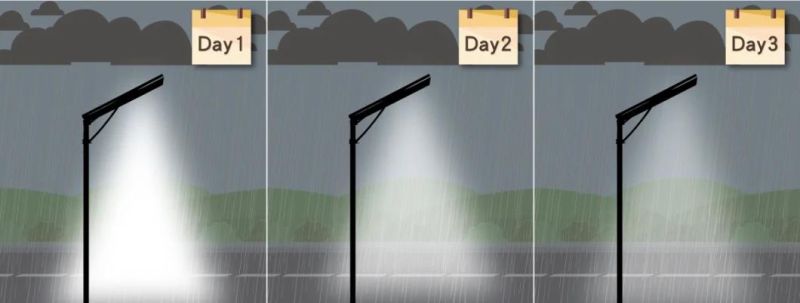

>3 Consecutive Rainy & Cloudy Days
Due to perfect power management system, the solar light can still work after more than 3 consecutive rainy and cloudy daysGood Performance 11m 70W Solar Energy Saving LED Light Lamp, Die Cast Aluminum Body Solar LED Lightings

LIGHTING EFFECT
 Good Performance 11m 70W Solar Energy Saving LED Light Lamp, Die Cast Aluminum Body Solar LED Lightings
