• Model NO.：P10
• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Stage Performance
• Certification：CE, RoHS
• Module Size(W×h)：160*160mm
• Module Resolution(W×h)：16*16dots
• Brightness：5000nits
• Viewing Angle(H/V)：120° ,120°
• Transport Package：1. Plywood Case 2. Flight Case 3. Carton-Box
• Specification：FOX-DIP-P10
• Trademark：Foxgolden
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：5000sq. M,Week

Basic Info.

Model NO. P10 Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS Module Size(W×h) 160*160mm Module Resolution(W×h) 16*16dots Brightness 5000nits Viewing Angle(H/V) 120° /120° Transport Package 1. Plywood Case 2. Flight Case 3. Carton-Box Specification FOX-DIP-P10 Trademark Foxgolden Origin Shenzhen, China HS Code 8531200000 Production Capacity 5000sq. M/Week

Product Description

How do you attract attention of new customers in
such a competitive market?

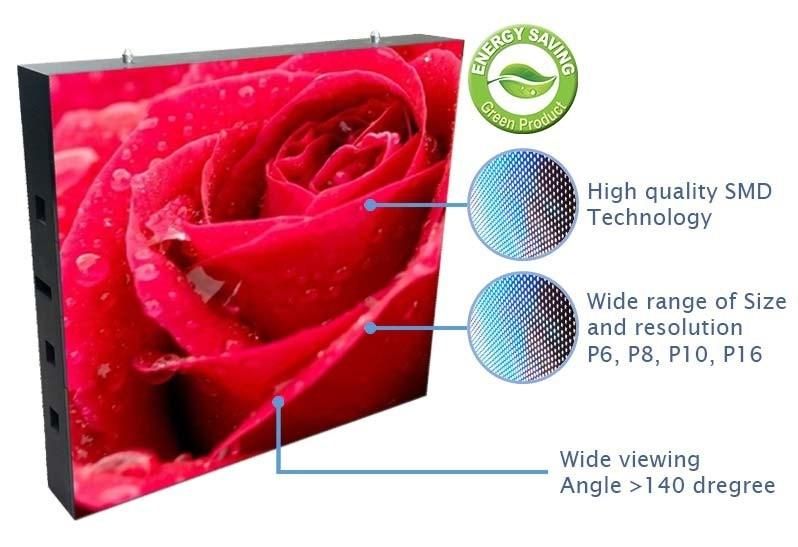

Features:

• Light Weigh and small structure
• Wide range of sizes
• Fast Installation

Software:

• Graphic Creation Software
• Support all graphic formats (images, animations, graphics, videos, texts)
• Optional Temperature and Humidity real time display
• Schedule or Automatic brightness control
• Scheduling message contents

Control:

• Messages can be controlled by PC control or online cloud message control

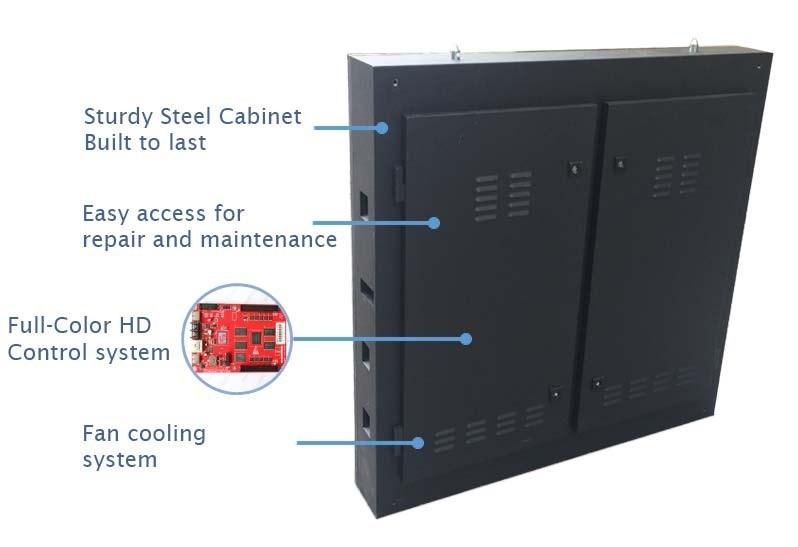

Cabinet:

• Durable and sturdy aluminum casting cabinet
• IP65 Waterproof

 Outdoor LED signs provide your business with eye catching and attractive advertising
solution that captureattention of your viewers. Compare with traditional form of static or
printed signs, electronic signs are capable to increase visibility of your business up to 900%
and increase your sales between 15 to 50%.

Outdoor Fixed LED Cabinet Specifications

LED Lifetime:	100,000 hours
Pixel Pitch:	10mm
Pixel Type:	SMD
Weight of Cabinet:	45.5kg
Best Viewing distance:	10m (10mm pitch)
Control Methods:	Synchronous or Asynchronous
Max  Power Consumption:	800W/m2
Frame Rate:	30 fps
Brightness:	>7000-8500cd/m2
Mean Time Between Failure:	10,000 hours
Message Capability:	Text, graphics, logos, image, video
Display Brightness:	64 levels (automatic, scheduled or manual)
Communication Options:	Wi-Fi, LAN, GPRS
Warranty Coverage:	3 Years
Product Support:	Parts support for 10 years

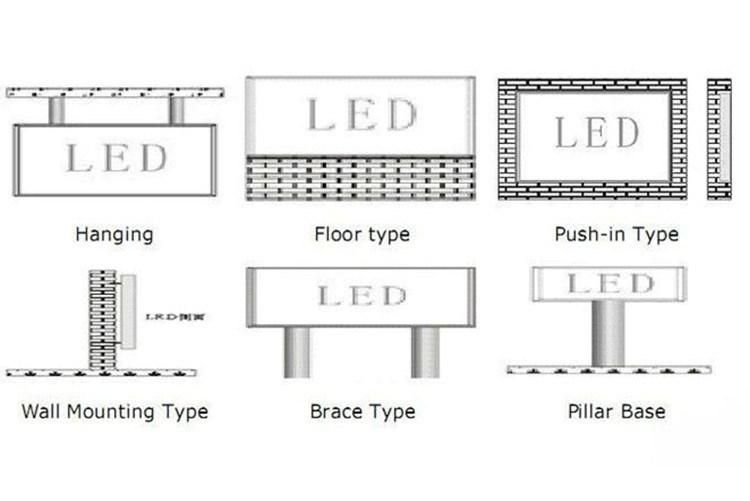

Different Installation

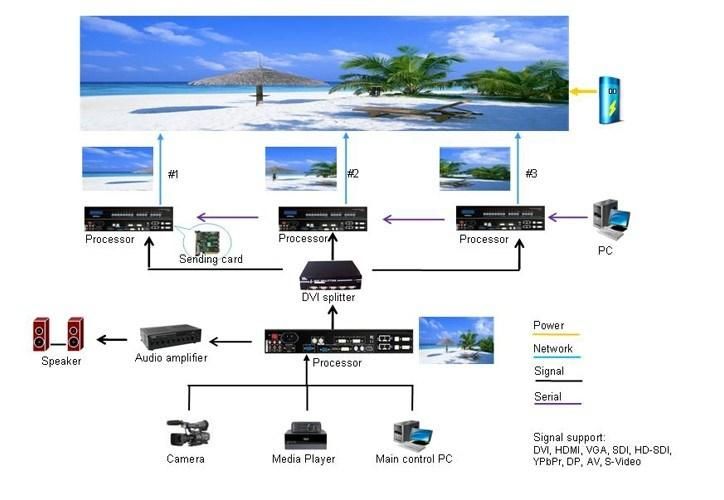

Control System

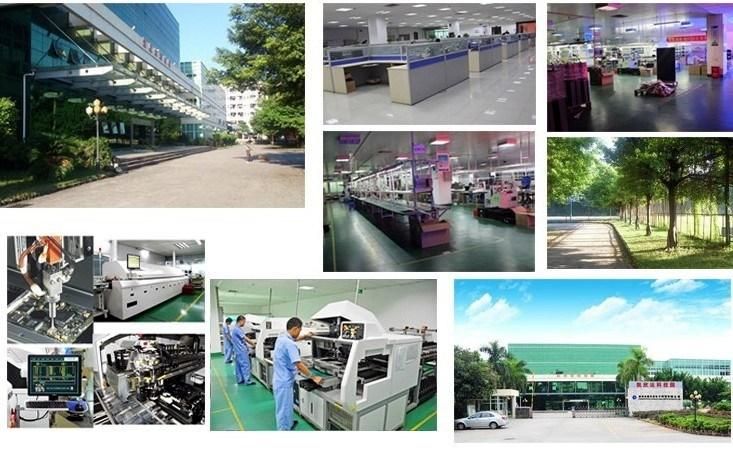

Company Information





Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises
in China. Since 2004, we have been dedicating to the aim that making high quality products,
and have been well integrated with R&D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only
keeps improving on normal LED display screen, enhances the product's cost-effective and
overall market competitiveness, but also makes breakthrough progresses on special
usages. Our products, with high quality and competitive prices, spread worldwide and earn
excellent public reputation from both domestic and overseas market.
