• Model NO.：P10
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP65
• Certification：CE, RoHS, CCC
• Pixel Configuration：1r1g1b
• Best Viewing Distance：20-300m
• Warranty Time：3~5 Years
• Horizontal Viewing Angle：120degree
• Verticalviewing Angle：110degree
• High Brightness：More Than 8000CD,Sqm
• Life Span：100,000hours
• Transport Package：1. Anti-Shaking Wooden Package. 2. Air Flight Case
• Specification：UL, CE&RoHS Certificate
• Trademark：FOXGOLDEN
• Origin：Shenzhen City, Guangdong Province, China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Technical parameterUnit moduleModule size320*160mmPixel pitch10mmPixel density10000dots/m2Pixel configuration1R1G1BLed specificationSMD 3 in 1Pixel resolutionW: 16dots*H: 16dotsCabinetDimension960mm*960mm*150mmQuantities of module25pcsPower supply4pcsThermal dischargeFan*2pcsTotal weight50kgBest viewing angle10-150mTemperatureStorage: -35° C~+85° CWorking: -35° C~+85° CThickness15cm can adjustableRemarks: cabinet size can changed, upon project need.PowerWorking voltageAC220V/110V± 10%Average power consumption200-300WMax. Power consumption≤ 600W/sqmCurrent≤ 20mA(single LED)Control systemCPUPentium4 or aboveOperating systemWIN98/2000/NT/XPControl methodSynchronizationMain technical parameterDriving device1/4scanningDrive typeConstant Current driver ICRefresh frequency≥ 400HzGrey scale/colors256 levels of each color(R/G/B)/16.7M colorBrightness of white balanceMore than 1800cd/sqmBrightness adjustment256 levels of each color(R/G/B)by softwareOperating ambient humidity10%--95%Video signalPAL/NTSCControl systemDVI display card+full color controller cardMTBF≥ 10, 000hoursLife span≥ 100, 000hoursFlatnessTolerance of interpixel ≤ 0.3mmTolerance of modules clearance≤ 0.6mmPower switchAutomatic switchDisplay mode1024*768Communication distanceUnshielded twisted pair net line transmission distance 100m, max transmission distance 200m.Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KMSoftwareLED media player

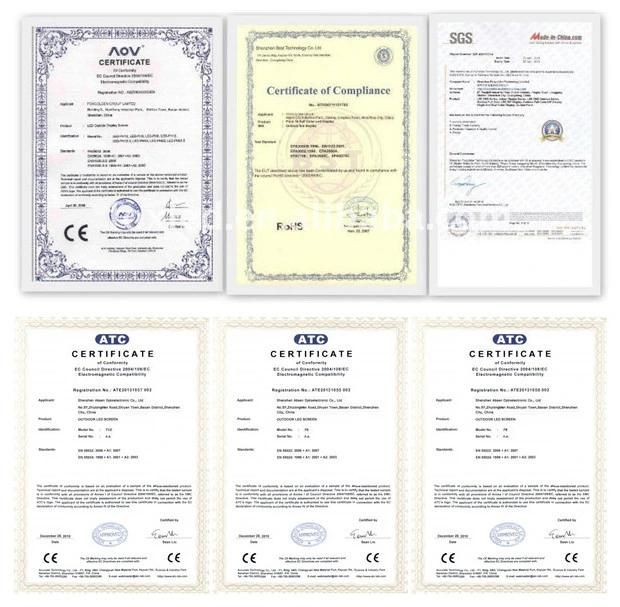

Certification:

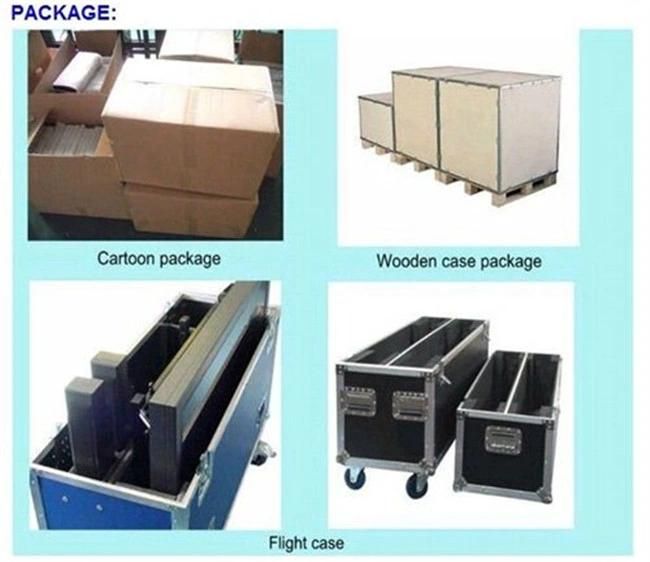

Package:
