• Model NO.：fox-p4-indoor
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance
• IP Rating：IP60
• Certification：CE, RoHS, UL, CCC
• Module Dots：64*32
• Module Size：256*128mm
• Color：1r1g1b
• Best Viewing Distance：4-50m
• Horizontal Viewing Angle：140 Degree
• Frame Frequency：60Hz
• Refresh Frequency：300Hz
• Mtbf：10000hours
• Life Span：100, 000hours
• IP Grade：IP65 Front, IP43 Back
• Transport Package：Anti-Shaking Wooden Case&Flight Case &Carton
• Specification：CE, UL, RoHS, SGS, 3C
• Trademark：FOXGOLDEN
• Origin：Shenzhen, Guangdong, China
• HS Code：8528591090
• Production Capacity：3000sqm,Month

Basic Info.

Model NO. fox-p4-indoor System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance IP Rating IP60 Certification CE, RoHS, UL, CCC Module Dots 64*32 Module Size 256*128mm Color 1r1g1b Best Viewing Distance 4-50m Horizontal Viewing Angle 140 Degree Frame Frequency 60Hz Refresh Frequency 300Hz Mtbf 10000hours Life Span 100, 000hours IP Grade IP65 Front, IP43 Back Transport Package Anti-Shaking Wooden Case&Flight Case &Carton Specification CE, UL, RoHS, SGS, 3C Trademark FOXGOLDEN Origin Shenzhen, Guangdong, China HS Code 8528591090 Production Capacity 3000sqm/Month

Product Description

How do you attract attention of new customers
in such a competitive market?



Features:

• Light Weigh and small structure
• Wide range of sizes
• Fast Installation

Software:

• Graphic Creation Software
• Support all graphic formats (images, animations, graphics, videos, texts)
• Optional Temperature and Humidity real time display
• Schedule or Automatic brightness control
• Scheduling message contents

Control:

• Messages can be controlled by PC control or online cloud message control

Cabinet:

• Durable and sturdy aluminum casting cabinet
• IP65 Waterproof

Outdoor LED signs provide your business with eye catching and attractive advertising solution that capture attention of
your viewers. Compare with traditional form of static or printed signs, electronic signs are capable to increase visibility of
your business up to 900% and increase your sales between 15 to 50%.

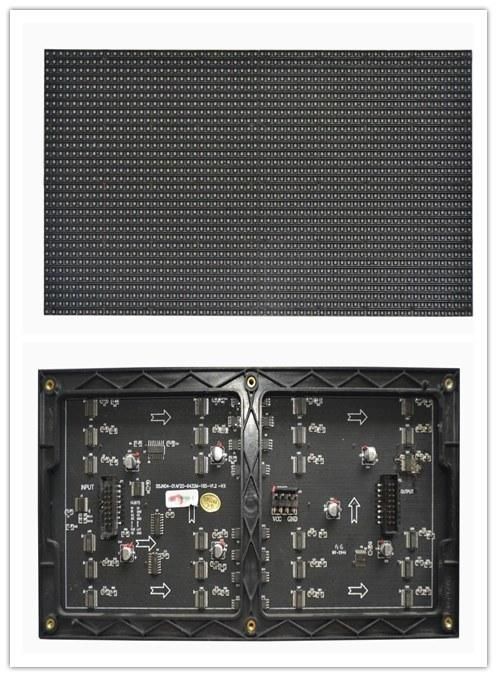

Item	P4
Pixel pitch	4mm
Size of unit board	256mm X 128mm
Resolution of unit board	64 x 32
Density of pixel	62500dots/m2
Pixel configuration	1R1G1B-smd
Red wavelength	625±2nm
Green wavelength	525±2nm
Blue wavelength	470±2nm
Colors	16777216
Best viewing distance	≥4m
Horizontal viewing angle	140°
Maximum power consumption	500W/m2
Brightness	2000-4000 cd /m2
Gray scale	14bits per color
Color temperature	6500k
Control method	Synchronization & Asychronization
Driving method	Constant 1/16 scanning
Frame frequency	60Hz
Refresh frequency	≥180Hz
Working voltage	AC220V/110V±10%
IP grade	Front Ip65/back IP45
Working temperature	-20°C~+80°C
MTBF	10000 hours
Life span	100,000 hours

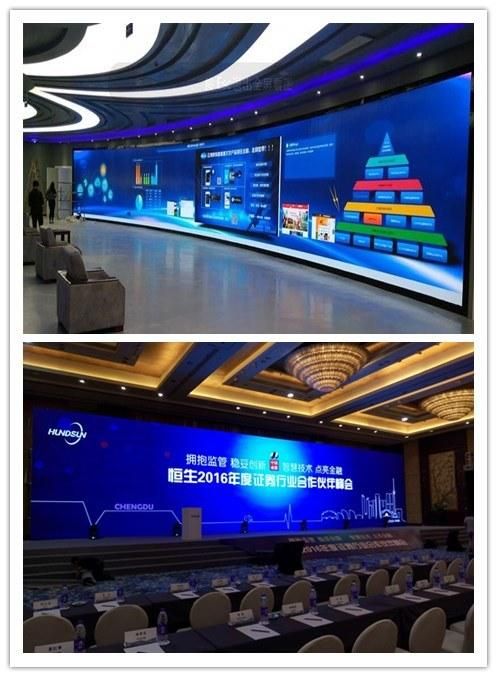

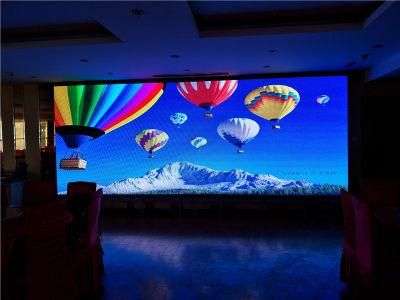

Application places





Our Service
Guaranttee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance  lifetime and charge for the raw materials only.
Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
 Maintenance and Consultation
(1) We provide  maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call,for free.
 Documents and Certification
 (1) We provide the operation manual, software, test report and so on.
 (2) We can also provide all kinds of certification such as CE, UL and so on.

Trade Terms:

Payment  terms	Prepayment can be negociated -T/T: -Paypal -Western Union -Escrow
Packing	-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case
Delivery time	LED module: 1-4  working days after receiving deposit LED display: 5 -15 working days after receiving deposit

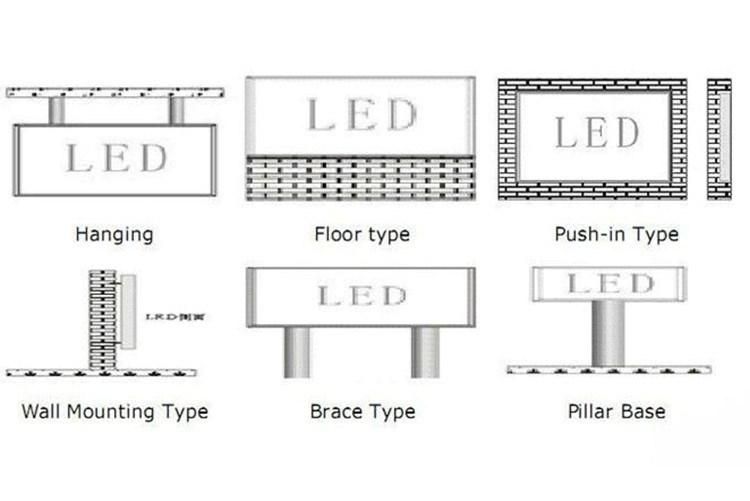

Different Installation

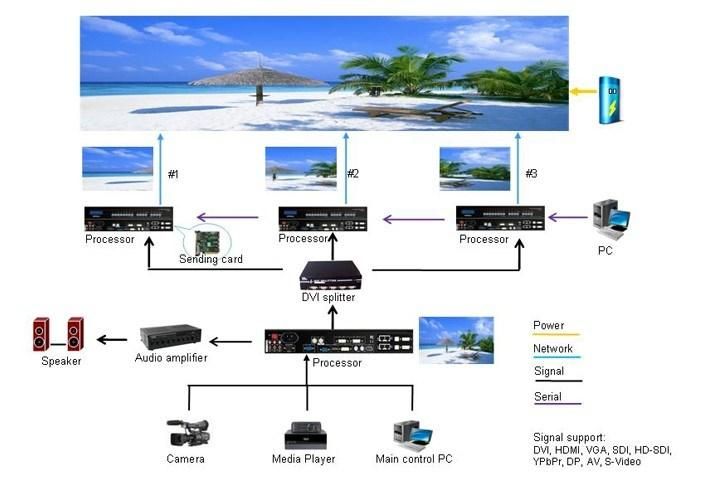

Control System

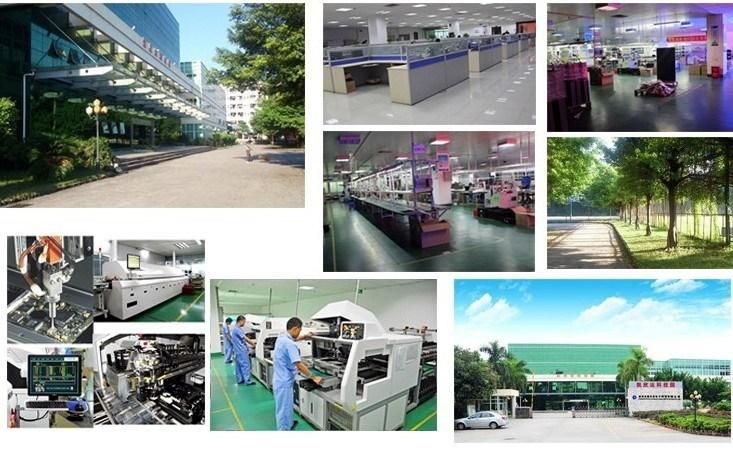

Company Information




Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have
been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project,
capital and marketing.

As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED
display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough
progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent
public reputation from both domestic and overseas market.
