X/B Series 10kw 20kw Cycloidal Pin Wheel Speed Reducer for Conveyor
Shinylink (Shanghai) Industrial Inc.- Application：Industry
- Hardness：Hardened
- Installation：Horizontal Type
- Layout：Coaxial
- Gear Shape：Conical - Cylindrical Gear
- Step：Double-Step
Base Info
- Model NO.：X, B Series
- Type：Circular Gear
- Rated Power：0.12kw~55kw
- Rated Torque：70n.M~10, 000n.M
- Gear Arrangement：Cycloidal
- Input Speed：Less Than 1500r,Min
- Mounting Type：Foot Mounted or Flange Mounted
- Material：Cast Iron
- Manufacturing Method：Forging Gear
- Toothed Portion Shape：Cycloidal Gear
- Transport Package：Plywood Case
- Specification：ISO
- Trademark：Aokman Drive
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Year
Description
ApplicationNature of Load Agitators Pure liquid Blower Centrifugal type Air compressor, Compressor Centrifugal type Conveyor
(stable load) Plate type I Strap type Hopper type Chine type Screw type X2(B0/B12) 0.37~1.5 9~87 150 Φ25(Φ30) Φ15 X3(B1/B15) 0.55~2.2 9~87 250 Φ35 Φ18 X4(B2/B18) 0.75~4.0 9~87 500 Φ45 Φ22 X5(B3/B22) 1.5~7.5 9~87 1,000 Φ55 Φ30 X6(B4/B27) 2.2~11 9~87 2,000 Φ65(Φ70) Φ35 X7 3.0~11 9~87 2,700 Φ80 Φ40 X8(B5/B33) 5.5~18.5 9~87 4,500 Φ90 Φ45 X9(B6/B39) 7.5~30 9~87 7,100 Φ100 Φ50 X32(B10) 0.25~0.55 121~1849 - Φ35 Φ15 X42(B20/B1812) 0.37~0.75 121~1849 - Φ45 Φ15 X53(B31/B2215) 0.55~1.5 121~1849 - Φ55 Φ18 X63(B41/B2715) 0.75~2.2 121~1849 - Φ65(Φ70) Φ18 X64(B42/B2718) 0.75~2.2 121~1849 - Φ65(Φ70) Φ22 X74 1.1~3.0 121~1849 - Φ80 Φ22 X84(B52/B3318) 1.5~4.0 121~1849 - Φ90 Φ22 X85(B53/B3322) 2.2~5.5 121~1849 - Φ90 Φ30 X95(B63/B3922) 3.0~7.5 121~1849 - Φ100 Φ30 X106(B74/B4527) 4.0~11 121~1849 - Φ110 Φ35 X117(B84/B5527) 4.0~15 121~1849 - Φ130 Φ40(Φ35)
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
Attention: X,B series cycloidal speed reducer also can be used in
Plastic extruding machine;
Wining machine(winding engine);
Rolling path;
Cracking machine(ores);
Hammer type pulverizing machine;
Concrete blending machine and so on.

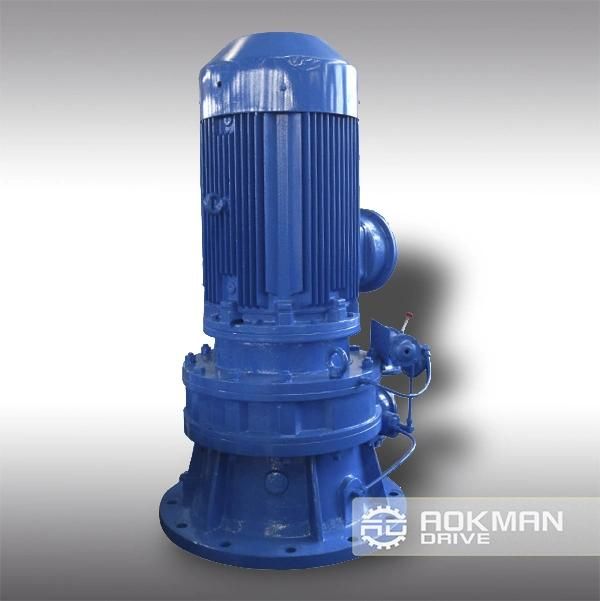

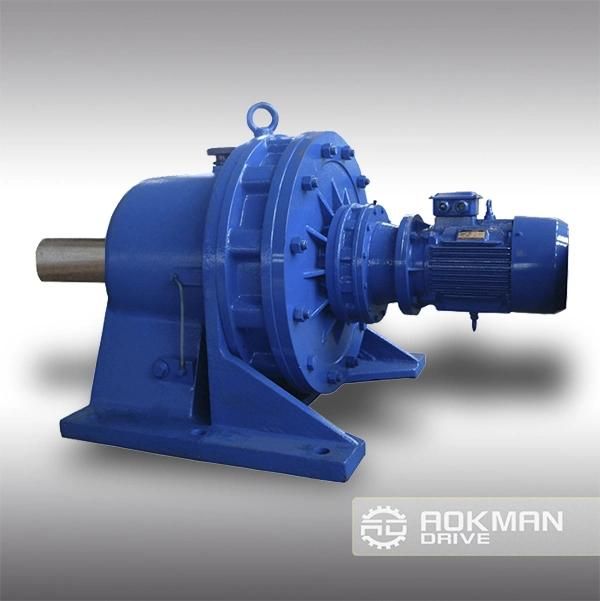

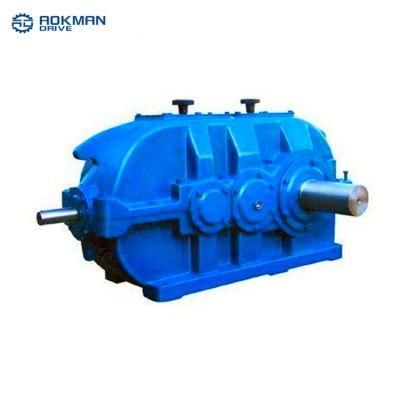

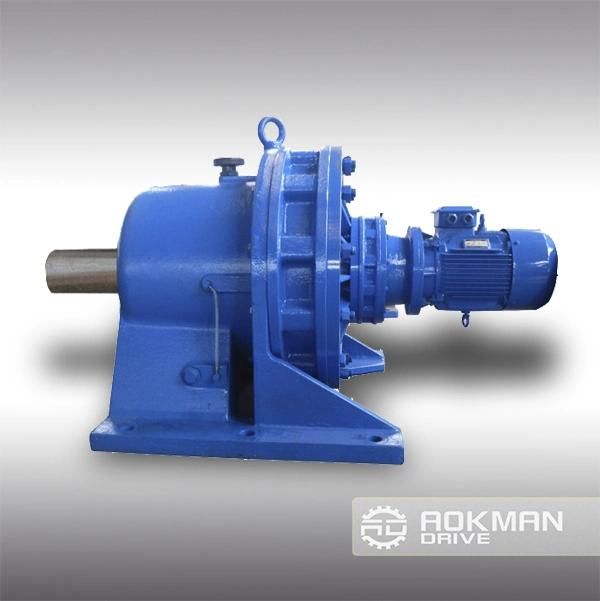

Product pictures:

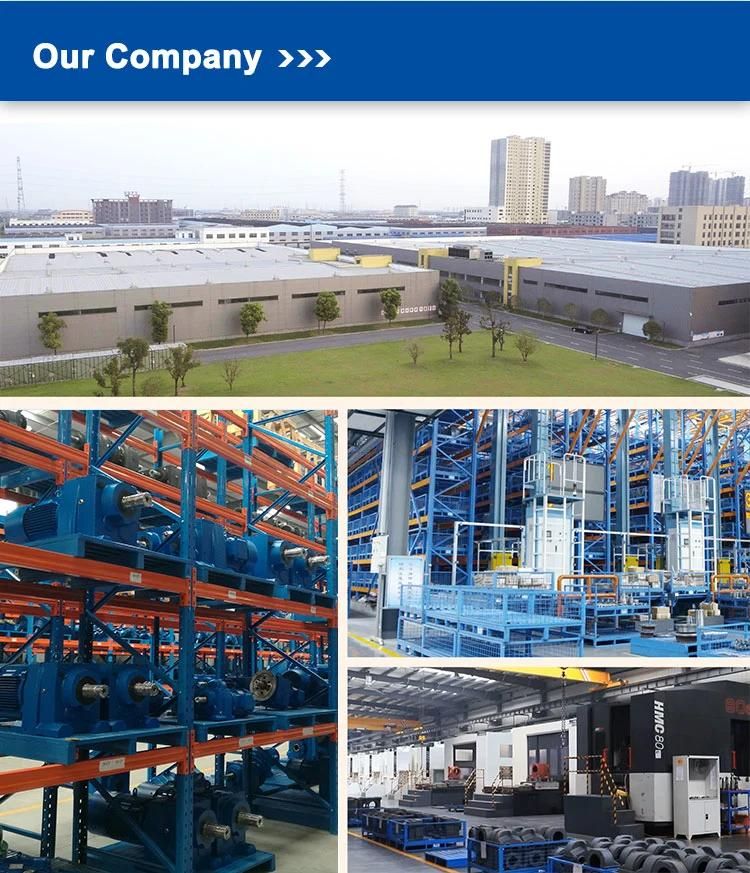

Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
Customer visiting:
FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
Welcome to contact us for more detail information and inquiry.
If you have specific parameters and requirement for our gearbox, customization is available.
