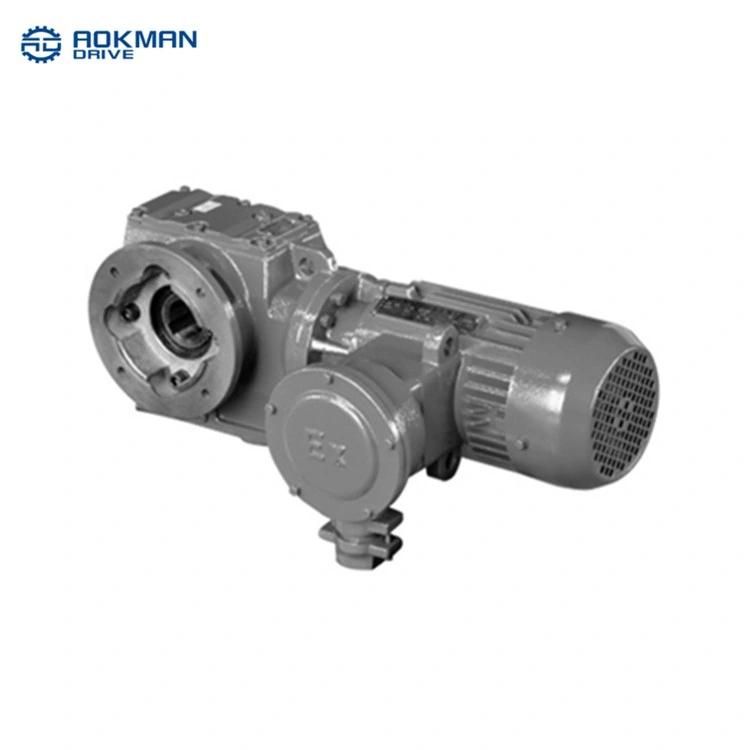

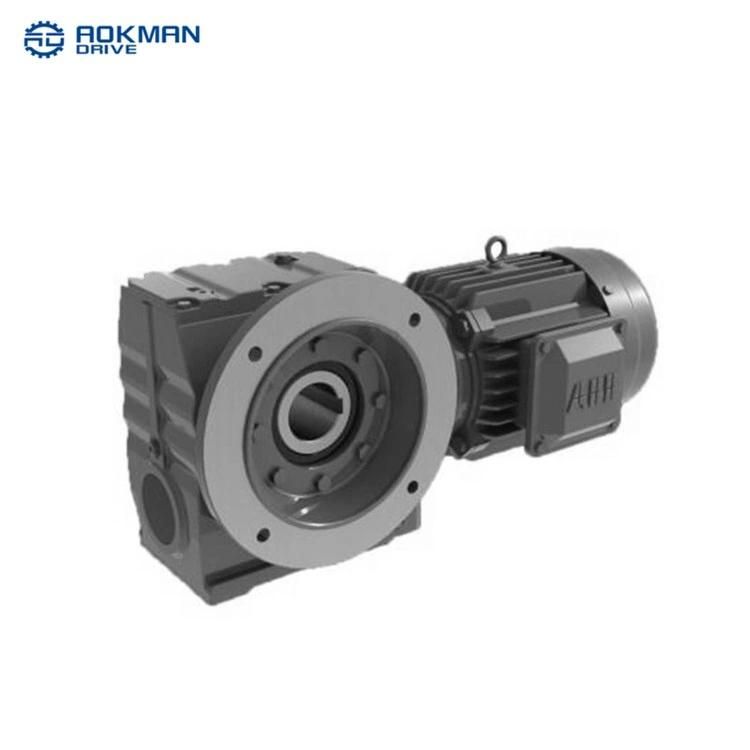

Ce Approved S Series Right Angle Helical Worm Gear Units Made in China
Shinylink (Shanghai) Industrial Inc.- Application：Motor, Machinery, Industry
- Function：Change Drive Torque, Speed Changing, Speed Reduction
- Layout：Right Angle
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Double-Step
Base Info
- Model NO.：S Series Gearbox
- Type：Worm and Wormwheel
- Gear Arrangement：Helical Worm Gearbox
- Rated Power：0.18kw~22kw
- Rated Torque：90 to 4000n.M
- Installation Form：Flange Mounted or Foot Mounted or Torque Arm Mount
- Housing：Aluminum and Casting Iron
- Material：Cast Iron
- Manipulate Way：Forced Manipulation
- Toothed Portion Shape：Bevel Wheel
- Changes Way：Stepped
- Manufacturing Method：Forging Gear
- Color：Blue,Gray,Customer Requirement
- Warranty：1 Year
- Transport Package：Wooden Case
- Specification：ISO
- Trademark：AOKMAN DRIVE
- Origin：China
- HS Code：8483409000
- Production Capacity：5000PCS,Year
Description
S SA SF SAF SAT SAZ Input Power(KW) 0.18-0.75 0.18-1.5 0.18-3 0.25-5.5 0.55-7.5 0.75-15 1.5-22 Ratio 10.27-152 11.46-244.74 10.78-196.21 11.55-227.20 9.96-241.09 11.83-222 12.75-230.48 Maximum torque(N.m) 90 170 295 520 1270 2280 4000
Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
Customer visiting:
Our Services:Pre-sale services1. Select equipment model. 2.Design and manufacture products according to clients' special requirement. 3.Train technical personal for clients Services during selling 1.Pre-check and accept products ahead of delivery. 2. Help clients to draft solving plans. After-sale services 1.Assist clients to prepare for the first construction scheme. 2. Train the first-line operators. 3.Take initiative to eliminate the trouble rapidly. 4. Provide technical exchanging.
