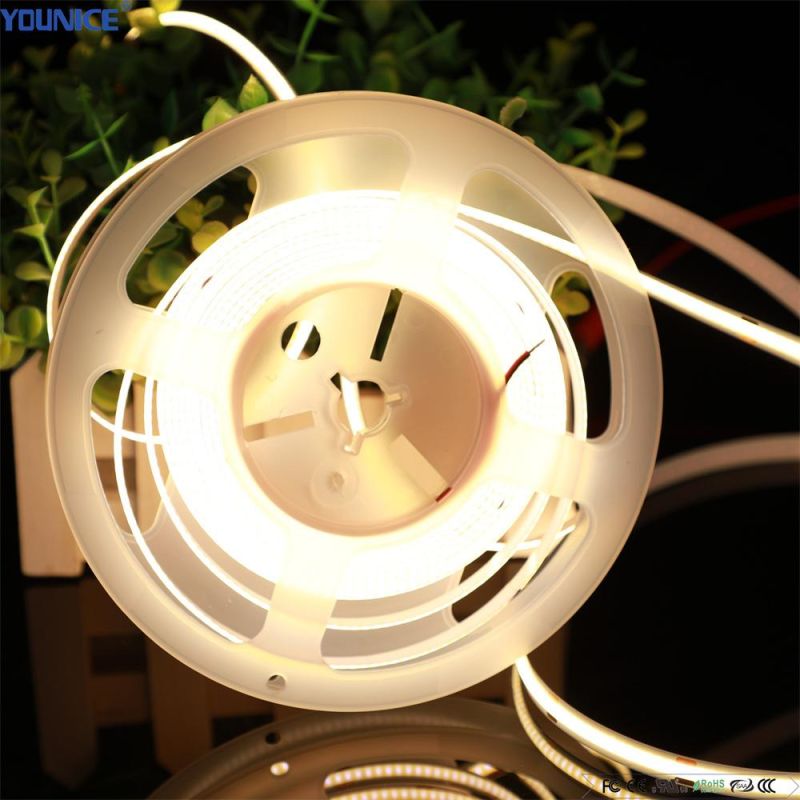

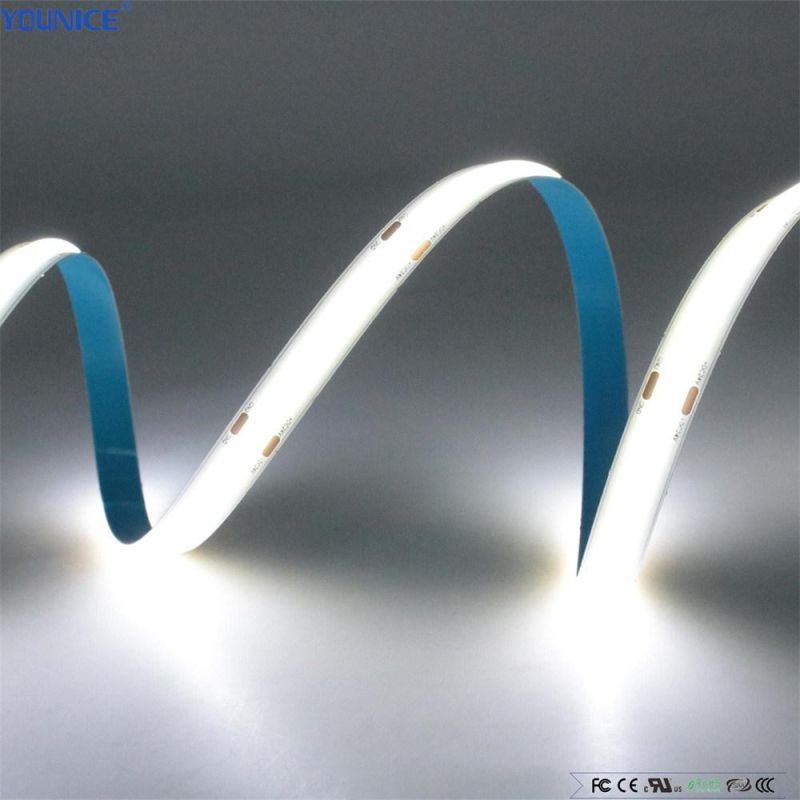

8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：10W,M
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP66
  • LED Quantity：528 LEDs,M

Base Info

  • Model NO.：RB0L8WW08A-E
  • Package：5m,Roll
  • Color：3000K
  • Aluminous Flux：850-985 Lm,M
  • Length：5m
  • Warranty：3 Years
  • IP：IP20 IP67 IP68 IP54
  • Delivery Time：6days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air

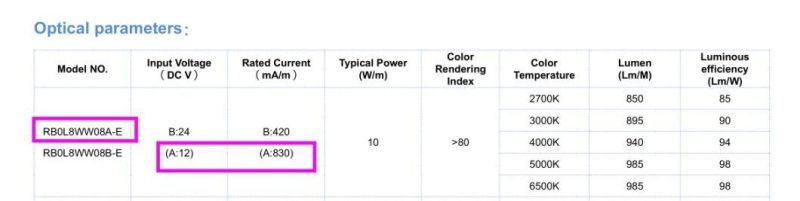

  • Rated Current：830mA,M
  • Cut-Able Unit：45.45mm
  • LED Pitch：1.89mm
  • Ra：80
  • Luminous Efficiency：85-98lm,W
  • Width：1.5mm

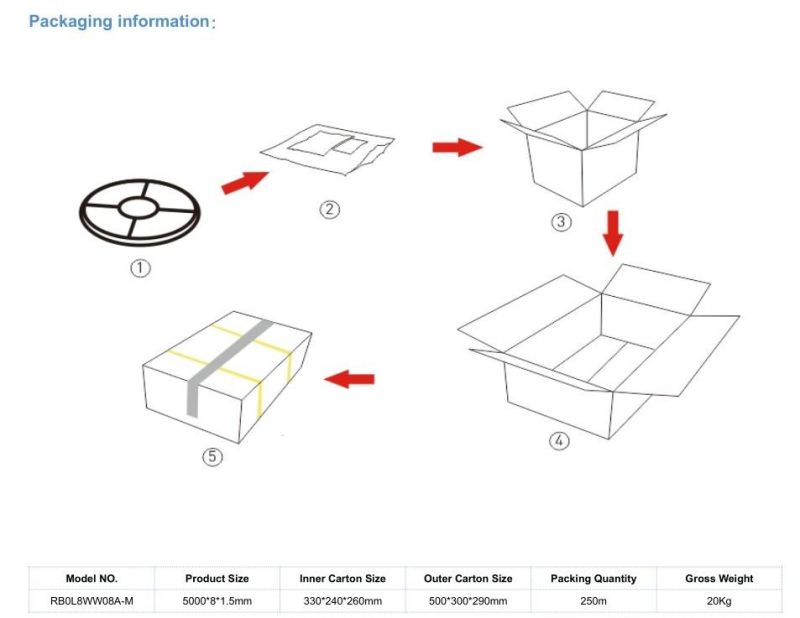

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw20kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW20kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

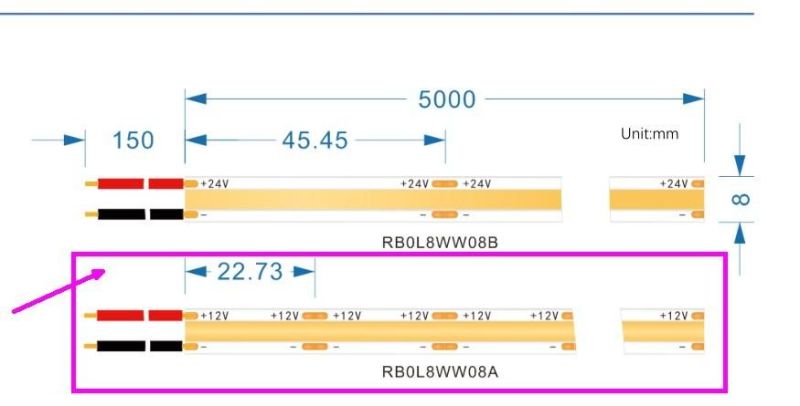

Product size5000*8*1.5 mmCut-able unit45.45mmLED pitch1.89mmLED quantity528 LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip8mm Width DC12V 528LEDs/M 45.45mm Cut Unit LED COB Strip
