50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

Guangzhou Taimei Cosmetic Packaging Co., Ltd.
  • Certification：LVD, UL, EMC, RoHS, CE
  • Power：8.5W,M
  • Emitting Color：3000K,4000K,6500K,Red,Green,Blue,Yellow,Pink
  • Voltage：110V,130V,220V,230V,240V
  • IP Rating：IP65
  • Cutting Length：1m

Base Info

  • Model NO.：LD-RD50CX-EP01
  • Life Span：50000h
  • LED Type：SMD5050
  • Warranty：3 Years
  • LEDs Qty/M：60 LEDs,M
  • CRI：>80
  • Length Customize：Available
  • Lumen：800lm,M
  • Power Supply Input Voltage：AC100-277V ~ 50,60Hz
  • Power Supply in-out：Booster Type
  • Power Supply Lamp Power：1500max
  • Power Supply Emergency Time：2*60min
  • Power Supply Modulation System：Pfm
  • Power Supply Output Voltage：DC50-180V
  • Power Supply Emergency Power：50W
  • Transport Package：Portable Suitcase Reel + Carton
  • Specification：8X16mmX(50M,roll) packing
  • Trademark：NEDAR
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：400000m,Month

Description

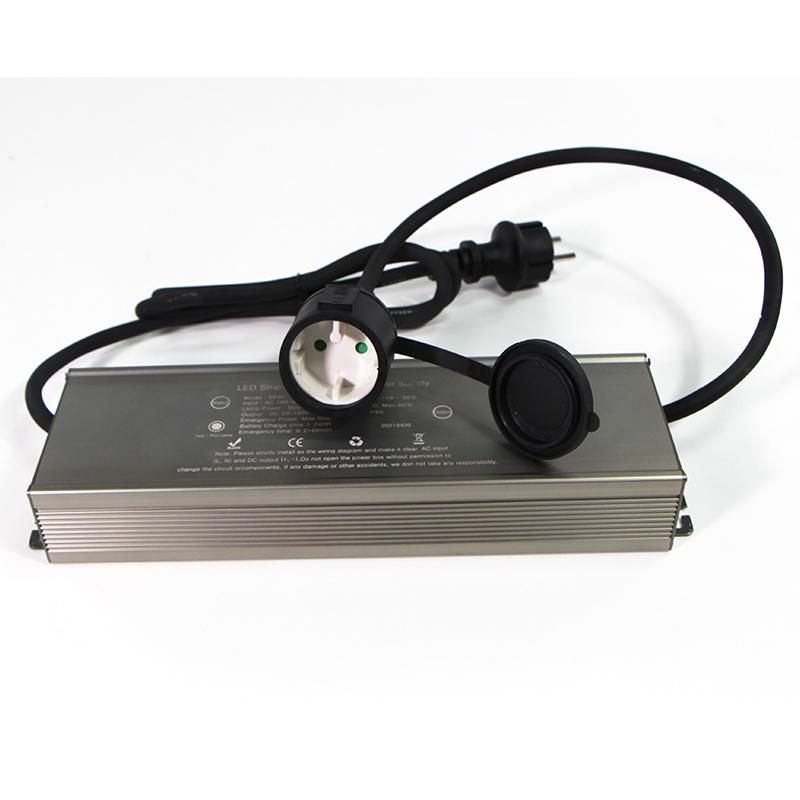

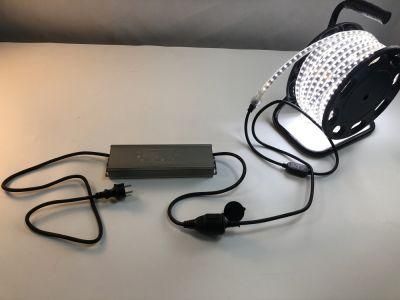

Model:EP01Input Volt.:AC100-277V ~ 50/60HzOutput Volt.:DC50-180VLamp Power:1500W Max.Emergency Power:50W Max.Emergency Time:2X60 minsBattery Charge:24HR(Full charge)Input cable:1.2M rubber cable 2X1.5mm2Output cable:0.5M rubber cable 2X1.5mm2Ta.:-10~ 50 oCTc.:Max. 60 oCIP GradeIP65Warranty:2 Years

Product features


1. applicable to all the strip light. 2. when the emergency power supply is started, the voltage is about 175V(emergency voltage); 3. When the emergency power is started,  brightness is 30% of the original. 4. the maximum emergency power of emergency power supply is 50W( if the power beyond the range of the emergency power supply will damage the components in case of emergency, so it is not recommended to use it beyond the power range) 5. when emergency power supply works, it is 1 hour within the normal power range(20w~50w). (5m, 25m, 50m strip light are all the same time) 6. The minimum load of emergency power supply is 20W( So the power of the  strip light with 1 meter is not enough, and it will be off in about 3 seconds.) 7. charging status: when the charging is less than 90%, the indicator light will be on red light,  when charging is more than 90%,the indicator light will be on green light,. 8. Emergency self check: when emergency is started, the green light flashes slowly for 5S + red light flashes slowly for 5S, and if there no load is detected, the output will be turned off. 9. Discharge status: the indicator light flashes green until the indicator light is off and the battery power consumption is finished( It is the used process of emergency power supply ) 10. Short press switch: when emergency function is used, short press the switch can display the power quantity by flashing times of red light: flash once corresponds to 0-20% electricity, two times corresponds to 20% - 40%, three times corresponds to 40-60% of electricity, four times corresponding to 60% - 80%, and five times corresponding to 80% - 100%. 11. Long press switch: pressing the switch for more than 3 seconds to turn off the emergency function, and it needs to recharge for reseting the power supply again. After the power is off, the emergency function will be activated again. (2* 1h. when the emergency power working 1 hour, it will turn off itself, and it need charge power to reset, if power off again, the emergency power can still work 1 hour.) Product picture

50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply
50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

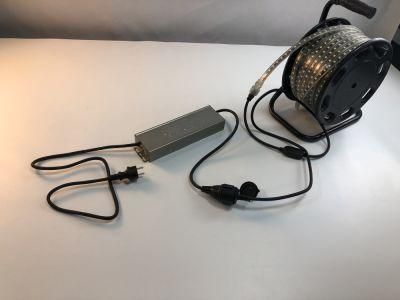

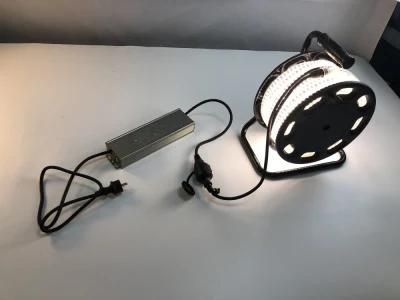

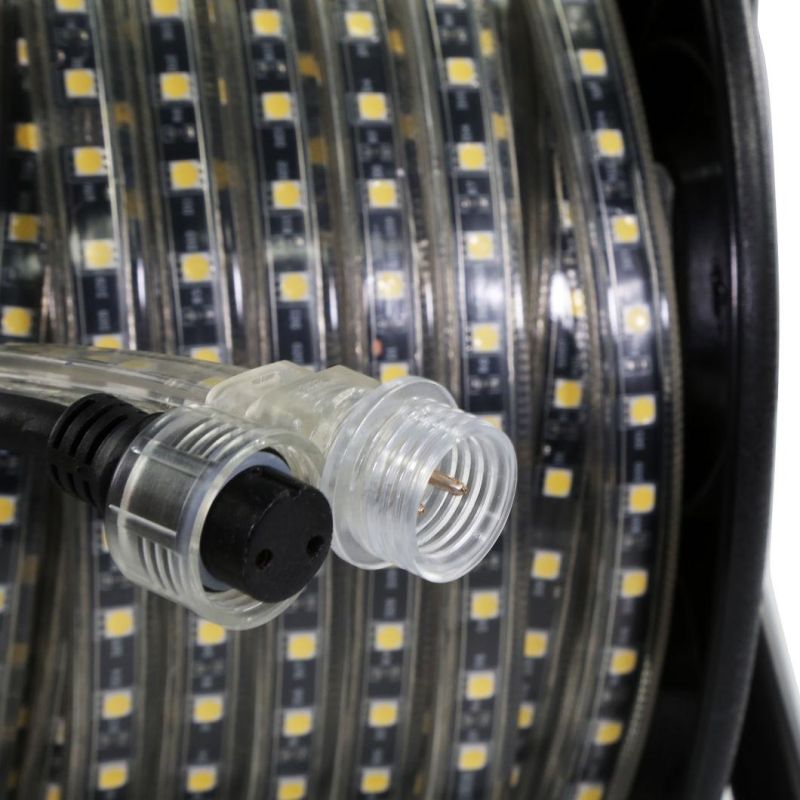

Linkable design ,with strong connector,max connect 50m
50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

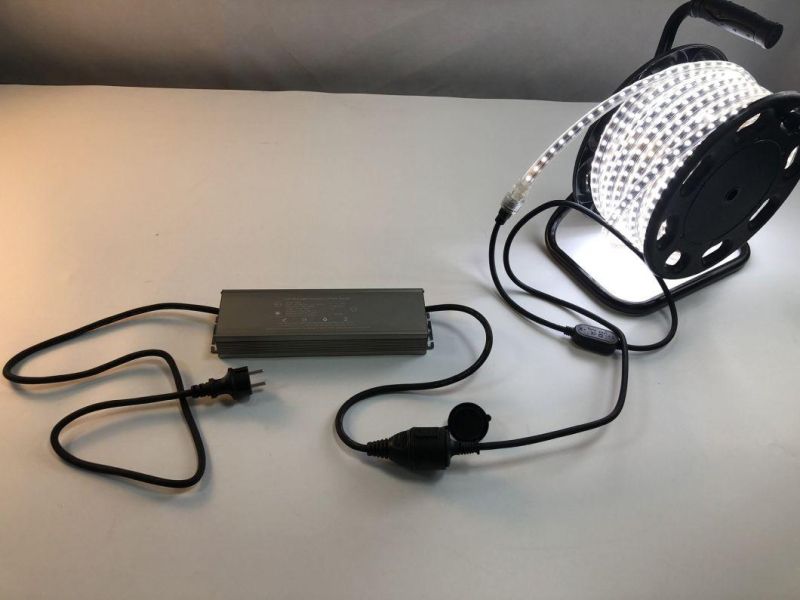

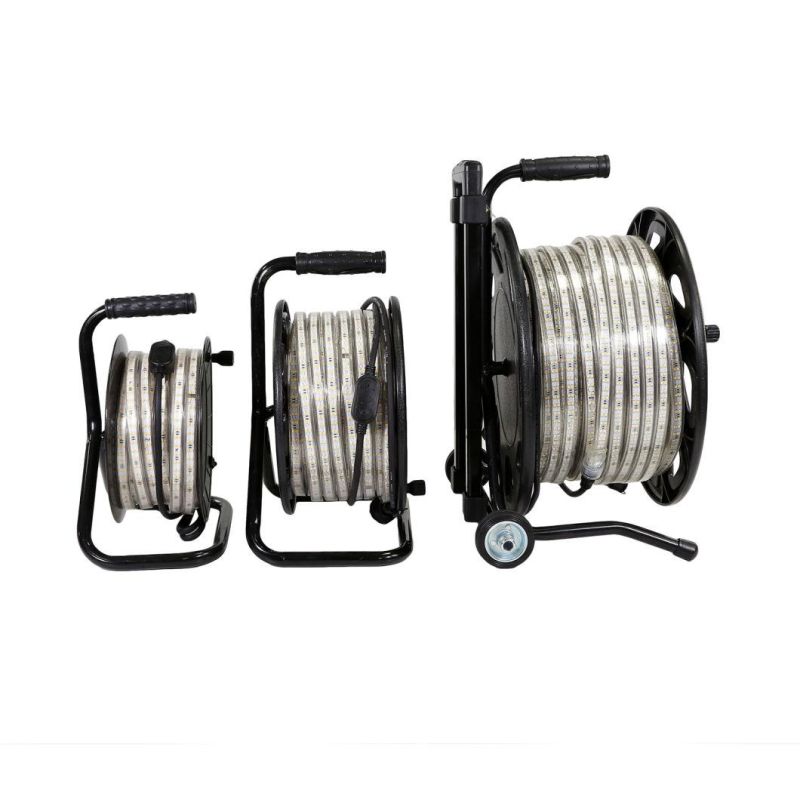

15m/25m/50m for your option

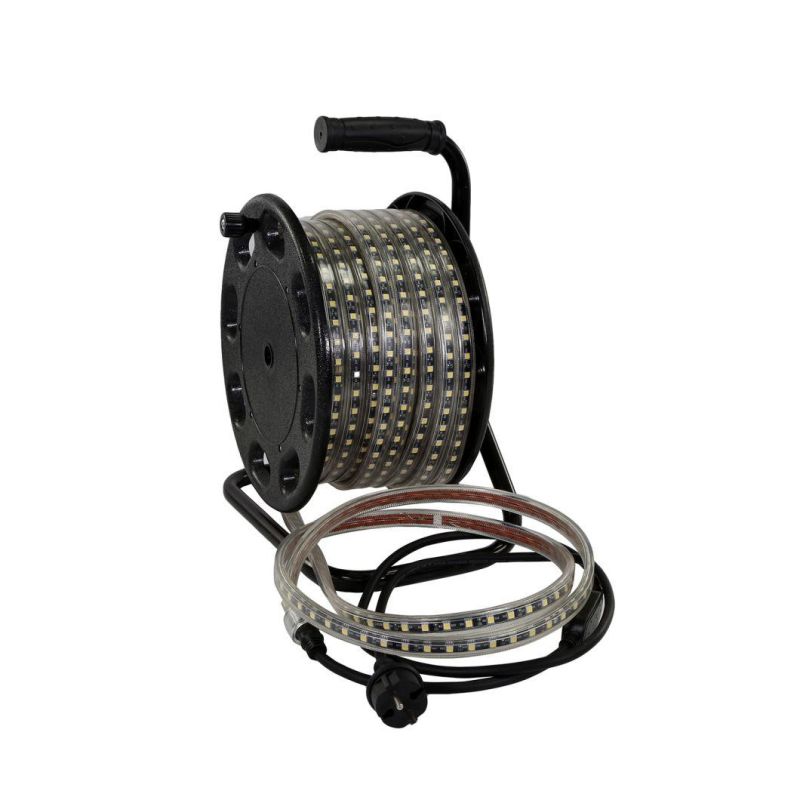

50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply Package (portable reel + carton)
50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

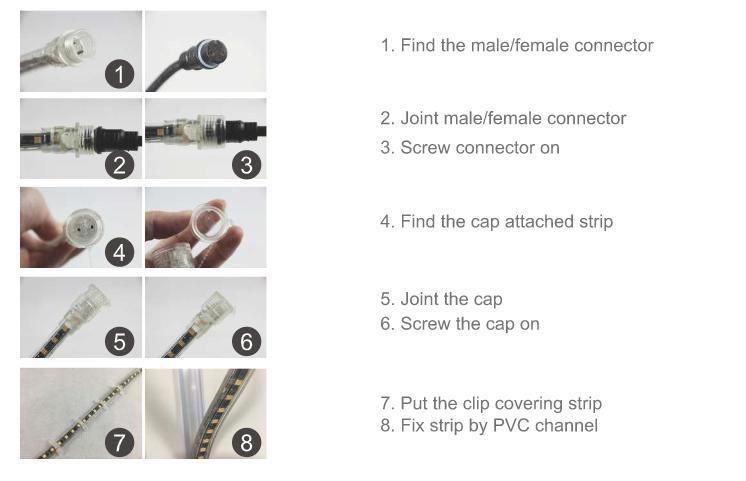

Connector Type & Installation Options
50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply
50m Emergency System 230V SMD5050 Black FPCB Construction Site Strip Lighting with 2*1h Power Supply

Company Profile

NEDAR has been operated since 2007 and specializes in researching, producing and providing valuable technology service for LED Strip Light and LED Neon Flex.

We believe quality is the key to make customers stay, profession is the key to make good quality, and dedication makes profession. So NEDAR are dedicated to LED Strip Light and LED Neon Flex only but not produce everything. Concentration on this area helps us grow quickly and be professional, with the full knowledge and experience about it, we can free up the resources and concentration on improving our existing products and developing new ones.

In the past 10 years, our products pass EMC and LVD testing, IP68 testing, and get CE, ETL certificated from TUV, SGS and Intertek Company, that show our good quality and satisfied our customers. And in the process with these certifications, we also set up our own quality standard that makes us better quality controlled when get customized order.

Our vision is that concentration on manufacturing, global serviced and grows with customers. We hope to be your reliable partner for your lighting business.
