• Model NO.：4.81mm
• System Operating Platform：Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250X250mm
• Module Resolution：52X52dots
• Cabinet Size：500X1000X88mm
• Cabinet Resolution：104X208dots
• Screen Brightness：1300nits
• Refresh Rate：1920Hz
• Controller：Nova , Linsn
• Compliance：Ce , RoHS , CCC, ETL, FCC
• Service：Rear Service
• Grey Scale：16bit
• Transport Package：Flight Case
• Specification：500x1000x88mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

NO.ParameterSpecifications1ModelXII042Pixel Pitch(mm)4.813LEDSMD20204Screen Resolution43264dots/sqm5Scan Method1/136Module size250x250mm6Cabinet size(L*H*W)500x1000x88mm 7Cabinet(Kg)12kg8Viewing angleH:140° V:140°9Grey Scale16bit 10Refresh rate(HZ)≥192011Brightness(nits)≥130012AVE. power consumption (W/sqm)19813MAX. power consumption(W/sqm)58014IP gradeIP3315Working humidity10~90%RH16Input VoltageAC 110V-220V +/-10%17Frame requency50-60Hz18Working temperature-30ºC~60ºC19ComplianceCCC / CE / RoHS

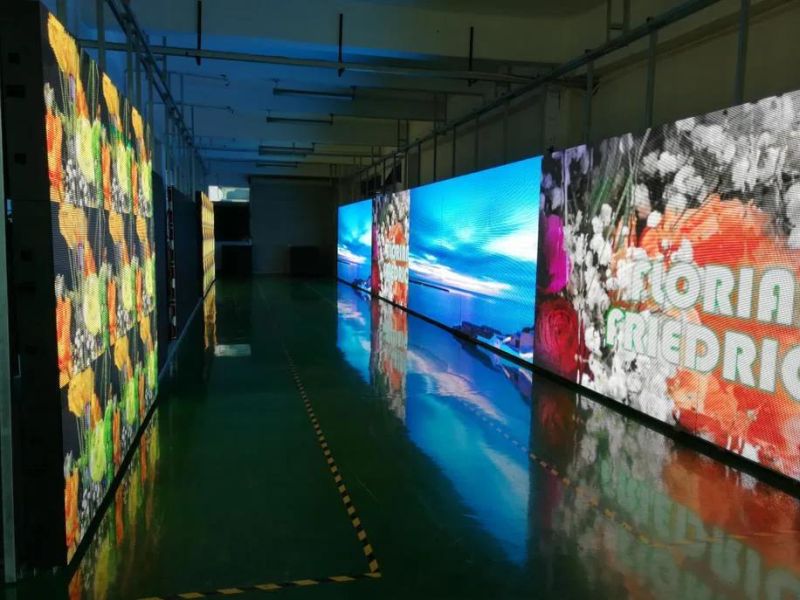

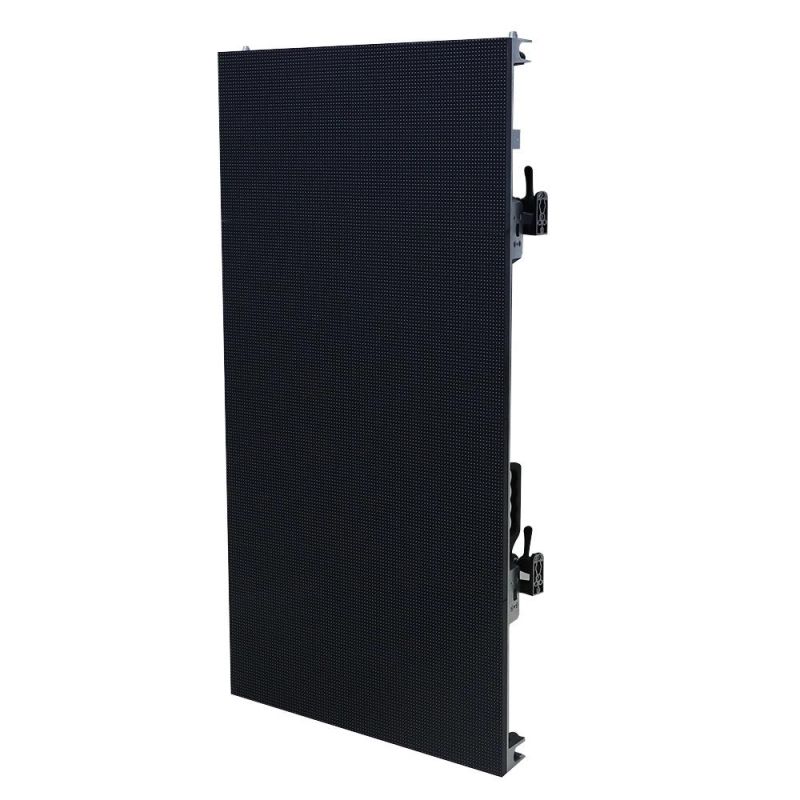

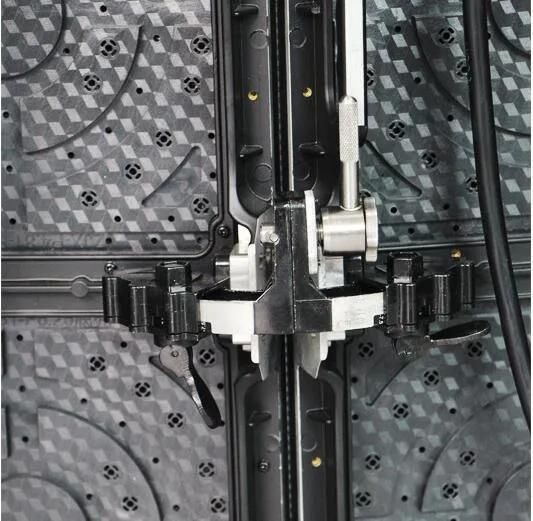

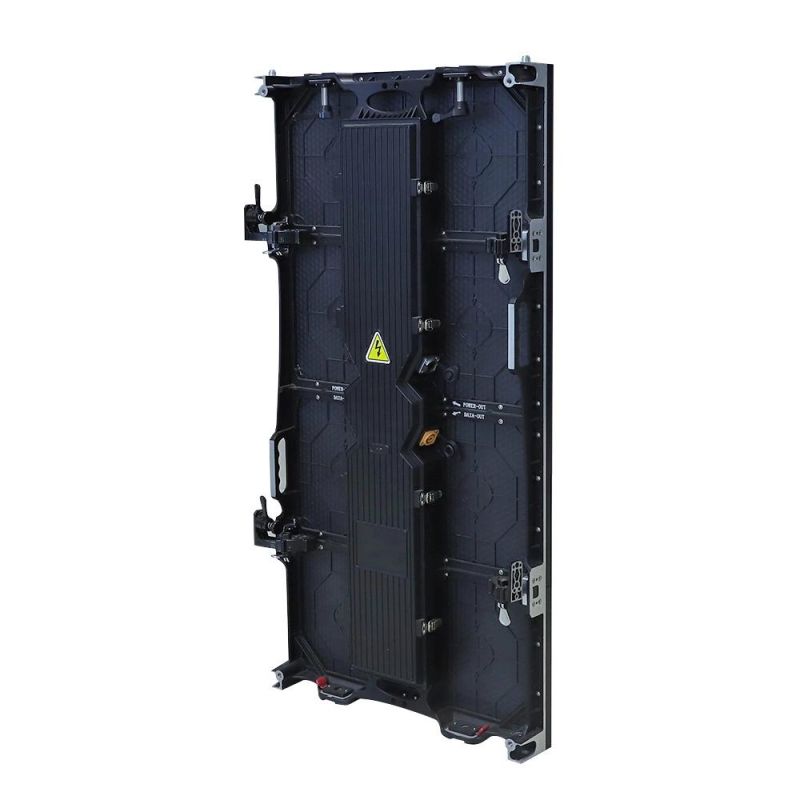

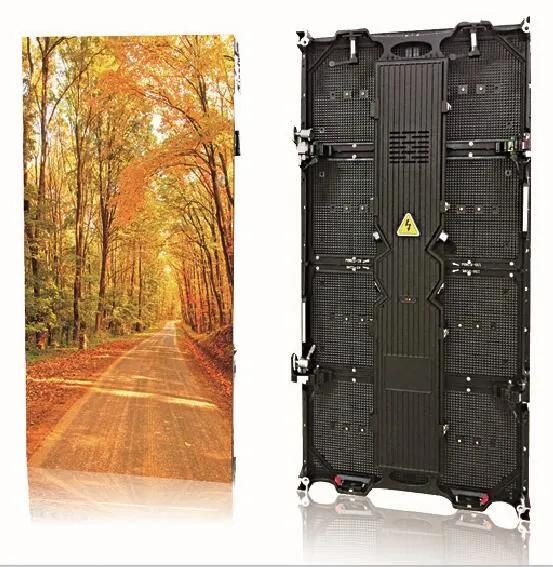

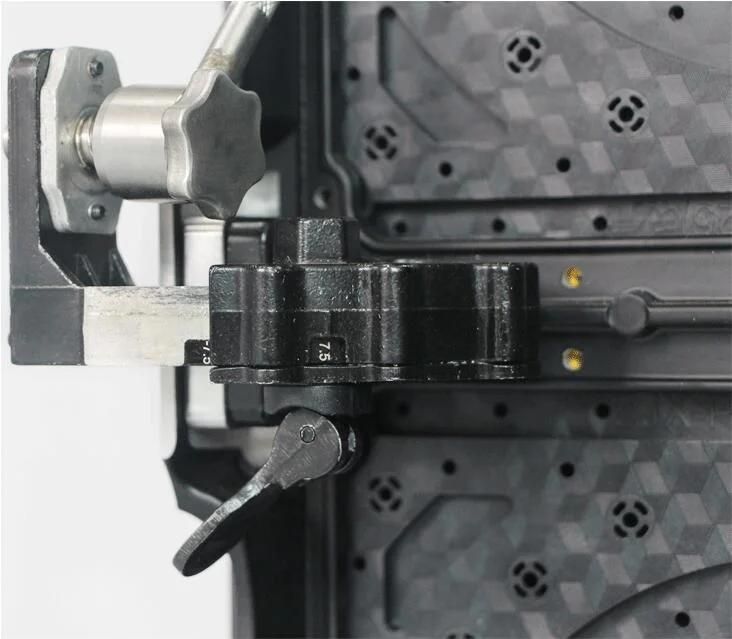

PRODUCT PHOTOS:













SERVICE:

Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design


In Producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients


After-service:

1. 2 years warranty
2. 1%  spares Will be freely provided
3. 7 days a week, 24 hours a day on-line service for any technical support for any customers
4. Free training for customers in factory
5. Local Partner Installation Service
