P6.25 Outdoor Rental Full Color LED Display Panel

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：6.25mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：275

Base Info

  • Model NO.：6.25mm
  • Pixel Density：25600dots,Sqm
  • Scanning Mode：1,7 Scan
  • Display Type：LED Video Display
  • Application：Stage Performance
  • Certification：CE, RoHS, UL, CCC
  • Module Size：250X250mm
  • Module Resolution：40X40dots
  • Cabinet Size：500X500X88mm
  • Cabinet Resolution：80X80X14dots
  • Screen Brightness：5500nits
  • Refresh Rate：1920Hz
  • Protection Grade：IP65
  • Compliance：Ce,CCC,RoHS
  • Transport Package：Flight Case
  • Specification：500x500x88mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ParameterSpecifications1ModelR62Pixel Pitch(mm)6.253LEDSMD35354Screen Resolution25600dots/sqm5Scan Method1/76Cabinet size(L*H*W)500x500x88mm 7Cabinet(Kg)7.8KG8Viewing angleH:140° V:140°9Grey Scale14bits10Refresh rate(HZ)≥192011Module size(mm)250*25012Brightness(nits)≥550013Working Voltage(V)AC 100~220V14AVE. power consumption (W/sqm)27515MAX. power consumption(W/sqm)70016IP gradeF:IP65 / R:IP5417controllerNova18Working humidity10~95%RH19Input VoltageAC 110V-220V +/-10%20Frame requency60Hz21Working temperature-30ºC~60ºC22ComplianceCCC /  CE/ RoHS

WORKSHOP:

P6.25 Outdoor Rental Full Color LED Display Panel

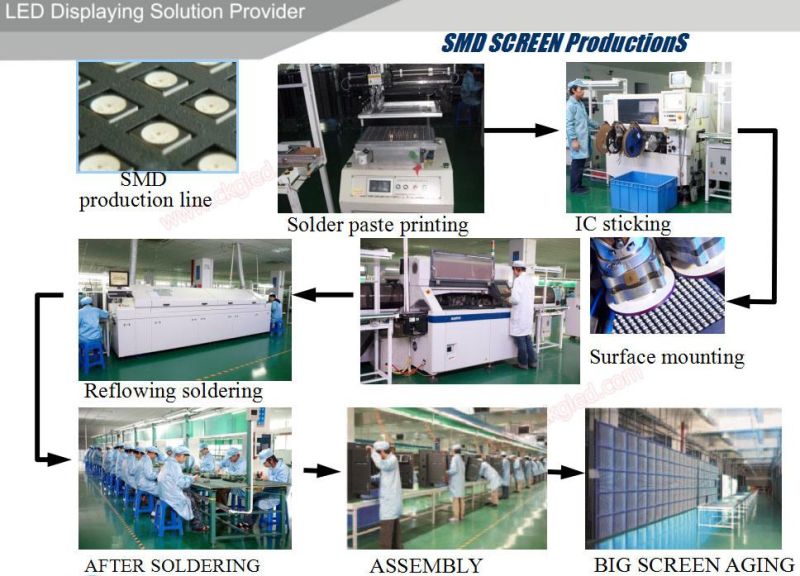

PROCESS:

P6.25 Outdoor Rental Full Color LED Display Panel

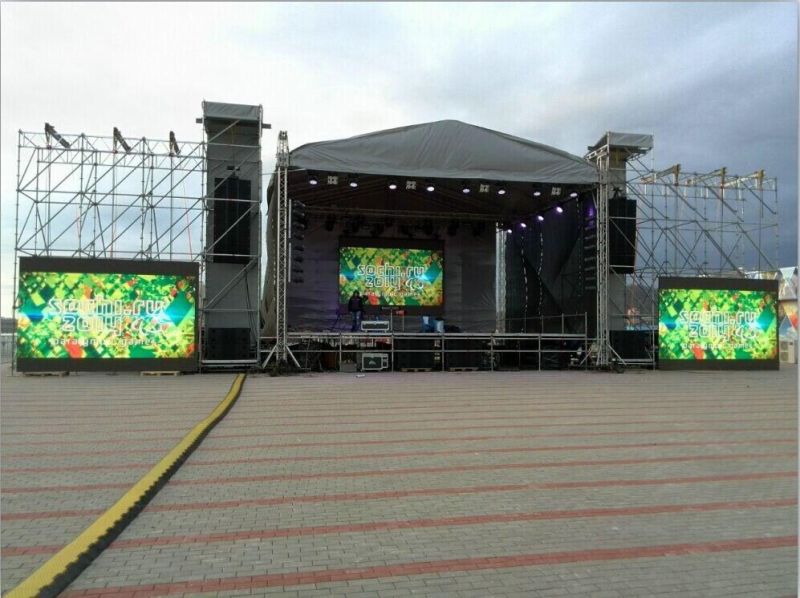

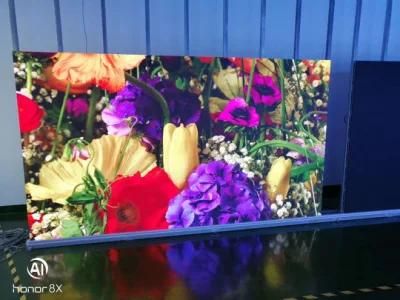

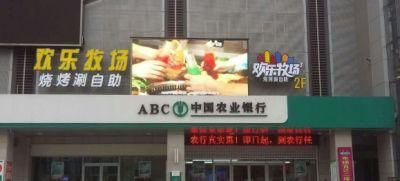

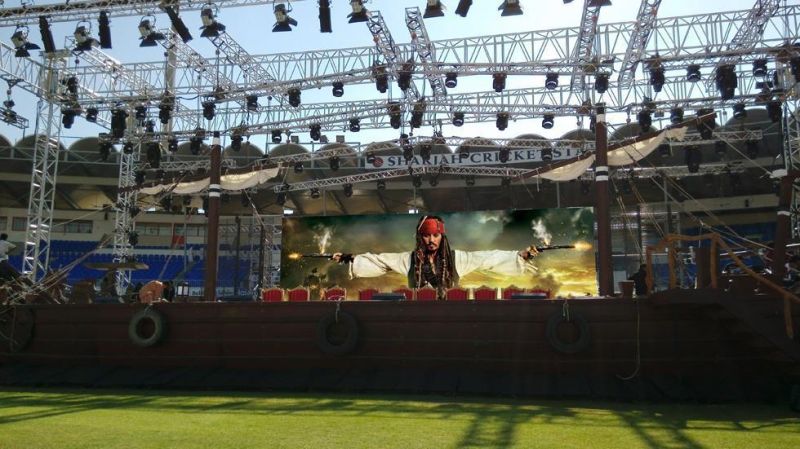

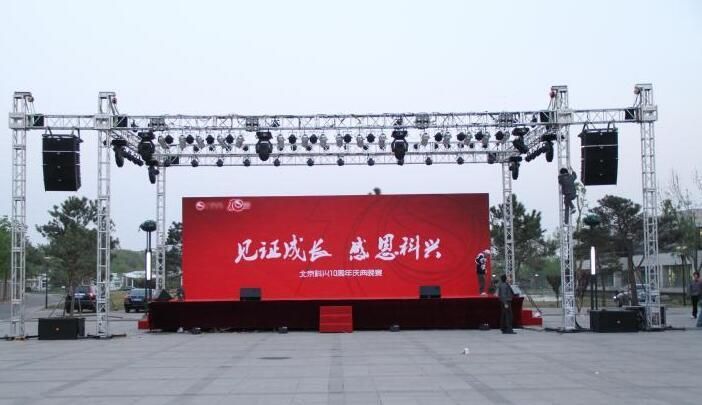

PRODUCT PHOTOS:

P6.25 Outdoor Rental Full Color LED Display Panel
P6.25 Outdoor Rental Full Color LED Display Panel
P6.25 Outdoor Rental Full Color LED Display PanelP6.25 Outdoor Rental Full Color LED Display Panel
P6.25 Outdoor Rental Full Color LED Display Panel


Certificates:

P6.25 Outdoor Rental Full Color LED Display Panel

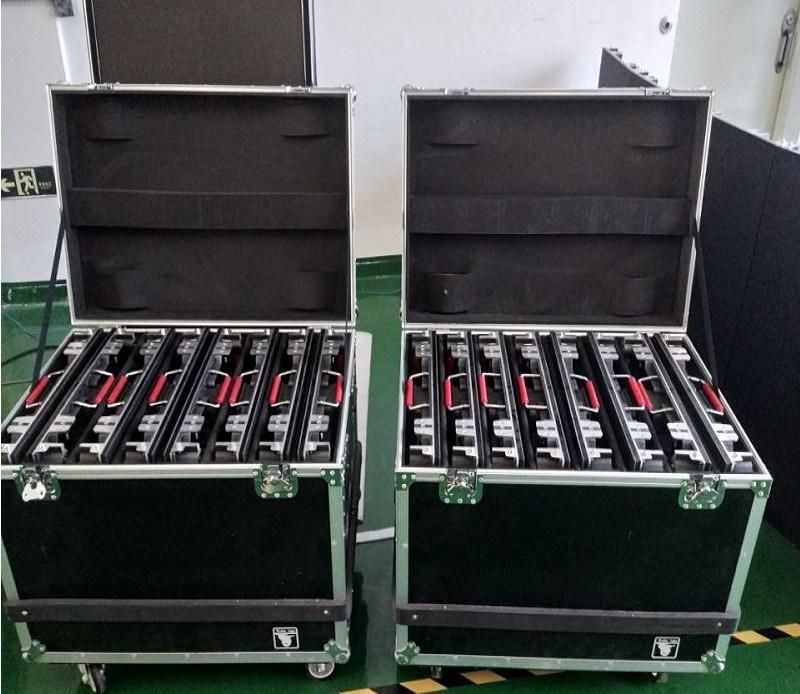

Package:

P6.25 Outdoor Rental Full Color LED Display Panel
