• Model NO.：WL-D
• Brand：Xinder
• Design：Single Post
• Model：Wl-D-880u
• Max Lifting Height：880mm
• Safety Capacity：350 Kg
• Plaftform Dimension：1150*720,1250*820mm
• Certificate：CE
• Volt：24V or 12V
• Operation：Electric and Hydraulic Control
• Own Weight：135kg
• Packing Size：1240*600*1400mm
• Gross Weight：185kg
• Transport Package：Wooden Case
• Specification：1150*720,1250*820mm
• Trademark：xinder
• Origin：China
• HS Code：8428909090
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. WL-D Brand Xinder Design Single Post Model Wl-D-880u Max Lifting Height 880mm Safety Capacity 350 Kg Plaftform Dimension 1150*720/1250*820mm Certificate CE Volt 24V or 12V Operation Electric and Hydraulic Control Own Weight 135kg Packing Size 1240*600*1400mm Gross Weight 185kg Transport Package Wooden Case Specification 1150*720/1250*820mm Trademark xinder Origin China HS Code 8428909090 Production Capacity 1000 Sets/Month

Product Description

Introductions:

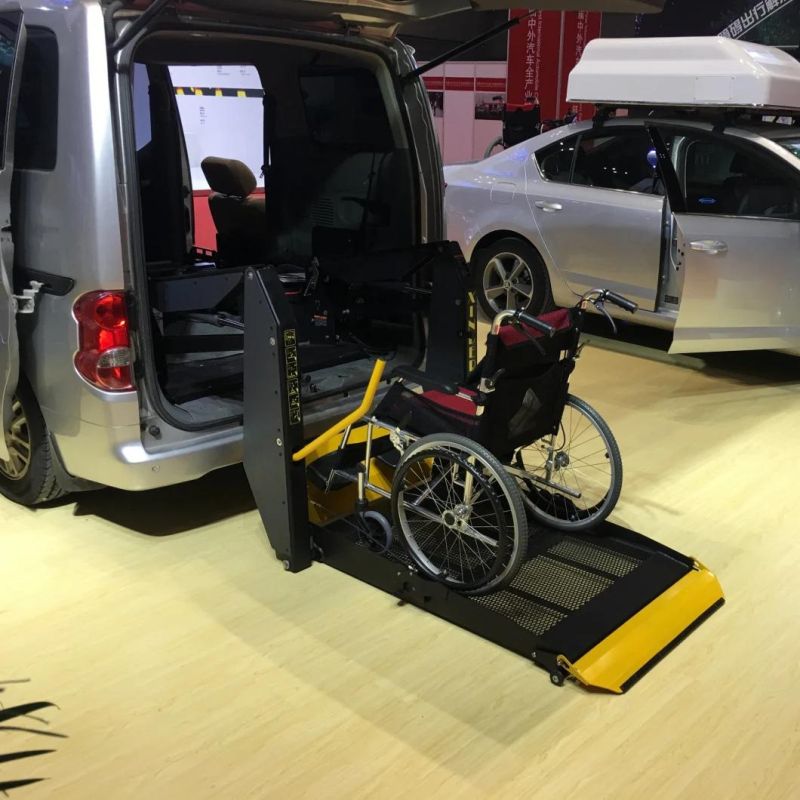

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

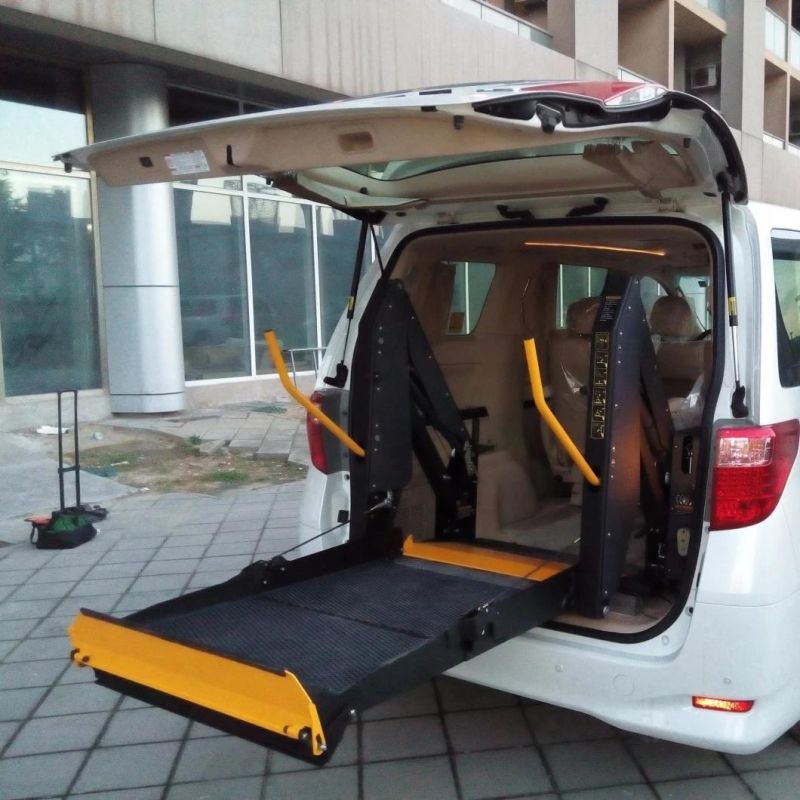

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

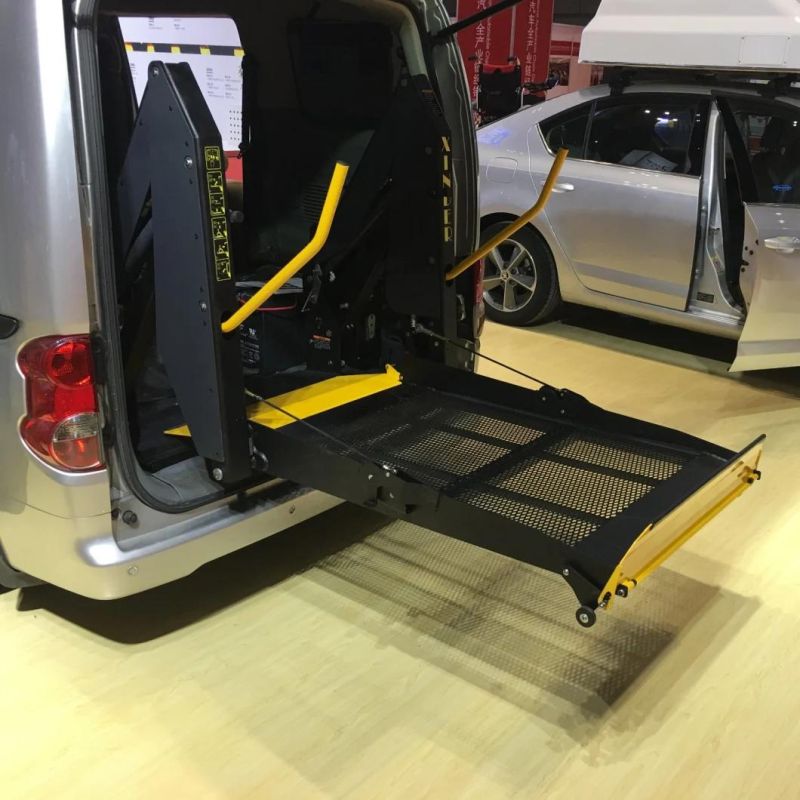

• DN-880U wheelchair lift has foldable platform;

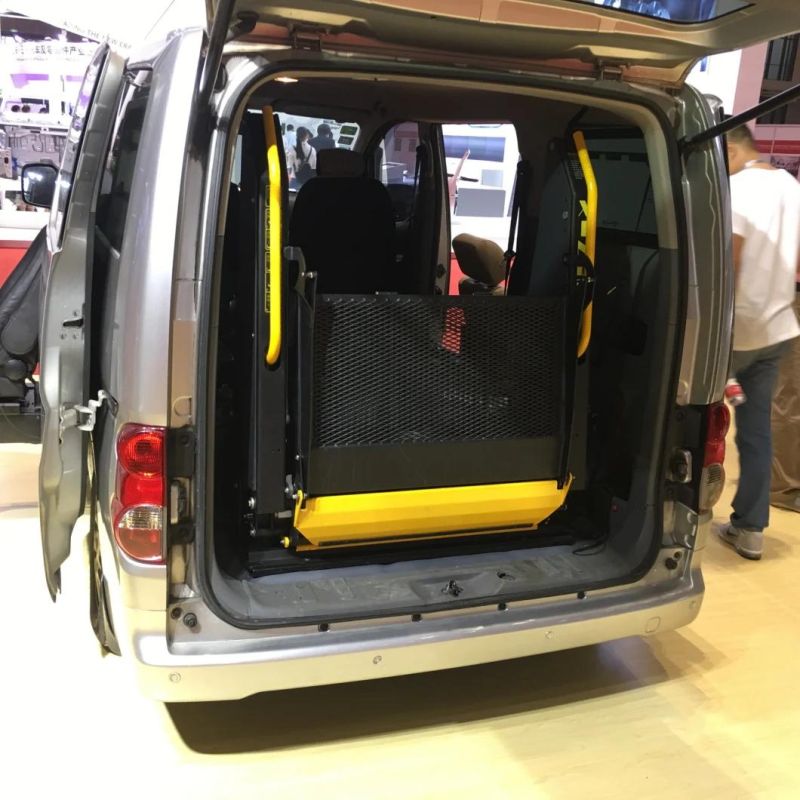

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:350kg;



Advantages:

• Foldable platform provides good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;
