Manual Unlock 2 Post Base Plate Auto Car Lift for Garage
Zhejiang Best Idea Promotion Items Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Thin Plate Type
Base Info
- Model NO.：RS235S
- Shearing Lift Type：2 Post Car Lift
- Condition：New
- Brand：Rising Sun
- Design：Two Post
- Product Name：Manual Unlock 2 Post Base Plate Auto Car Lift
- Max Lifting Height：1900mm
- Min Height：100mm
- Motor Power：2.2kw
- Oil Pressure：18MPa
- Lifting Time：50s
- Lowering Time：40s
- Power Supply：220-240V,380-415V,1,3pH,50,60Hz
- Color：Red,Blue,Grey,Customised
- Certificate：Ce
- Transport Package：2ctns, 580kgs, 1.25cbm
- Specification：base plate auto car lift
- Trademark：RSISING SUN
- Origin：China
- HS Code：84254290
- Production Capacity：400sets,Month
Description
Basic Info.
Model NO. RS235S Shearing Lift Type 2 Post Car Lift Condition New Brand Rising Sun Design Two Post Product Name Manual Unlock 2 Post Base Plate Auto Car Lift Max Lifting Height 1900mm Min Height 100mm Motor Power 2.2kw Oil Pressure 18MPa Lifting Time 50s Lowering Time 40s Power Supply 220-240V/380-415V,1/3pH,50/60Hz Color Red,Blue,Grey,Customised Certificate Ce Transport Package 2ctns, 580kgs, 1.25cbm Specification base plate auto car lift Trademark RSISING SUN Origin China HS Code 84254290 Production Capacity 400sets/MonthProduct Description
Manual Unlock 2 Post Base Plate Auto Car Lift for GarageSincerely looking for contracted distributor in different country,thanks for kind contacting !
Main feature
- Floor plate design,more suitable for low ceiling workshop.
- Double sides manual unlock release, double safe and reliable.
- Dual cylinder located in Master and slave column,high strength Chain drives system.
- Adopt Italy made high quality seals.
- Adopt qualitypower pack,more endurable,running safely and reliably.
- Complete back plate design , elegant appearance.
- Dynamic test:115% of the rated capacity.Static test 150% of rated capacity.
- Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle.Special hydraulic system design to avoid overload running.
- CE required 24V simple control box (optional).
Technic data
| Model | RS-235S |
| Lifting capacity | 4000kg |
| Min Lifting height | 100mm |
| Max. lifting height | 1900mm |
| Lifting time | 50s |
| Lowering time | 40s |
| Power supply | 220-240V/380-415V, 1/3PH,50HZ/60HZ |
| Oil pressure | 18Mpa |
| Motor power | 2.2kw |
| Overall width | 3410mm |
| Opening width | 2660mm |
| Overall height | 2826mm |
Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
Free parts will be sent by courier or post if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

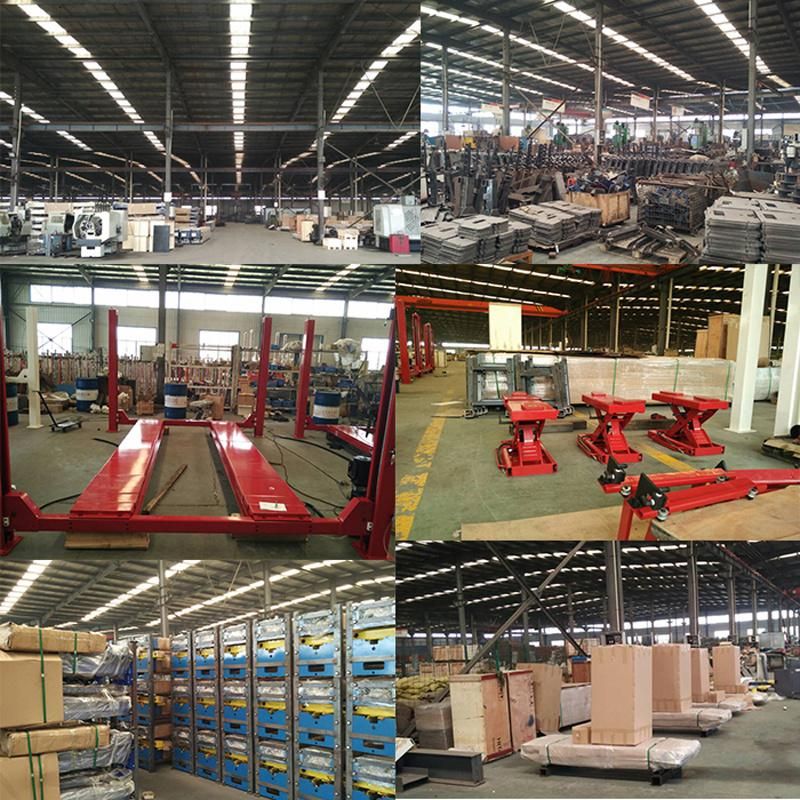

Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.
Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted
Honestly , we can give more safe of your business and money.
