• Model NO.：MN200-810
• Type：Circular Gear
• Diameter：up to 885mm
• Material：Cast Iron
• Manipulate Way：Robotics
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Advantage：Equivalent to Brevini Planetary Gear Reducer
• Transport Package：Plywooe Case or Steel Cage
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Model NO. MN200-810 Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Equivalent to Brevini Planetary Gear Reducer Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

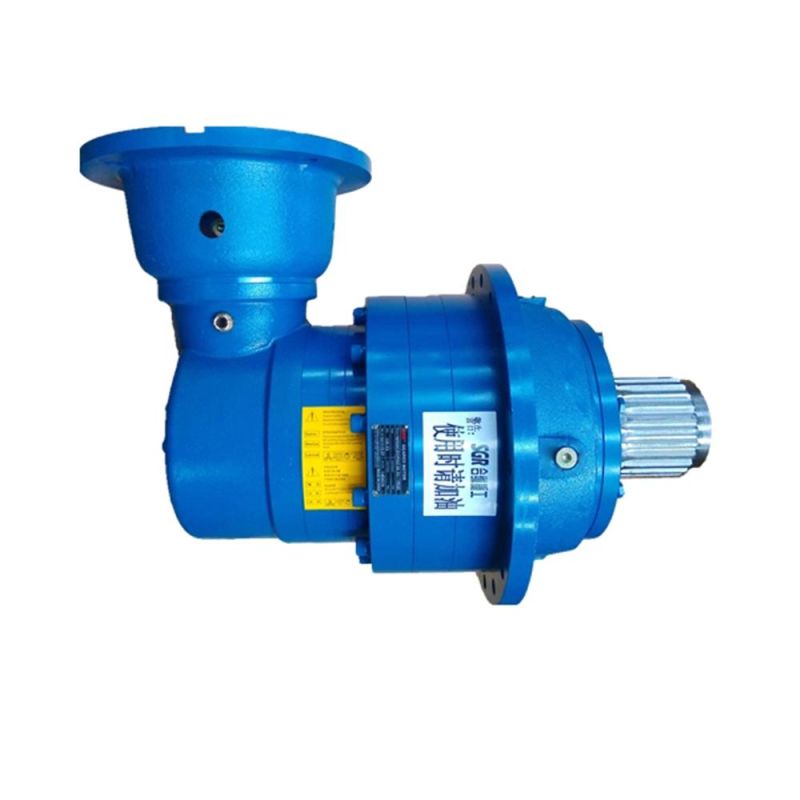

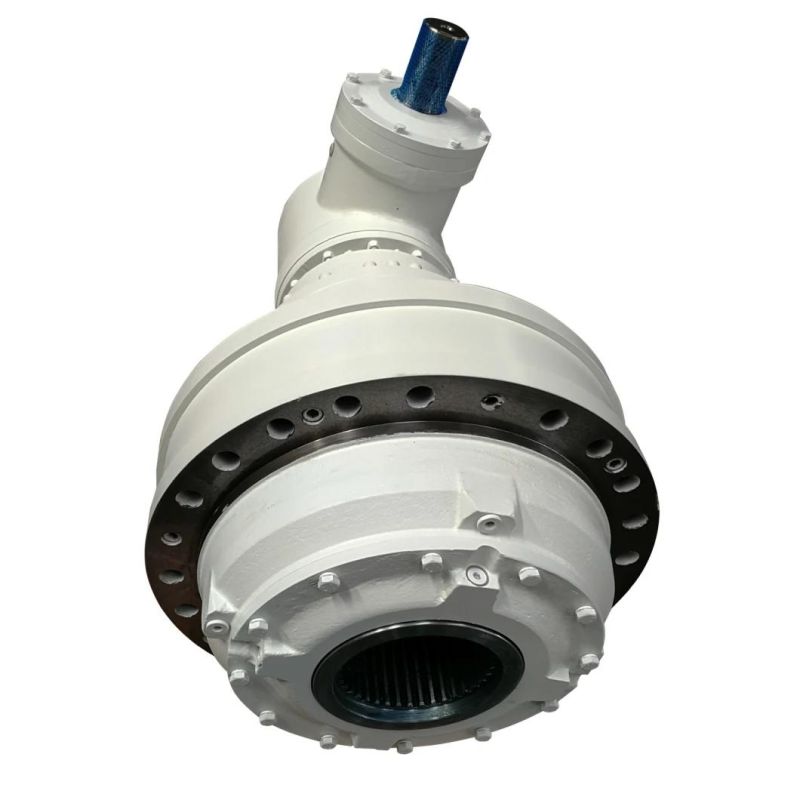

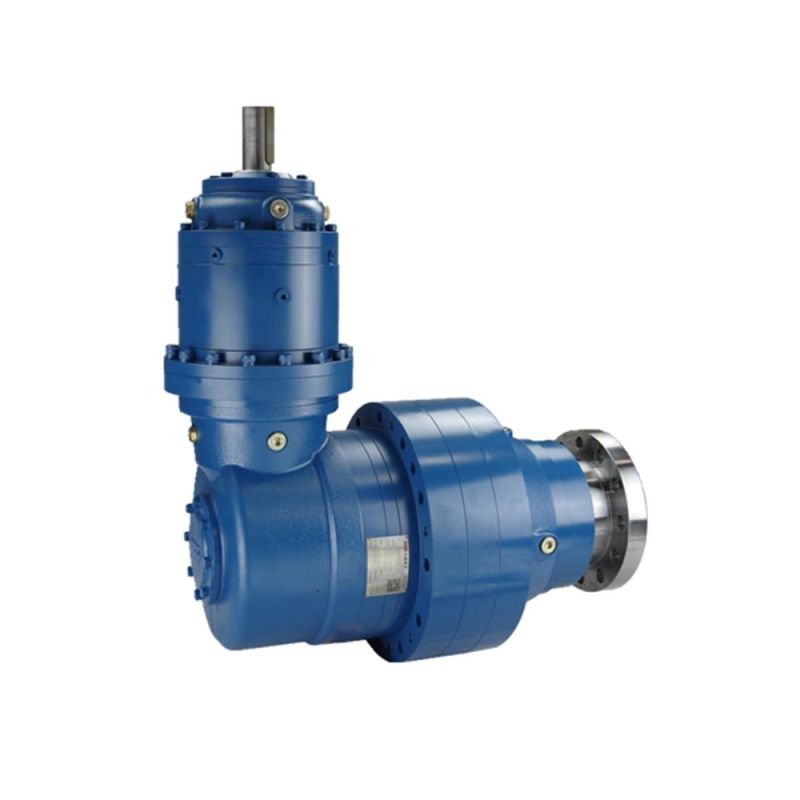

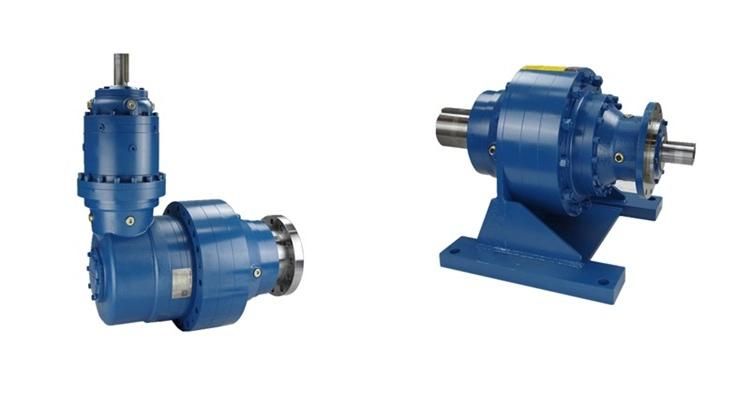

Right Angle Big Output Torque Gear Transmission  Planetary Speed Reducer


Characteristic of Brevini Planetary Gear Reducer :
1. The wide and comprehensive range of N series for industrial applications
2. Low-speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low-speed shaft bearing


N series planetary gearbox torque sheet with models


Gear unit size	200	201	240	241	280	281	353/354	355	400	401
Normal output torque T2N[Nm]	1500	2000	3500	4000	4300	7300	13000	16000	20000	23000
Gear unit size	428	429	445	446	510	542	543	695	810	885
Normal output torque T2N[Nm]	26000	30000	32000	43000	63000	75000	100000	150000	300000	420000
