Ce Approved Udl005 Udl Coaxial Stepless Reducer Variator Gearbox

Fujian Aoyou Electrical Co., Ltd.
  • Application：Motor, Machinery, Agricultural Machinery
  • Installation：Foot, Flange Mounted
  • Gear Shape：Helical
  • Step：Stepless
  • Type：Gear Reducer
  • Input Speed：1400rpm

Base Info

  • Model NO.：UDL005
  • Color：Blue or Others
  • Output Speed：800~170r,Min ,1000~200r,Min
  • Body Material：Aluminium or Iron Cast
  • Transport Package：Carton+Wooden Case
  • Trademark：kailida or OEM
  • Origin：China
  • HS Code：8483409000
  • Production Capacity：50000PCS,Year

Description

129 ~ 6435.9 ~ 2.20.255.9 ~ 3.0


Ce Approved Udl005 Udl Coaxial Stepless Reducer Variator Gearbox

ATTENTION!!!
It is forbidden to rotate the speed control knob on the idle variator !!!
It is forbidden to operate the variator in the extreme positions of the speed control handle !!!

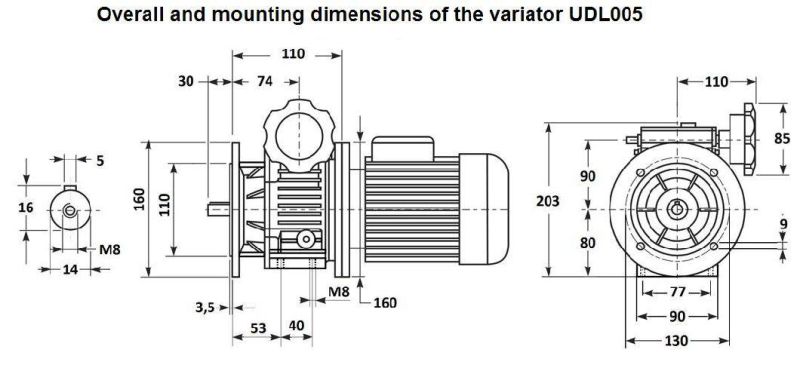

Connecting dimensions of the variator UDL 005 to the electric motor

Ce Approved Udl005 Udl Coaxial Stepless Reducer Variator Gearbox

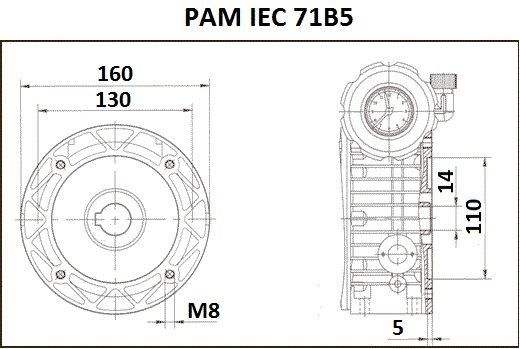

UDL variators  are only manufactured with a  large flange - B5.
