P5 Indoor Full Color LED Screen Panel/Display Video

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：5mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：40,000 dots , m²
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：5mm
  • System Operating Platform：Windows
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
  • IP Rating：IP31
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：320mmx160mm
  • Module Resolution：64X32dots
  • Cabinet Size：640X640mm
  • Cabinet Resolution：128X128dots
  • Screen Brightness：1500nits
  • Refresh Rate：1920Hz-3840Hz
  • Compliance：RoHS , Ce , CCC
  • Maintenance：Front, Rear Service
  • Controller：Nova, Linsn
  • Frame Frequency：60Hz
  • Transport Package：Plywood Case
  • Specification：640mmX640mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters1ModelV052Pixel Pitch(mm)53LED Configuration1R1G1B4LED TypeSMD20205Screen Resolution40000dots/sqm6Module size(mm)320x1607Module resolution(dots)64x328Scan method1/16constant current drive9Cabinet size(mm)640x64010Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥150013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)16017Max. power consumption(W/sqm)48018IP gradeIP3119controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

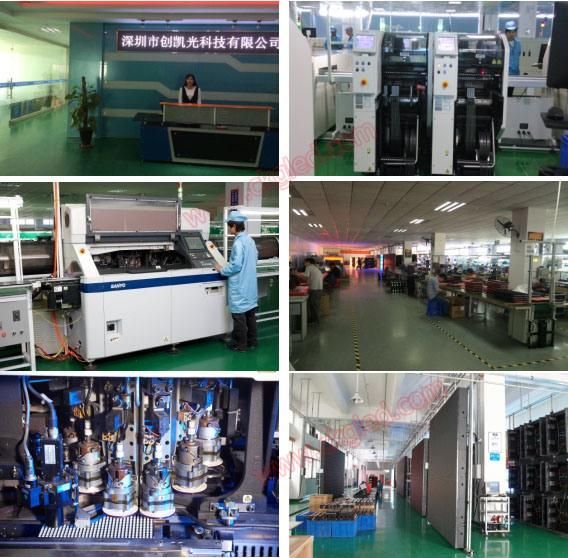

WORKSHOP:

P5 Indoor Full Color LED Screen Panel/Display Video

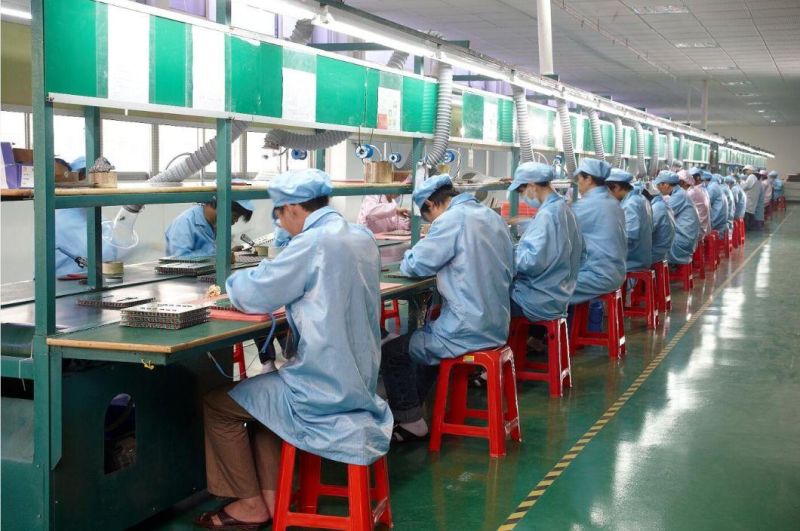

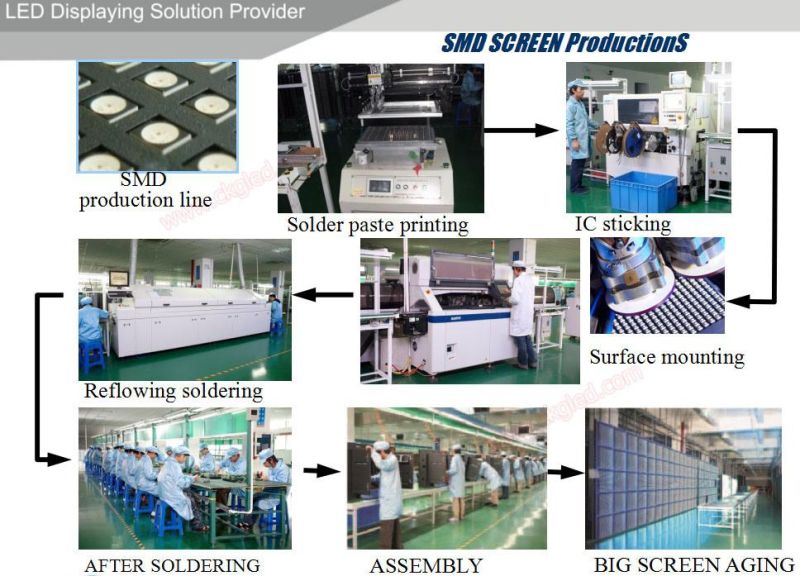

PROCESS:

P5 Indoor Full Color LED Screen Panel/Display Video

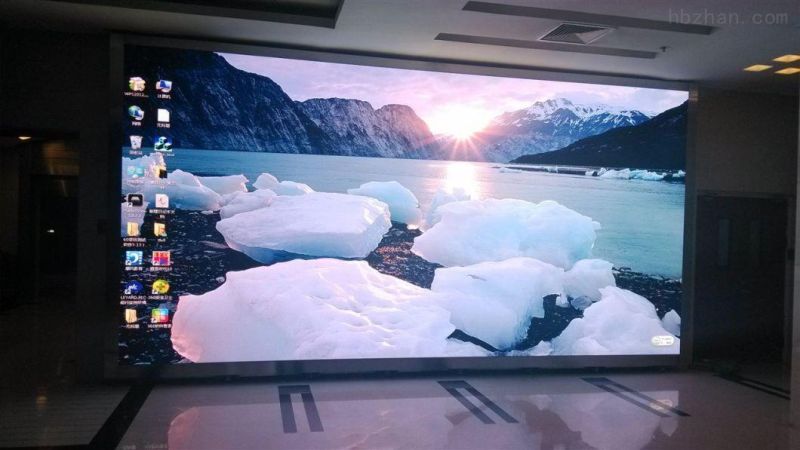

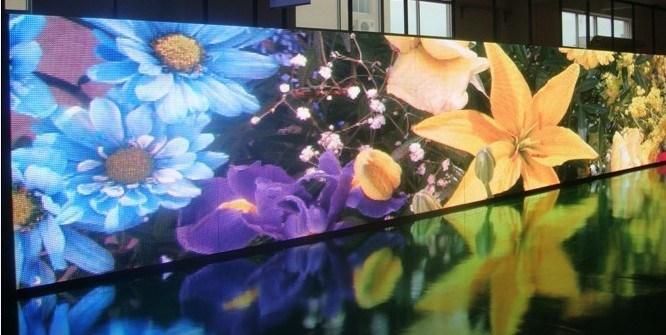

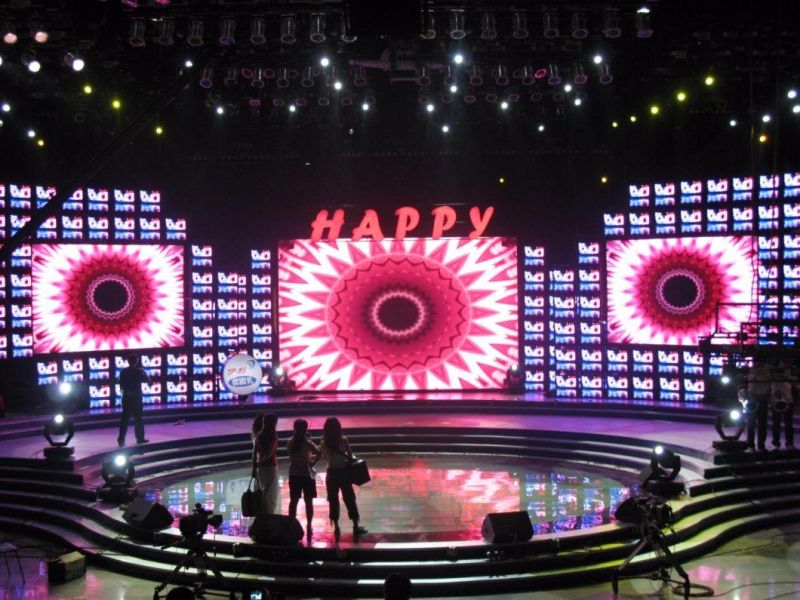

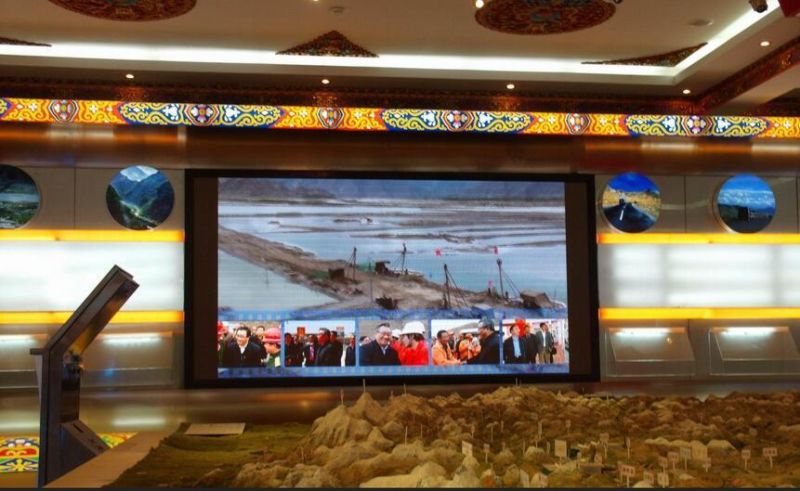

Product picture:

P5 Indoor Full Color LED Screen Panel/Display Video

P5 Indoor Full Color LED Screen Panel/Display Video
P5 Indoor Full Color LED Screen Panel/Display Video
P5 Indoor Full Color LED Screen Panel/Display Video
P5 Indoor Full Color LED Screen Panel/Display Video

Certificates:

P5 Indoor Full Color LED Screen Panel/Display Video

Package:

P5 Indoor Full Color LED Screen Panel/Display Video
