Ckgled P7.62mm LED Display Screen Indoor Panel Advertising

Danyang Yun Kai Metal Products
  • Tube Chip Color：Full Color
  • Display Function：Video Display
  • Pixel Pitch：7.62mm
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：17222dots,Sqm
  • Scanning Mode：1,16 Scan

Base Info

  • Model NO.：7.62mm
  • System Operating Platform：Windows
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide, Shopping Mall, Concerts, Shows and Event, Airport
  • IP Rating：IP33
  • Certification：CE, RoHS, UL, CCC, ETL
  • Module Size：244X244mm
  • Module Resolution：32X32dots
  • Cabinet Size：976X976mm
  • Cabinet Resolution：128X128dots
  • Screen Brightness：1300nits
  • Refresh Rate：1920Hz-3840Hz
  • Compliance：Ce
  • Maintenance：Front, Rear Service
  • Controller：Nova, Linsn
  • Frame Frequency：60Hz
  • Transport Package：Plywood Case ,Wooden Case
  • Specification：976x976mm
  • Trademark：CKGLED
  • Origin：China
  • HS Code：8528591090
  • Production Capacity：6000sqm,Month

Description

NO.ItemParameters1ModelV072Pixel Pitch(mm)7.623LED Configuration1R1G1B4LED TypeSMD35285Screen Resolution17222dots/sqm6Module size(mm)244x2447Module resolution(dots)32x328Scan method1/16 constant current drive9Cabinet size(mm)976x97610Cabinet resolution(dots)128x12811Cabinet materialIron / Aluminum12Brightness(cd/sqm)≥130013Viewing angleH:140°/ V:140°14Grey Scale14bit15Refresh rate(Hz)≥192016Ave. power consumption (W/sqm)17017Max. power consumption(W/sqm)42018IP gradeIP3319controllerNovastar / Linsn20MaintenanceRear service21Color(T)>4.422Input Voltage(V)AC 110V-220V +/-10%23Frame frequency(Hz)6024Working humidity10~90%RH25Working temperature-20ºC~50ºC26CertificatesRoHS / CE / CCC

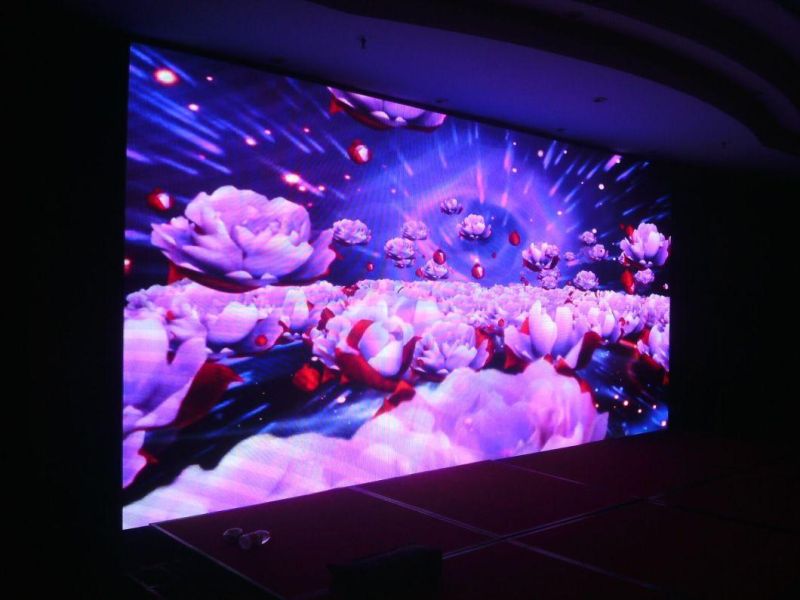

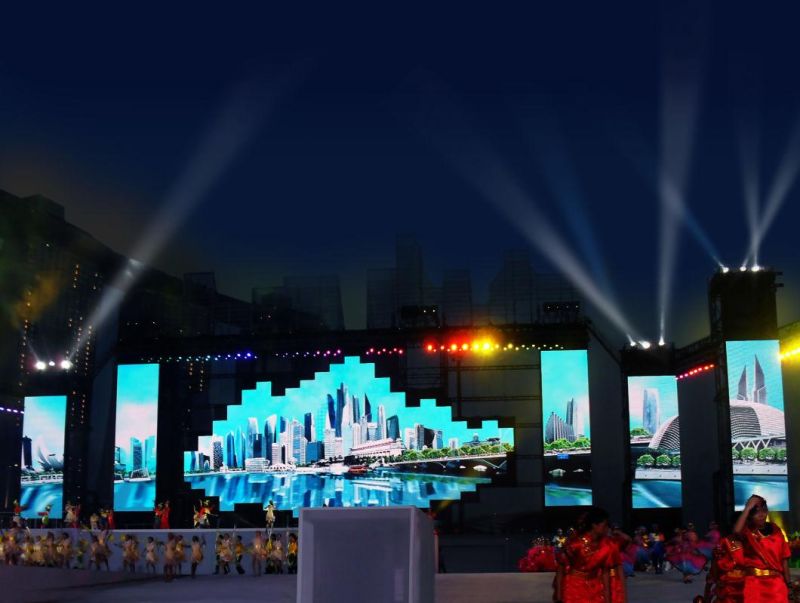

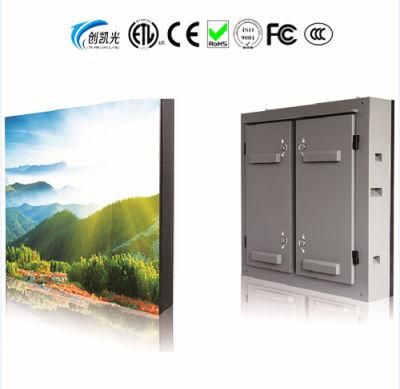

Prodect Photos:

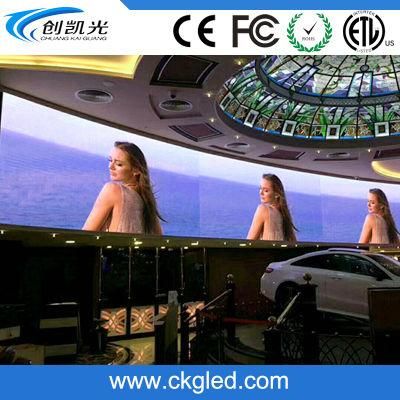

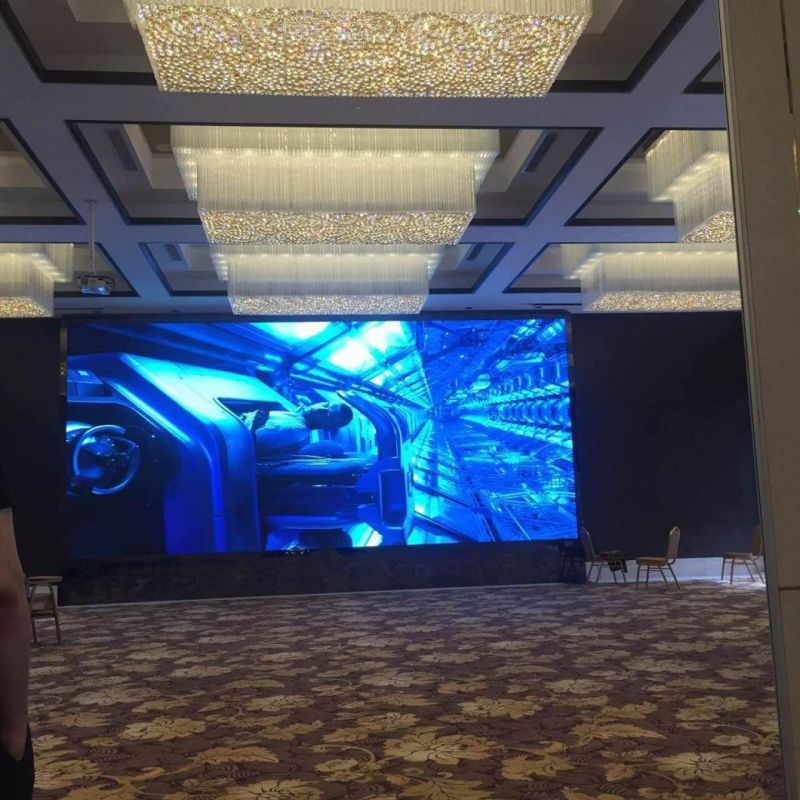

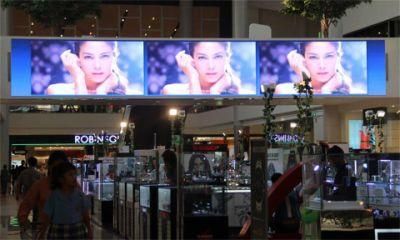

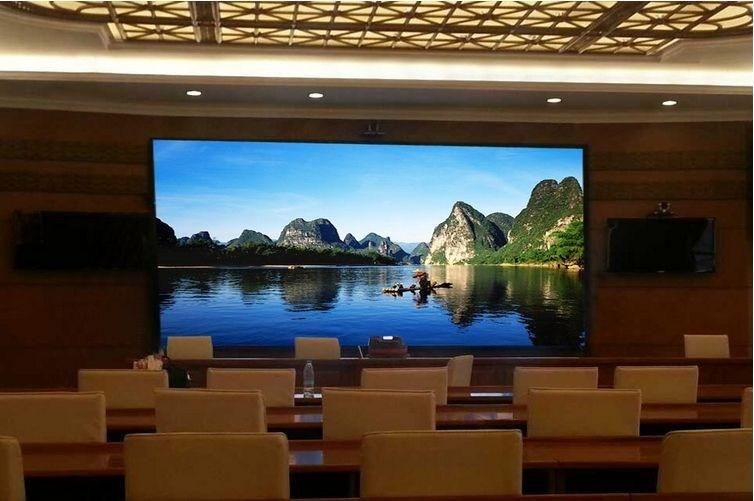

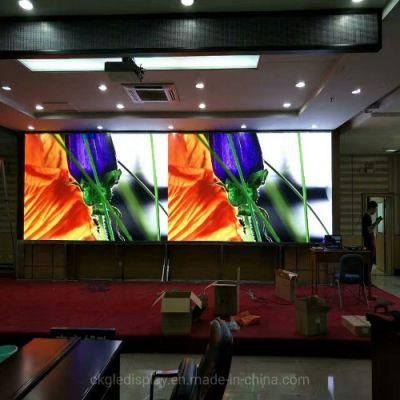

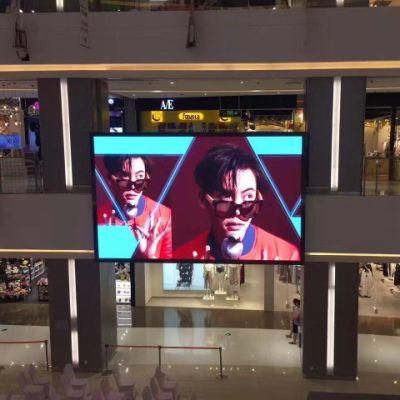

Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising
Ckgled P7.62mm LED Display Screen Indoor Panel Advertising

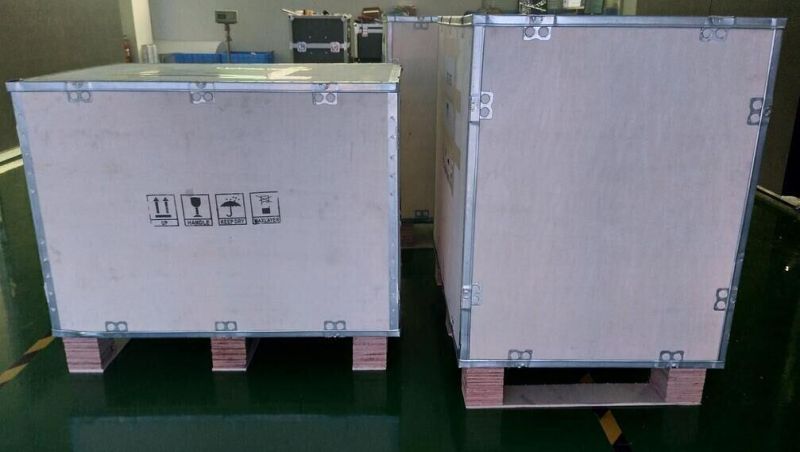

Package:

Ckgled P7.62mm LED Display Screen Indoor Panel Advertising

Certificates:

Ckgled P7.62mm LED Display Screen Indoor Panel Advertising

Other products:

Indoor fixed LED display:  P2.5,  P3,  P4,  P5,  P6,  P7.62,  P10

Indoor rental LED display: P3,  P4,  P5,  P6,  P10,  P3.91,  P4.81,  P6.25 ,

Outdoor fixed LED display:  P4,  P5,  P6,  P7.62,  P8,  P10

Outdoor rental LED display:  P4,  P5,  P6,  P8,  P10,  P6.667,  P3.91,  P4.81,  P5.95,  P6.25

Small pitch LED display:  P1.667,  P1.875,  P1.904,  P1.923,  P2.0, P2.5

Front service maintenance LED screen:  P10,   P16,  P20

Stadium perimeter LED screen:  P8,  P10,  P16
