• Model NO.：LM3528-WU120-CCT-24V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs：packaged by 99.99% pure gold wire
• BINs：3-Step,5-Step, same BIN for each order
• Chip Brand：Sanan(Epistar optional)
• PCB Width：8mm
• PCB：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll with Statie-Resistant Bag
• Specification：5000*8mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM3528-WU120-CCT-24V LED Supplier Honglitronic/Osram/Samsung LEDs packaged by 99.99% pure gold wire BINs 3-Step/5-Step, same BIN for each order Chip Brand Sanan(Epistar optional) PCB Width 8mm PCB Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll with Statie-Resistant Bag Specification 5000*8mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

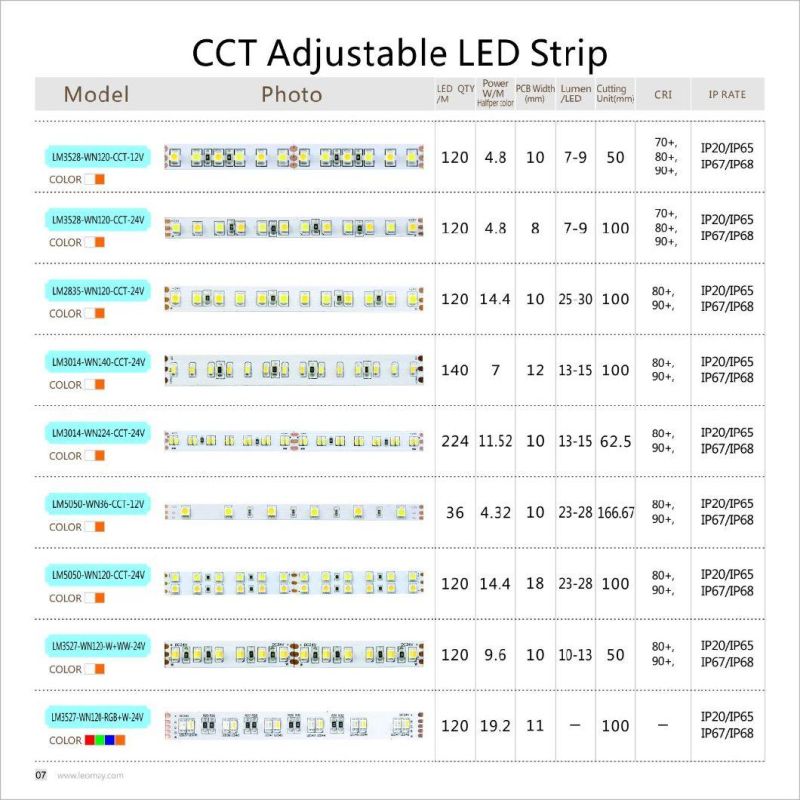

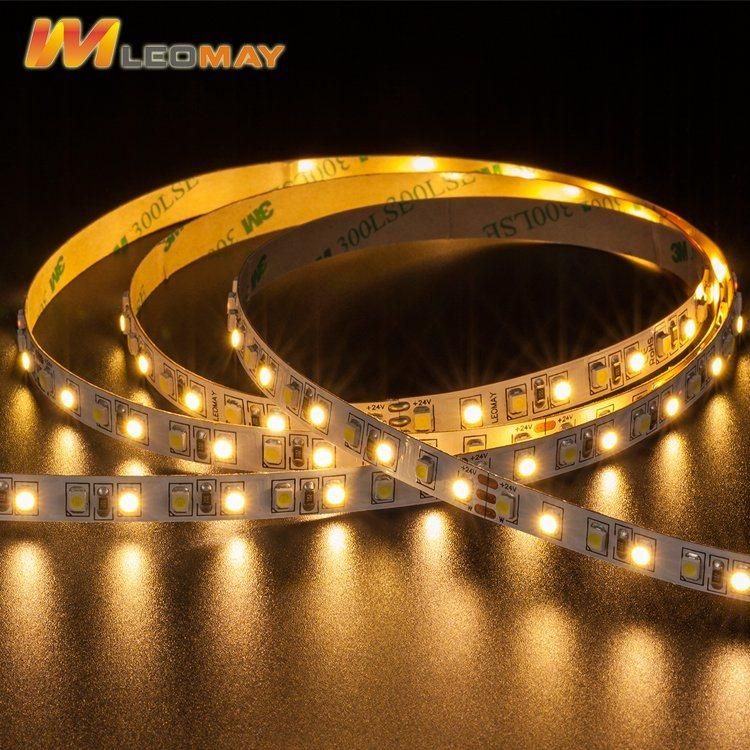

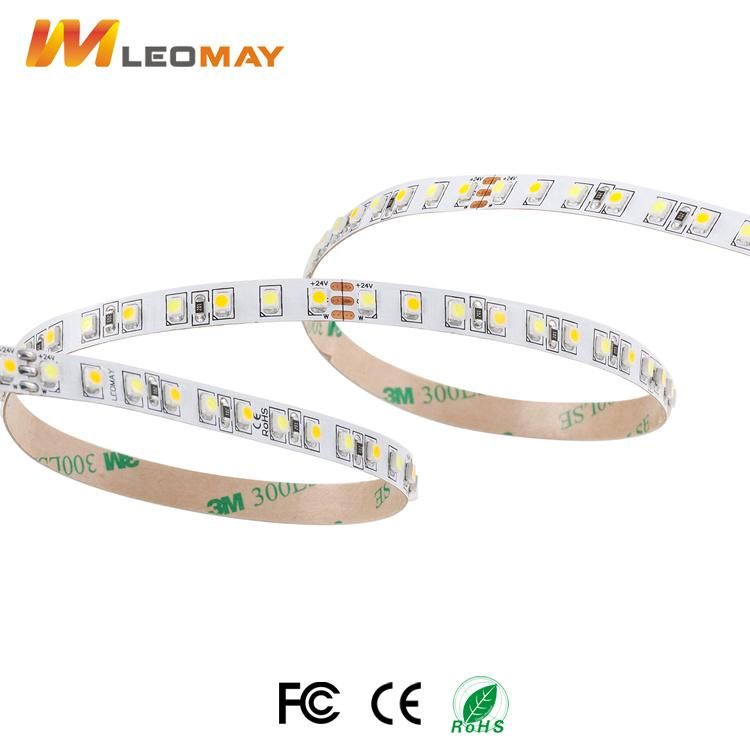

High Performance SMD3528 CCT 120LEDs/m Adjustable IP65 LED Strip Light

Model NO	LM3528-WN120-CCT-24V-8MM
Product Name	SMD3528 120LEDS/M CCT LED strips
PCB Width	8MM
LED Qty/m	120leds/m 3528
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	24V DC
Rated Power(W)	4.8W/M, 24W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	8*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features


1.Long life span standard warranty 2 years

2.Complete cut / connection accessories

3.Low power consumption

4.Custom packing

5.white and warm white interlaced arrangement

6.CCT can be adjusted, wider CCT range

7.Display several changing patterns with a controller and remote


Our services

1.We can help All our Customer in Instaling, Design, and Accessory Free.

2.Our all customer know: our Connector, Install Cips, Wires, is free with Orders.

3.Any questions when using , we always fast replys with the professional methods.

4.Shipping fast, especially when we know the Normal prodcuts you ordered often.

5.we will do stock produce.

6.We are Very Honest and Careful factory direct sell the products.

7.So All products is tested very good and Packing very strong.

8.We are will be Your Most professional And cheapest, Fastest Suppier


Certifications

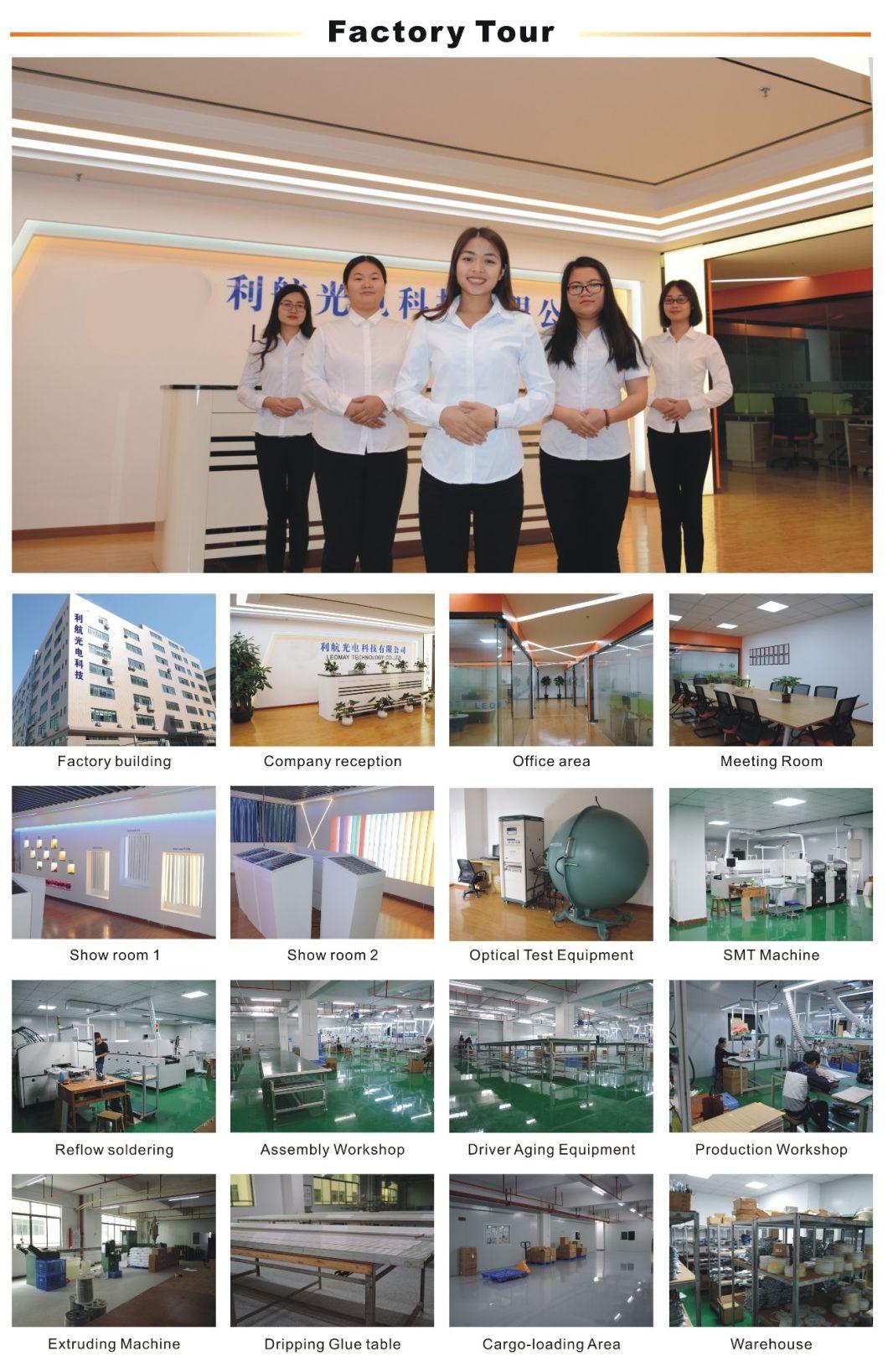

Our Company
 Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.

Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.



FAQ
 1) What are the best selling products in Leomay?

- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector


2) What is the main market for Leomay?

We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.


3) What is Leomay lead time for LED Strip?

Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.


4) Can Leomay do custom assembly or offer OEM product?

Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.


5) Do you have warranty for products?

Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.


6) How to buy Leomay products?

In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
